BDS809H | BDS Suspension 3 Inch Lift Kit For Toyota 4Runner / FJ Cruiser 4WD

For 2010-2024 Toyota 4Runner / 2007-2014 Toyota FJ Cruiser 4WD

BDS809H
Pricing: $729.74
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Raise up your 2010-2024 Toyota 4Runner and 2007-2014 Toyota FJ Cruiser and improve the ride with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 32" tires.

Specially designed for the 4Runner, this 3" lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. Up front the lift kit includes top mounted steel strut spacers. In the rear this kit utilizes custom tuned BDS Pro-Ride coil springs and rear sway bar links. With the new stance set, NX2 series nitro shocks are used to retain the ride quality and allow full articulation of the rear suspension.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Maintains factory like ride quality
  • Rear high strength progressive rate coil springs for a great ride on any terrain
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control

Recommended Tires & Wheels

(Trimming may be required)

  • 285 / 70 with 17 x 8 and 5 in. Backspace

Important Notes

  1. Strut compressor required for installation.
  2. Other equivalent tire/wheel size options should work - may require minor trimming for some combinations.
  3. Will not work on TRD Pro models equipped with the X-REAS shock system
  4. Will not work with factory KDSS sway bar system

Installation

Est. Install Time :

5 hrs

Difficulty Level :

Moderately Easy

Specification

  • Front Lift Method : Strut Spacer
  • Front Lift Height : 3"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 2"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2007ToyotaFJ CruiserALL4WDALL
2008ToyotaFJ CruiserALL4WDALL
2009ToyotaFJ CruiserALL4WDALL
2010Toyota4RunnerALL4WDALL
2010ToyotaFJ CruiserALL4WDALL
2011ToyotaFJ CruiserALL4WDALL
2011Toyota4RunnerALL4WDALL
2012ToyotaFJ CruiserALL4WDALL
2012Toyota4RunnerALL4WDALL
2013ToyotaFJ CruiserALL4WDALL
2013Toyota4RunnerALL4WDALL
2014ToyotaFJ CruiserALL4WDALL
2014Toyota4RunnerALL4WDALL
2015Toyota4RunnerALL4WDALL
2016Toyota4RunnerALL4WDALL
2017Toyota4RunnerALL4WDALL
2018Toyota4RunnerALL4WDALL
2019Toyota4RunnerALL4WDALL
2020Toyota4RunnerTRD ProALLALL
2020Toyota4RunnerTRD Off-Road PremiumALLALLFront and Rear3"
2020Toyota4RunnerNightshade4WDALL
2020Toyota4RunnerSR54WDALLFront and Rear3"
2020Toyota4RunnerVentureALLALL
2020Toyota4RunnerBaseALLALL
2020Toyota4RunnerSR5 Premium4WDALLFront and Rear3"
2020Toyota4RunnerTRD Off-RoadALLALLFront and Rear3"
2020Toyota4RunnerLimited4WDALLFront and Rear3"
2021Toyota4RunnerSR54WDALLFront and Rear3"
2021Toyota4RunnerTRD Off-Road PremiumALLALLFront and Rear3"
2021Toyota4RunnerTRD ProALLALL
2021Toyota4RunnerVentureALLALL
2021Toyota4RunnerTRD Off-RoadALLALLFront and Rear3"
2021Toyota4RunnerLimited4WDALLFront and Rear3"
2021Toyota4RunnerSR5 Premium4WDALLFront and Rear3"
2021Toyota4RunnerBaseALLALL
2021Toyota4RunnerTrail4WDALL
2021Toyota4RunnerNightshade4WDALL
2022Toyota4RunnerTRD Sport4WDALLFront and Rear3"
2022Toyota4RunnerNightshadeALLALL
2022Toyota4RunnerTRD ProALLALL
2022Toyota4RunnerTRD Off-Road PremiumALLALLFront and Rear3"
2022Toyota4RunnerLimited4WDALLFront and Rear3"
2022Toyota4RunnerSR54WDALLFront and Rear3"
2022Toyota4RunnerTRD Off-RoadALLALLFront and Rear3"
2022Toyota4RunnerSR5 Premium4WDALLFront and Rear3"
2022Toyota4RunnerVentureALLALL
2022Toyota4RunnerTrail4WDALL
2023Toyota4RunnerTRD Off-RoadALLALLFront and Rear3"
2023Toyota4RunnerTRD Off-Road PremiumALLALLFront and Rear3"
2023Toyota4RunnerTRD Sport4WDALLFront and Rear3"
2023Toyota4RunnerSR54WDALLFront and Rear3"
2023Toyota4RunnerSR5 Premium4WDALLFront and Rear3"
2023Toyota4RunnerLimited4WDALLFront and Rear3"
2024Toyota4RunnerLimited4WDALLFront and Rear3"
2024Toyota4RunnerTRD Off-Road PremiumALLALLFront and Rear3"
2024Toyota4RunnerSR5 Premium4WDALLFront and Rear3"
2024Toyota4RunnerTRD Off-RoadALLALLFront and Rear3"
2024Toyota4RunnerSR54WDALLFront and Rear3"
2024Toyota4RunnerTRD Sport4WDALLFront and Rear3"

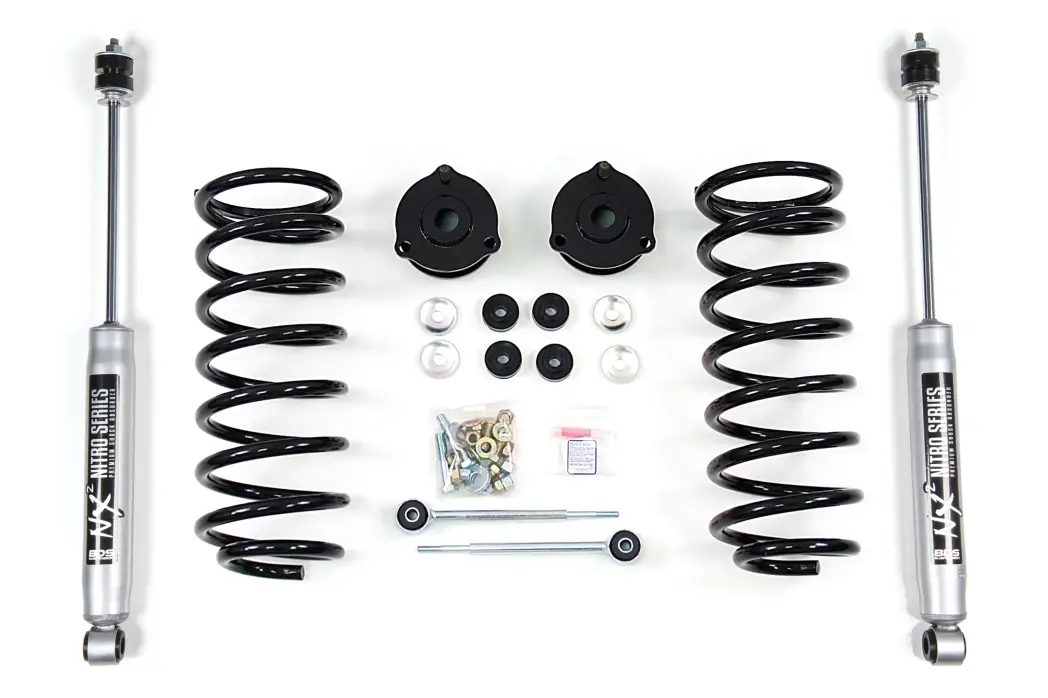

Component List

1 BDS018300 2010-2024 4 Runner / 2007-2014 FJ - 3" Spacer Box Kit
1 BDS038209 Coil Spring Box Kit: 2010-2024 Toyota 4 Runner / 2007-2014 FJ - 3" Rear Coil Springs
2 BDS85879 Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2

Tires & Wheels

(Trimming may be required)
33 x 12.5 with 17 x 9 and 4.5 in. Backspace
33 x 12.5 with 18 x 9 and 5 in. Backspace
33 x 12.5 with 20 x 9 and 5.75 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 60.0 lbs.
  • W29.0000” x H29.0000” x L30.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
