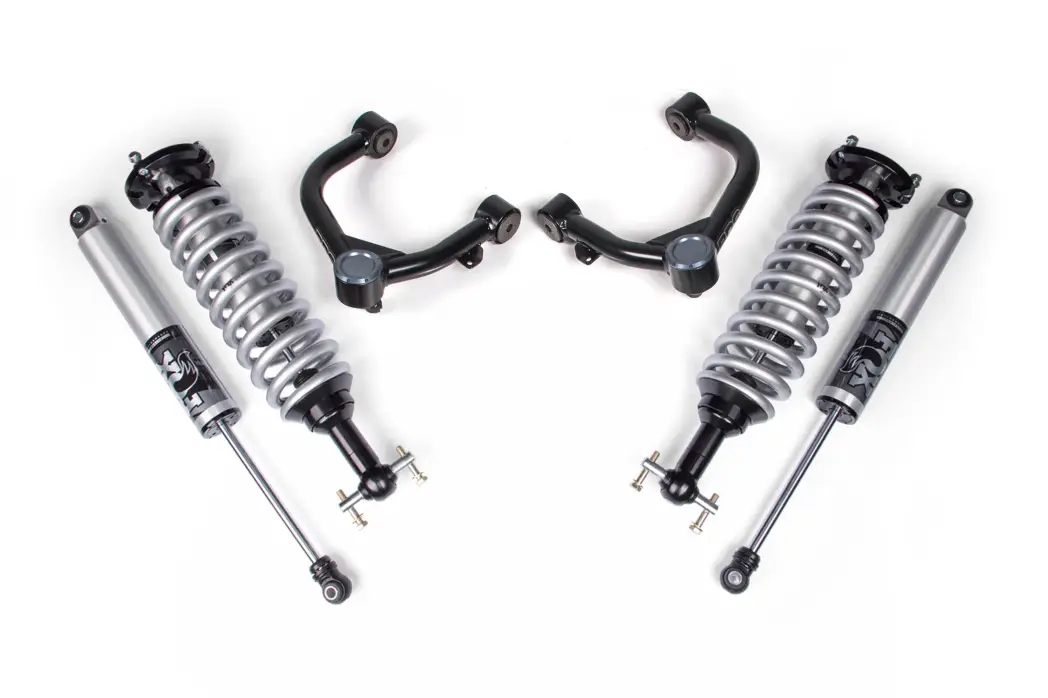

BDS772FPS | BDS Suspension 3.5 Inch Lift Kit With Fox 2.5 Performance Series Coilover For Chevrolet Silverado / GMC Sierra 1500 4WD

For 2019-2026 Chevrolet Silverado / GMC Sierra 1500 4WD

BDS772FPS
Pricing: $4,294.22
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The BDS 3.5" Lift kit for 2019–2024 GM 1500 trucks delivers a premium blend of improved stance, enhanced ride quality, and off-road capability. This system features heavy-duty BDS tubular upper control arms equipped with high-strength ball joints that are significantly stronger than OEM, reducing the risk of unwanted failures and ensuring long-term durability. The arms also optimize ball joint angles and increase suspension travel for reliable performance in demanding conditions. Up front, FOX 2.5 Performance Series coil-overs provide vehicle-specific tuning, exceptional cooling, and precise ride-height control to achieve a true 2" level while contributing to the kit’s superior ride comfort. Complementing the front, FOX 2.5 Performance Series rear shocks deliver balanced handling, fade-resistant performance, and enhanced stability on and off the road. The result is a durable, high-performance leveling solution that maintains factory-like drivability while offering a stronger, more aggressive stance and noticeably improved all-terrain ride quality.

Features & Benefits

  • BDS upper control arms which feature improved range of motion as well as increased strength over the OEM components.
  • FOX 2.5 Performance Series HTO coil over and shock absorber which improves ride, handling and towing versus the OEM suspension.

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 17 x 9 and 5.5 in. Backspace
  • 33 x 12.5 with 18 x 9 and 5.5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 5.5 in. Backspace

Important Notes

  1. 5.5" max wheel backspacing can be used
  2. Will fit Trail Boss/AT4 models however will net 1.5" of lift over factory ride height
  3. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
  4. Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
  5. Will not fit models equipped with ARC
  6. 2.7L Turbo models use Diesel kit for proper skid plate fitment.

Installation

Est. Install Time :

4 hrs

Difficulty Level :

Easy

Specialty Tools Needed :

Basic Hand Tools, Ball Joint Separation Tool

Specification

  • Front Lift Method : Coil-Over
  • Front Lift Height : 3.5"
  • Rear Lift Method : Block
  • Rear Lift Height : 2.5"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019ChevroletSilverado 1500LT4WDALLFront and Rear3.5"
2019ChevroletSilverado 1500LTZ4WDALLFront and Rear3.5"
2019ChevroletSilverado 1500WT4WDALLFront and Rear3.5"
2019GMCSierra 1500SLE4WDALLFront and Rear3.5"
2019ChevroletSilverado 1500Custom4WDALLFront and Rear3.5"
2019ChevroletSilverado 1500SSV4WDALLFront and Rear3.5"
2019ChevroletSilverado 1500RST4WDALLFront and Rear3.5"
2019GMCSierra 1500SLT4WDALLFront and Rear3.5"
2019GMCSierra 1500Base4WDALLFront and Rear3.5"
2020ChevroletSilverado 1500LTZ4WDALLFront and Rear3.5"
2020ChevroletSilverado 1500SSV4WDALLFront and Rear3.5"
2020GMCSierra 1500SLT4WDALLFront and Rear3.5"
2020ChevroletSilverado 1500WT4WDALLFront and Rear3.5"
2020GMCSierra 1500SLE4WDALLFront and Rear3.5"
2020GMCSierra 1500Base4WDALLFront and Rear3.5"
2020ChevroletSilverado 1500LT4WDALLFront and Rear3.5"
2020ChevroletSilverado 1500Custom4WDALLFront and Rear3.5"
2020ChevroletSilverado 1500RST4WDALLFront and Rear3.5"
2021ChevroletSilverado 1500LTZ4WDALLFront and Rear3.5"
2021ChevroletSilverado 1500LT4WDALLFront and Rear3.5"
2021GMCSierra 1500SLE4WDALLFront and Rear3.5"
2021ChevroletSilverado 1500WT4WDALLFront and Rear3.5"
2021ChevroletSilverado 1500Custom4WDALLFront and Rear3.5"
2021GMCSierra 1500SLT4WDALLFront and Rear3.5"
2021GMCSierra 1500Base4WDALLFront and Rear3.5"
2021ChevroletSilverado 1500SSV4WDALLFront and Rear3.5"
2021ChevroletSilverado 1500RST4WDALLFront and Rear3.5"
2022ChevroletSilverado 1500Custom4WDALLFront and Rear3.5"
2022GMCSierra 1500SLE4WDALLFront and Rear3.5"
2022GMCSierra 1500SLT4WDALLFront and Rear3.5"
2022ChevroletSilverado 1500WT4WDALLFront and Rear3.5"
2022ChevroletSilverado 1500LT4WDALLFront and Rear3.5"
2022ChevroletSilverado 1500LTZ4WDALLFront and Rear3.5"
2022GMCSierra 1500Pro4WDALLFront and Rear3.5"
2022ChevroletSilverado 1500RST4WDALLFront and Rear3.5"
2023GMCSierra 1500SLT4WDALLFront and Rear3.5"
2023ChevroletSilverado 1500Custom4WDALLFront and Rear3.5"
2023ChevroletSilverado 1500LT4WDALLFront and Rear3.5"
2023GMCSierra 1500Pro4WDALLFront and Rear3.5"
2023ChevroletSilverado 1500RST4WDALLFront and Rear3.5"
2023ChevroletSilverado 1500PPVALLALLFront and Rear3.5"
2023ChevroletSilverado 1500LTZ4WDALLFront and Rear3.5"
2023GMCSierra 1500SLE4WDALLFront and Rear3.5"
2023ChevroletSilverado 1500WT4WDALLFront and Rear3.5"
2024GMCSierra 1500SLE4WDALLFront and Rear3.5"
2024ChevroletSilverado 1500LT4WDALLFront and Rear3.5"
2024ChevroletSilverado 1500Custom4WDALLFront and Rear3.5"
2024ChevroletSilverado 1500PPVALLALLFront and Rear3.5"
2024GMCSierra 1500Pro4WDALLFront and Rear3.5"
2024GMCSierra 1500SLT4WDALLFront and Rear3.5"
2024ChevroletSilverado 1500LTZ4WDALLFront and Rear3.5"
2024ChevroletSilverado 1500WT4WDALLFront and Rear3.5"
2024ChevroletSilverado 1500RST4WDALLFront and Rear3.5"

Component List

1 BDS011350 2019-2024 Chevy/GMC 1500 Coilover 3.5" Box Kit
2 FOX98702004 2019-ON GM 1500, w/UCA, Frt Coilover, 2.5 PS, NO-TB/AT4 2.5-3.5", TB/AT4 .5-1.5"
2 FOX98724028 2019-ON GM 1500, Rear, 2.5 Truck PS, Non-TB/AT4 2.5-4" lift W/2" Bump Spacer, TB/AT4 0-2" Lift

Tires & Wheels

(Trimming may be required)
33 x 12.5 with 17 x 9 and 5.5 in. Backspace
33 x 12.5 with 18 x 9 and 5.5 in. Backspace
33 x 12.5 with 20 x 9 and 5.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
