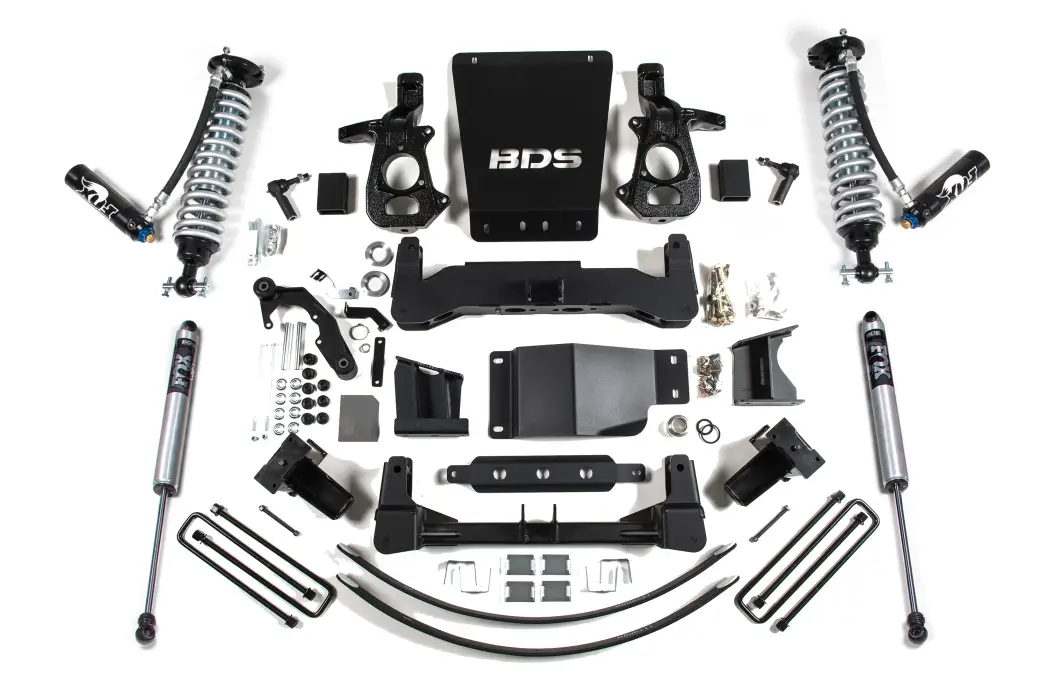

BDS743FDSC | BDS Suspension 8 Inch Lift Kit With Fox 2.5 Coilover DSC For Chevrolet Silverado / GMC Sierra 1500 4WD | Aluminum / Stamped Steel Factory Control Arm

For 2014-2018 Chevrolet Silverado / GMC Sierra 1500 4WD

BDS743FDSC
Pricing: $6,278.45
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Go big with the BDS 8-inch lift kit for your 2014-2018 Chevy Silverado and GMC Sierra 1500 resulting in one of a kind lifted truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. These kits feature proprietary FOX 2.5 coilover shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coilover shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

Features & Benefits

  • FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
  • 35 x 12.5 with 22 x 10 and 5.5 in. Backspace

FOX 2.5 Coilovers

FOX 2.5 coilovers offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coilovers are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

DSC Adjustment

FOX 2.5 coil-over DSC (dual speed compression) allow you adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Factory Control Arm Type

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Important Notes

  1. Requires frame bracket modification
  2. Requires differential modification to clear electric power steering components
  3. Vehicles came from the factory with several knuckle/control arm configurations requiring specific kit selections. Be sure to reference the important notes and images above to determine the correct control arm selection for you application.
  4. Will not fit MagnaRide magnetic ride control equipped models.
  5. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
  6. All wheel drive models require drive line modification.

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specification

  • Front Lift Method : Coil-Over
  • Front Lift Height : 8"
  • Rear Lift Method : Block
  • Rear Lift Height : 6"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2014ChevroletSilverado 1500LTZ4WDALL
2014ChevroletSilverado 1500WT4WDALL
2014ChevroletSilverado 1500High Country4WDALL
2014GMCSierra 1500ALL4WDALL
2014ChevroletSilverado 1500LT4WDALL
2015GMCSierra 1500ALL4WDALL
2015ChevroletSilverado 1500ALL4WDALL
2016ChevroletSilverado 1500Custom4WDALL
2016ChevroletSilverado 1500LT4WDALL
2016ChevroletSilverado 1500LTZ4WDALL
2016ChevroletSilverado 1500WT4WDALL
2016ChevroletSilverado 1500High Country4WDALL
2016ChevroletSilverado 1500LS4WDALL
2016ChevroletSilverado 1500SSV4WDALL
2016GMCSierra 1500ALL4WDALL
2017ChevroletSilverado 1500ALL4WDALL
2017GMCSierra 1500ALL4WDALL
2018GMCSierra 1500ALL4WDALL
2018ChevroletSilverado 1500ALL4WDALL

Component List

1 BDS021607 14-up Chevy 1500 8" Rear Box Kit
1 BDS021800 14-up Chevy 1500 Knuckle-DRV-stamp/alum
1 BDS021801 14-up Chevy 1500 Knuckle-PASS-stamp/alum
1 BDS021802 14-up Chevy 1500 8" Frt Box Kit 1of2
1 BDS021803 14-up Chevy 1500 8" Frt Box Kit 2of2
1 FOX88406227 Kit: BDS 07-18 GM 1500, 2.5 FRS, R/R, Front, C/O, 8" Lift, DSC
2 FOX98224761 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.5 in. Backspace
35 x 12.5 with 22 x 10 and 5.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
