BDS733PSS | BDS Suspension 4 Inch Lift Kit With Fox 2.5 Performance Elite Coilover For Chevrolet Suburban, Tahoe / GMC Yukon / XL 1500 4WD | Cast Steel Factory Control Arm
For 2015-2019 Chevrolet Suburban, Tahoe / GMC Yukon / XL 1500 4WD
Description
Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
Features & Benefits
- Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
- The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
- High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection Multipoint differential relocation brackets to secure the front axle and improve CV angles
- FOX performance series IFP gas rear shocks to improved ride and offroad performance
- Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
- 32 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 33 x 12.5 with 18 x 9 and 5 in. Backspace
- 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy-duty 1/4-inch-thick laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new, taller ride height using a pair of high-strength, CNC-machined, ductile cast-iron steering knuckles designed to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Factory Control Arm Type
*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.
Important Notes
- *IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.
- Requires frame bracket modification. 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
- AWD models may require front driveline modification
- Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference.
- Will not work with auto-ride or Magna-ride equipped vehicles.
Installation
Est. Install Time :
8-10 hrsDifficulty Level :
DifficultSpecialty Tools Needed :
Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding EquipmentSpecification
- Front Lift Method : Cross Member & Coil-Over
- Front Lift Height : 4"
- Rear Lift Method : Coil Spacer
- Rear Lift Height : 3"
- Shocks Included : Yes
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2015 | Chevrolet | Tahoe | ALL | 4WD | ALL | Front and Rear | 4" |
| 2015 | Chevrolet | Suburban | ALL | 4WD | ALL | Front and Rear | 4" |
| 2015 | GMC | Yukon XL | ALL | 4WD | ALL | Front and Rear | 4" |
| 2015 | GMC | Yukon | ALL | 4WD | ALL | Front and Rear | 4" |
| 2016 | GMC | Yukon XL | ALL | 4WD | ALL | Front and Rear | 4" |
| 2016 | Chevrolet | Tahoe | SSV | ALL | ALL | Front and Rear | 4" |
| 2016 | Chevrolet | Tahoe | PPV | 4WD | ALL | Front and Rear | 4" |
| 2016 | Chevrolet | Suburban | LT | 4WD | ALL | Front and Rear | 4" |
| 2016 | Chevrolet | Tahoe | LTZ | 4WD | ALL | Front and Rear | 4" |
| 2016 | Chevrolet | Tahoe | LT | 4WD | ALL | Front and Rear | 4" |
| 2016 | GMC | Yukon | ALL | 4WD | ALL | Front and Rear | 4" |
| 2016 | Chevrolet | Suburban | LTZ | 4WD | ALL | Front and Rear | 4" |
| 2016 | Chevrolet | Suburban | LS | 4WD | ALL | Front and Rear | 4" |
| 2016 | Chevrolet | Tahoe | LS | 4WD | ALL | Front and Rear | 4" |
| 2017 | Chevrolet | Tahoe | SSV | ALL | ALL | Front and Rear | 4" |
| 2017 | Chevrolet | Tahoe | PPV | 4WD | ALL | Front and Rear | 4" |
| 2017 | Chevrolet | Suburban | LT | 4WD | ALL | Front and Rear | 4" |
| 2017 | GMC | Yukon | ALL | 4WD | ALL | Front and Rear | 4" |
| 2017 | Chevrolet | Tahoe | LS | 4WD | ALL | Front and Rear | 4" |
| 2017 | Chevrolet | Tahoe | Premier | 4WD | ALL | Front and Rear | 4" |
| 2017 | Chevrolet | Suburban | Premier | 4WD | ALL | Front and Rear | 4" |
| 2017 | GMC | Yukon XL | ALL | 4WD | ALL | Front and Rear | 4" |
| 2017 | Chevrolet | Suburban | LS | 4WD | ALL | Front and Rear | 4" |
| 2017 | Chevrolet | Tahoe | LT | 4WD | ALL | Front and Rear | 4" |
| 2018 | Chevrolet | Tahoe | Premier | 4WD | ALL | Front and Rear | 4" |
| 2018 | Chevrolet | Tahoe | PPV | 4WD | ALL | Front and Rear | 4" |
| 2018 | GMC | Yukon | ALL | 4WD | ALL | Front and Rear | 4" |
| 2018 | GMC | Yukon XL | ALL | 4WD | ALL | Front and Rear | 4" |
| 2018 | Chevrolet | Tahoe | LS | 4WD | ALL | Front and Rear | 4" |
| 2018 | Chevrolet | Suburban | Premier | 4WD | ALL | Front and Rear | 4" |
| 2018 | Chevrolet | Suburban | LT | 4WD | ALL | Front and Rear | 4" |
| 2018 | Chevrolet | Tahoe | SSV | ALL | ALL | Front and Rear | 4" |
| 2018 | Chevrolet | Suburban | LS | 4WD | ALL | Front and Rear | 4" |
| 2018 | Chevrolet | Tahoe | LT | 4WD | ALL | Front and Rear | 4" |
| 2019 | Chevrolet | Suburban | ALL | 4WD | ALL | Front and Rear | 4" |
| 2019 | Chevrolet | Tahoe | PPV | 4WD | ALL | Front and Rear | 4" |
| 2019 | Chevrolet | Tahoe | Premier | 4WD | ALL | Front and Rear | 4" |
| 2019 | GMC | Yukon XL | ALL | 4WD | ALL | Front and Rear | 4" |
| 2019 | Chevrolet | Tahoe | SSV | ALL | ALL | Front and Rear | 4" |
| 2019 | Chevrolet | Tahoe | LT | 4WD | ALL | Front and Rear | 4" |
| 2019 | GMC | Yukon | ALL | 4WD | ALL | Front and Rear | 4" |
| 2019 | Chevrolet | Tahoe | LS | 4WD | ALL | Front and Rear | 4" |

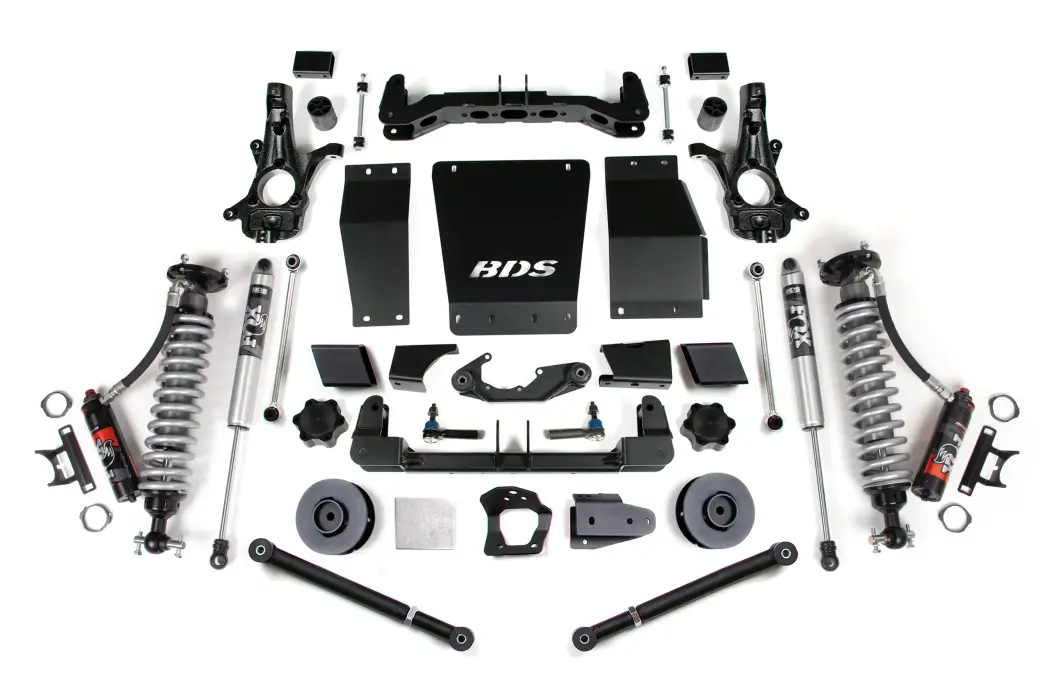

Component List
1 BDS021462 2014-2018 GM 1500, 2015-2019 GM SUV - 4" Front Box Kit (1of2)
1 BDS021660 2014-2018 GM 1500, 2015-2019 GM SUV - Front Knuckle Box Kit - Cast Steel
1 BDS021663 2014-2018 GM 1500, 2015-2020 GM SUV - Front Box Kit (2 of 2)
1 FOX88406533 Kit: BDS 07-18 GM 1500, Front Coilover, 2.5 Truck PES, R/R, 4”, Lift, DSC
2 FOX98224719 Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
Tires & Wheels
32 x 12.5 with 17 x 9 and 4.5 in. Backspace
33 x 12.5 with 18 x 9 and 5 in. Backspace
33 x 12.5 with 20 x 9 and 5.75 in. Backspace
Details
- BDS733PSS
- BDS733PSS
- 840416434132
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
