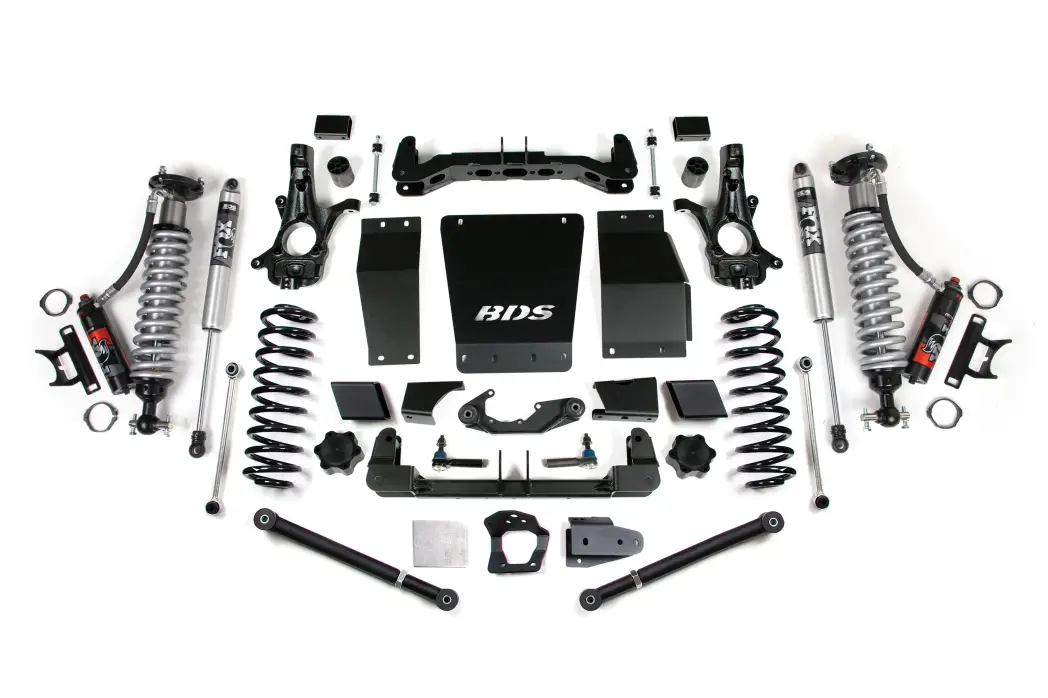

BDS731PSS | BDS Suspension 6 Inch Lift Kit With Fox 2.5 Performance Elite Coilover For Chevrolet Suburban, Tahoe / GMC Yukon / XL 1500 4WD | Cast Steel Factory Control Arm

For 2015-2019 Chevrolet Suburban, Tahoe / GMC Yukon / XL 1500 4WD

BDS731PSS
Pricing: $6,836.04
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Take your 2015-2019 Chevy Suburban, Tahoe, or GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit leverages BDS's proven high-clearance design to improve ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for excellent on-road handling. Up front, the kit uses full-length replacement strut shocks, high-arched 1/4-inch-thick steel crossmembers, a multipiece differential relocation bracket, and heavy-duty skid plates for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These, combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware, and more, provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, BDS offers new Pro-Ride coil springs for on-road ride quality and serious off-road performance, anti-sway bar links, a track bar relocation system, and adjustable upper control arms, allowing you to adjust pinion angle properly. Also, for the rear are precision-tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

Features & Benefits

  • Fox 2.5 Shocks are explicitly designed for increased travel and the ability to soak up the roughest terrain.
  • The DSC (dual speed compression) adjuster adds remarkable versatility and precise tuning with a simple twist of one or both knobs.
  • High clearance crossmember design maximizes ground clearance. Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved off-road protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas rear shocks to improve ride and off-road performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 34 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy-duty 1/4-inch-thick laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new, taller ride height using a pair of high-strength, CNC-machined, ductile cast-iron steering knuckles designed to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Factory Control Arm Type

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Important Notes

  1. *IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.
  2. Requires frame bracket modification. 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
  3. AWD models may require front driveline modification
  4. Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference.
  5. Will not work with auto-ride or Magna-ride equipped vehicles.

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment

Specification

  • Front Lift Method : Cross Member & Coil-Over
  • Front Lift Height : 6"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 5"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2015GMCYukonALL4WDALLFront and Rear6"
2015ChevroletSuburbanALL4WDALLFront and Rear6"
2015GMCYukon XLALL4WDALLFront and Rear6"
2015ChevroletTahoeALL4WDALLFront and Rear6"
2016ChevroletSuburbanLT4WDALLFront and Rear6"
2016ChevroletTahoeSSVALLALLFront and Rear6"
2016ChevroletSuburbanLS4WDALLFront and Rear6"
2016ChevroletTahoeLT4WDALLFront and Rear6"
2016ChevroletTahoeLS4WDALLFront and Rear6"
2016GMCYukonALL4WDALLFront and Rear6"
2016ChevroletTahoeLTZ4WDALLFront and Rear6"
2016ChevroletSuburbanLTZ4WDALLFront and Rear6"
2016ChevroletTahoePPV4WDALLFront and Rear6"
2016GMCYukon XLALL4WDALLFront and Rear6"
2017GMCYukon XLALL4WDALLFront and Rear6"
2017ChevroletTahoePPV4WDALLFront and Rear6"
2017ChevroletTahoeSSVALLALLFront and Rear6"
2017ChevroletSuburbanLS4WDALLFront and Rear6"
2017ChevroletTahoeLS4WDALLFront and Rear6"
2017ChevroletSuburbanPremier4WDALLFront and Rear6"
2017ChevroletTahoeLT4WDALLFront and Rear6"
2017ChevroletSuburbanLT4WDALLFront and Rear6"
2017GMCYukonALL4WDALLFront and Rear6"
2017ChevroletTahoePremier4WDALLFront and Rear6"
2018ChevroletTahoeLT4WDALLFront and Rear6"
2018ChevroletTahoeSSVALLALLFront and Rear6"
2018GMCYukon XLALL4WDALLFront and Rear6"
2018ChevroletTahoePPV4WDALLFront and Rear6"
2018GMCYukonALL4WDALLFront and Rear6"
2018ChevroletTahoePremier4WDALLFront and Rear6"
2018ChevroletSuburbanPremier4WDALLFront and Rear6"
2018ChevroletSuburbanLS4WDALLFront and Rear6"
2018ChevroletTahoeLS4WDALLFront and Rear6"
2018ChevroletSuburbanLT4WDALLFront and Rear6"
2019ChevroletTahoePPV4WDALLFront and Rear6"
2019ChevroletTahoeLT4WDALLFront and Rear6"
2019GMCYukon XLALL4WDALLFront and Rear6"
2019ChevroletTahoeLS4WDALLFront and Rear6"
2019GMCYukonALL4WDALLFront and Rear6"
2019ChevroletSuburbanALL4WDALLFront and Rear6"
2019ChevroletTahoeSSVALLALLFront and Rear6"
2019ChevroletTahoePremier4WDALLFront and Rear6"

Component List

1 BDS021507 2015-2020 GM SUV - 6" Rear Box Kit
1 BDS021660 2014-2018 GM 1500, 2015-2019 GM SUV - Front Knuckle Box Kit - Cast Steel
1 BDS021662 2014-2018 GM 1500, 2015-2020 GM SUV - 6" Front Box Kit (1of 2)
1 BDS021663 2014-2018 GM 1500, 2015-2020 GM SUV - Front Box Kit (2 of 2)
1 FOX88406534 Kit: BDS 07-18 GM 1500, Front Coilover, 2.5 Truck PES, R/R, 6” Lift, DSC
2 FOX98224759 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Tires & Wheels

(Trimming may be required)
33 x 12.5 with 17 x 9 and 4.5 in. Backspace
34 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
