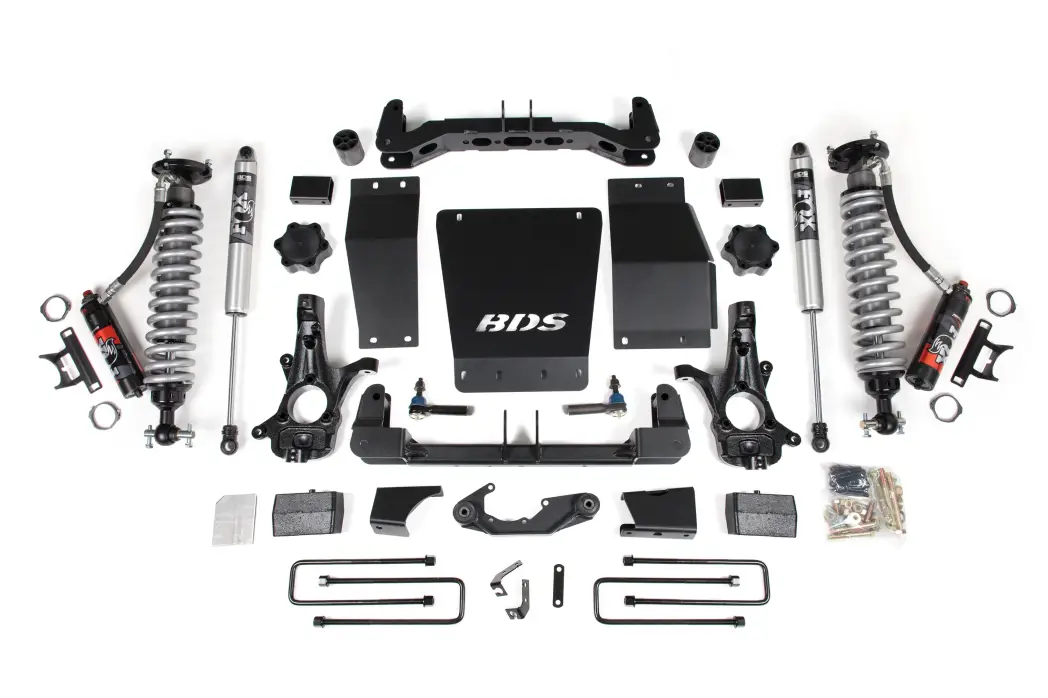

BDS713PSS | BDS Suspension 4 Inch Lift Kit With Fox 2.5 Performance Elite Coilover For Chevrolet Silverado / GMC Sierra 1500 4WD | Rear Lift Block Kit | Aluminum / Stamped Steel Factory Control Arm | Fox 2.0 Performance Series Shocks

• Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
• The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX performance series IFP gas rear shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included

• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Factory Control Arm Type

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy-duty 1/4-inch-thick laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new, taller ride height using a pair of high-strength, CNC-machined ductile cast-iron steering knuckle designs that work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Lift Option

5 Inch Block Kit

• The 5" rear block replaces the factory 1-1/4" block
• Nets 4" of rear lift to level the vehicle.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes
