BDS690F | BDS Suspension 3 Inch Lift Kit With Fox 2.5 Coilover Conversion For Ram 2500 / 3500 4WD | Rear 4 Inch Axle

For 2003-2012 Ram 2500 / 2003-2013 Ram 3500 4WD

BDS690F
Pricing: $4,883.41
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Maximize the capability of your 2003-2013 Dodge RAM 2500 and 2003-2012 RAM 3500 4WD diesel truck with this 3-inch lift kit with FOX 2.5 Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Additionally, BDS engineered fixed length, greaseable, heavy-duty round tubular construction upper and lower control arms that position the axle properly and adjust for proper caster and pinion angles.

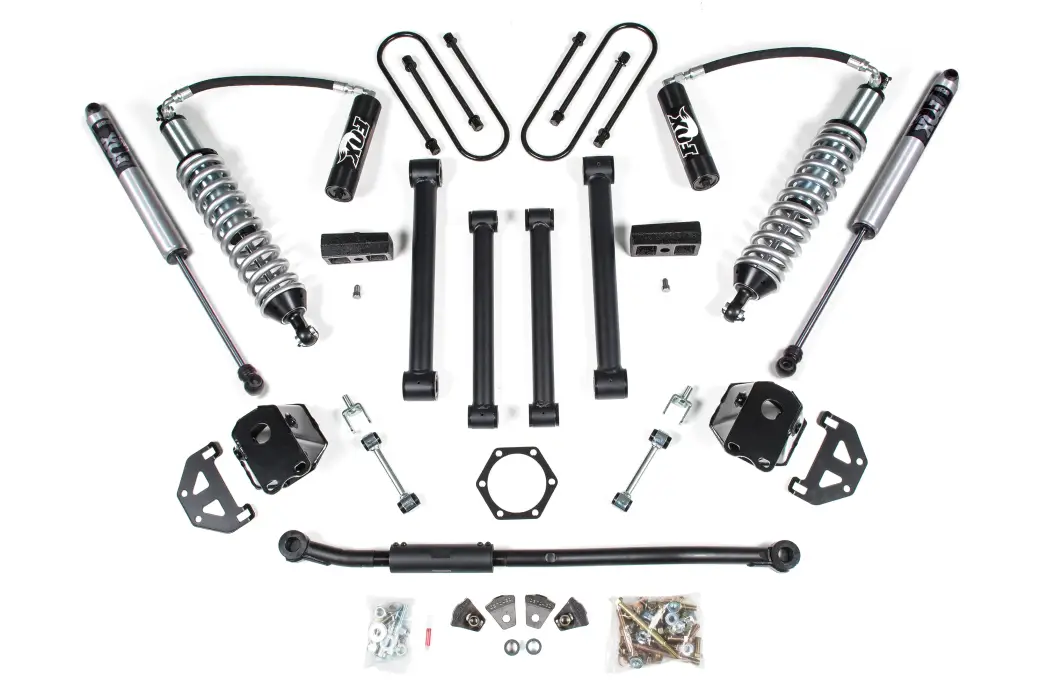

Up front the lift kit includes FOX 2.5 Coil-Over shocks, coil-over mounting brackets, heavy duty adjustable track bar, fixed length tubular upper and lower control arms, fixed length sway bar links with stud eliminator, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of FOX 2.0 Performance shocks.

Features & Benefits

  • FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
  • Heavy duty tubular short arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front HD adjustable track bar to re-position axle
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series IFP gas shocks to improve ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 5 in. Backspace

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Axle Diameter

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Important Notes

  1. Measure rear axle tube before ordering. Some 4" axle models have dual overloads that will require #4063 u-bolts.
  2. Rear lift options will not fit dually applications.
  3. Not recommended for Power Wagon models.
  4. Will not fit commercial chassis (Cab and Chassis) models.

Installation

Est. Install Time :

6-8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Cut Off Wheel or Equiv.

Specification

  • Front Lift Method : Coil-Over
  • Front Lift Height : 3"
  • Rear Lift Method : Block
  • Rear Lift Height : 2"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2003DodgeRam 2500ALLALLALL
2003DodgeRam 3500ALLALLALL
2004DodgeRam 3500ALLALLALL
2004DodgeRam 2500ALLALLALL
2005DodgeRam 3500ALLALLALL
2005DodgeRam 2500ALLALLALL
2006DodgeRam 3500ALLALLALL
2006DodgeRam 2500ALLALLALL
2007DodgeRam 2500ALLALLALL
2007DodgeRam 3500ALLALLALL
2008DodgeRam 2500ALLALLALL
2008DodgeRam 3500ALLALLALL
2009DodgeRam 3500ALL4WDDIESELFront and Rear3"
2009DodgeRam 3500ALLALLALL
2009DodgeRam 2500ALLALLALL
2010DodgeRam 3500ALLRWDALL
2010DodgeRam 3500ALL4WDALLFront and Rear3"
2010DodgeRam 2500ALLALLALL
2011Ram2500ALLALLALL
2011Ram3500ALLALLALL
2011Ram3500ALL4WDDIESELFront and Rear3"
2012Ram2500ALLALLALL
2012Ram3500ALL4WDDIESELFront and Rear3"
2012Ram3500ALLALLALL
2013Ram3500ALLALLALL

Component List

1 BDS012207 2003-2013 Dodge Ram 2500 2" Rear Box w/4
1 BDS012304 2003-2013 Dodge Ram 2500 3" Front Box Kit
1 BDS122810 03-12 Ram 2500 Coilover Mount Kit
1 FOX88402109 Kit: BDS 03-13 Ram 2500/3500 Front Coilover, 2.5 Series, R/R 3" Lift
2 FOX98224759 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 17 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
