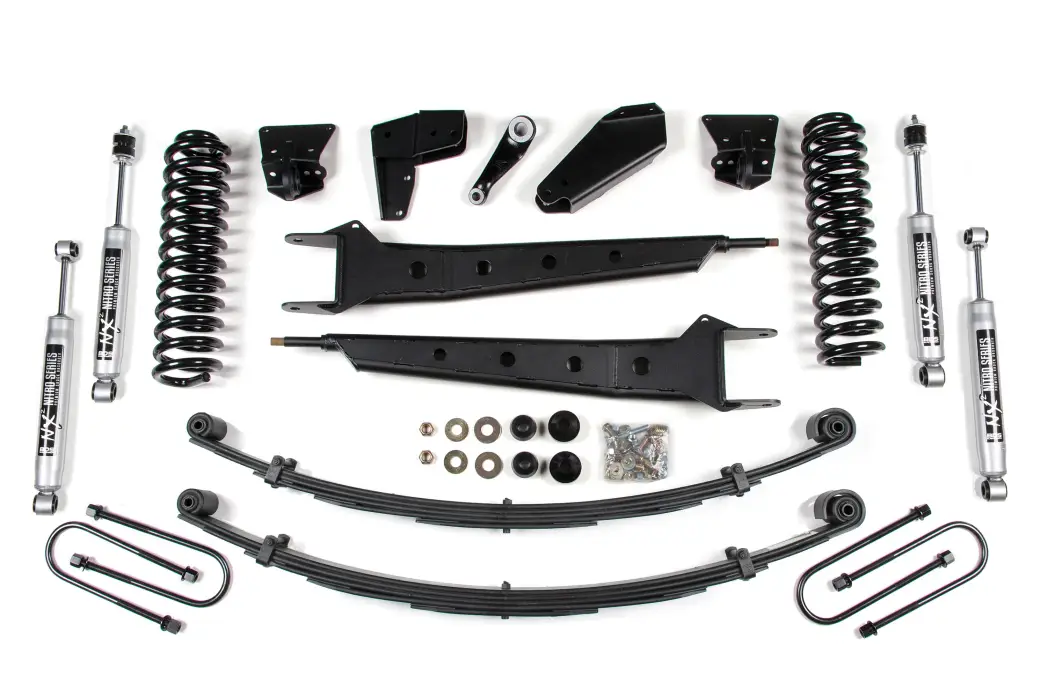

BDS369H | BDS Suspension 6 Inch Lift Kit With Radius Arm For Ford Bronco 4WD | Rear Leaf Springs

For 1980-1996 Ford Bronco 4WD

BDS369H
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $2,697.07
Qty:

Description

Raise the bar and take your 1980-1996 Ford Bronco full size 4WD truck to the next level with a 6-inch suspension lift kit with extended radius arms by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended radius arms, radius arm drop mounts, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Features & Benefits

  • Easy, Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty steel drop brackets for proper suspension geometry
  • Cast steel blocks provide level stance from front to rear
  • NX2 Nitro shocks with vehicle-specific valving for better control

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 15 x 8 and 3.5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Extended Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. The extended radius arm system will reduce caster change through wheel travel creating a more capable and controlled feeling in the steering wheel both on and off road.

Rear Lift Options

Block Kit & Add-A-Leaf

  • Add-a-leaf helps freshen up old worn-out factory leaf springs.
  • Blocks are made from cast iron for max strength.
  • Includes new center pins.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Important Notes

  1. Front end alignment required. Alignment cams may be required.
  2. #123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems
    between 1980 and 1996. In extremely rare cases, modification may be required.
  3. #003208, #003408 and #003608 come with OE style bushings installed.
  4. Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.
  5. Extended brake lines required.

Installation

Est. Install Time :

6 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Air Hammer (Recommended), Drill / Bit Set, Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 6"
  • Rear Lift Method : Block
  • Rear Lift Height : 4.5"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
1980FordBroncoALLALLALL
1981FordBroncoALLALLALL
1982FordBroncoALLALLALL
1983FordBroncoALLALLALL
1984FordBroncoALLALLALL
1985FordBroncoALLALLALL
1986FordBroncoALLALLALL
1987FordBroncoALLALLALL
1988FordBroncoALLALLALL
1989FordBroncoALLALLALL
1990FordBroncoALLALLALL
1991FordBroncoALLALLALL
1992FordBroncoALLALLALL
1993FordBroncoALLALLALL
1994FordBroncoALLALLALL
1995FordBroncoALLALLALL
1996FordBroncoALLALLALL

Component List

2 BDS003408 73-96 Ford F150 4in Rear Spring 3in wide
1 BDS013003 80-96 Ford F150 Ext Radius Arm Front Box
1 BDS033601 Coil Spring Box Kit: 1980-1996 Ford F150/Bronco - 6" Front Coil Springs
2 BDS85650 Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1
2 BDS85820 Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1
4 UBT4051 9/16 x 3-1/4 x 10 Round U-bolt

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 15 x 8 and 3.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 139.0 lbs.
  • W29.0000” x H18.0000” x L40.0000”
  • $100.00
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)

Documents
