BDS364H | BDS Suspension 4 Inch Lift Kit For Ford Bronco 4WD | Rear Leaf Springs

For 1980-1996 Ford Bronco 4WD

BDS364H
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $2,038.81
Qty:

Description

Take your 1980-1996 Ford Bronco 4WD truck to new heights with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Features & Benefits

  • Easy, Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty steel drop brackets for proper suspension geometry
  • Cast steel blocks provide level stance from front to rear
  • NX2 Nitro shocks with vehicle-specific valving for better control

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 15 x 8 and 3.5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Rear Lift Options

Block Kit

  • Blocks are made from cast iron for strength.
  • Tapered for correct pinion angle.
  • Steel pin and hole are offset to restore axle position.

Block Kit + Add-A-Leaf

  • Add-a-leaf helps freshen up old worn-out factory leaf springs.
  • Blocks are made from cast iron for max strength.
  • Includes new center pins.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Important Notes

  1. If your vehicle is equipped with a front anti-sway bar, you will want a 123401 available in the options.
  2. Does not fit Broncos without power steering.
  3. Front alignment cams available in the accessories may be required for alignment.
  4. Extended brake lines required for all 4-6" lift systems.

Installation

Est. Install Time :

6 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Air Hammer (Recommended), Metric/Standard Socket Wrench Set, Drill / Bit Set, Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 4"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
1980FordBroncoALLALLALL
1981FordBroncoALLALLALL
1982FordBroncoALLALLALL
1983FordBroncoALLALLALL
1984FordBroncoALLALLALL
1985FordBroncoALLALLALL
1986FordBroncoALLALLALL
1987FordBroncoALLALLALL
1988FordBroncoALLALLALL
1989FordBroncoALLALLALL
1990FordBroncoALLALLALL
1991FordBroncoALLALLALL
1992FordBroncoALLALLALL
1993FordBroncoALLALLALL
1994FordBroncoALLALLALL
1995FordBroncoALLALLALL
1996FordBroncoALLALLALL

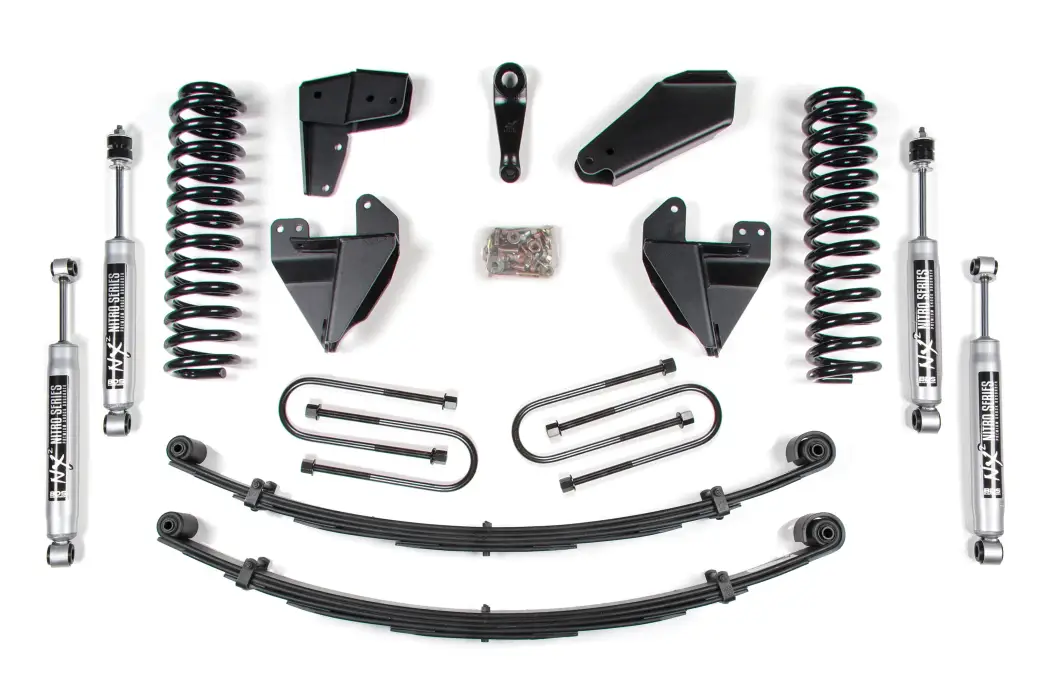

Component List

2 BDS003208 73-96 Ford F150 2in Rear Spring 3in wide
1 BDS013001 80-96 Ford F150 Front Box Kit
1 BDS033401 Coil Spring Box Kit: 1980-1996 Ford F150/Bronco - 4" Front Coil Springs
2 BDS85650 Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1
2 BDS85800 Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1
4 UBT4051 9/16 x 3-1/4 x 10 Round U-bolt

Tires & Wheels

(Trimming may be required)
33 x 12.5 with 15 x 8 and 3.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 139.0 lbs.
  • W29.0000” x H29.0000” x L48.0000”
  • $100.00
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
