BDS359H | BDS Suspension 2 Inch Leveling Kit For Ford Bronco 4WD | Stock Rear Lift

For 1980-1996 Ford Bronco 4WD

BDS359H
Pricing: $710.22
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Enhance the ride and level out your 1980-1996 Ford Bronco 4WD truck with this 2-inch leveling kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your vehicle up right with clearance for up to 30" tires.

Up front, the lift kit includes Pro-Ride coil springs, adjustable alignment cams, and custom-tuned nitrogen-charged shocks. In the rear, this kit utilizes a matching set of NX2 Nitro shocks.

Features & Benefits

  • Easy, Bolt-on installation
  • Includes adjustable alignment cams
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • NX2 Nitro shocks with vehicle-specific valving for better control

Recommended Tires & Wheels

(Trimming may be required)

  • 30 x 9.5 with 15 x 8 and 3.5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Important Notes

  1. Front end alignment required. Alignment cams may be required.
  2. If OE alignment bushings in the upper ball joint are more than 1 degree, then 2" coils should not be used.
  3. Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.
  4. Adding the leaf springs makes it a 2" lift (front and rear), maintaining factory rake.

Installation

Est. Install Time :

4 hrs

Difficulty Level :

Moderately Easy

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 2"
  • Rear Lift Method : Stock
  • Rear Lift Height : 0"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
1980FordBroncoALLALLALL
1981FordBroncoALLALLALL
1982FordBroncoALLALLALL
1983FordBroncoALLALLALL
1984FordBroncoALLALLALL
1985FordBroncoALLALLALL
1986FordBroncoALLALLALL
1987FordBroncoALLALLALL
1988FordBroncoALLALLALL
1989FordBroncoALLALLALL
1990FordBroncoALLALLALL
1991FordBroncoALLALLALL
1992FordBroncoALLALLALL
1993FordBroncoALLALLALL
1994FordBroncoALLALLALL
1995FordBroncoALLALLALL
1996FordBroncoALLALLALL

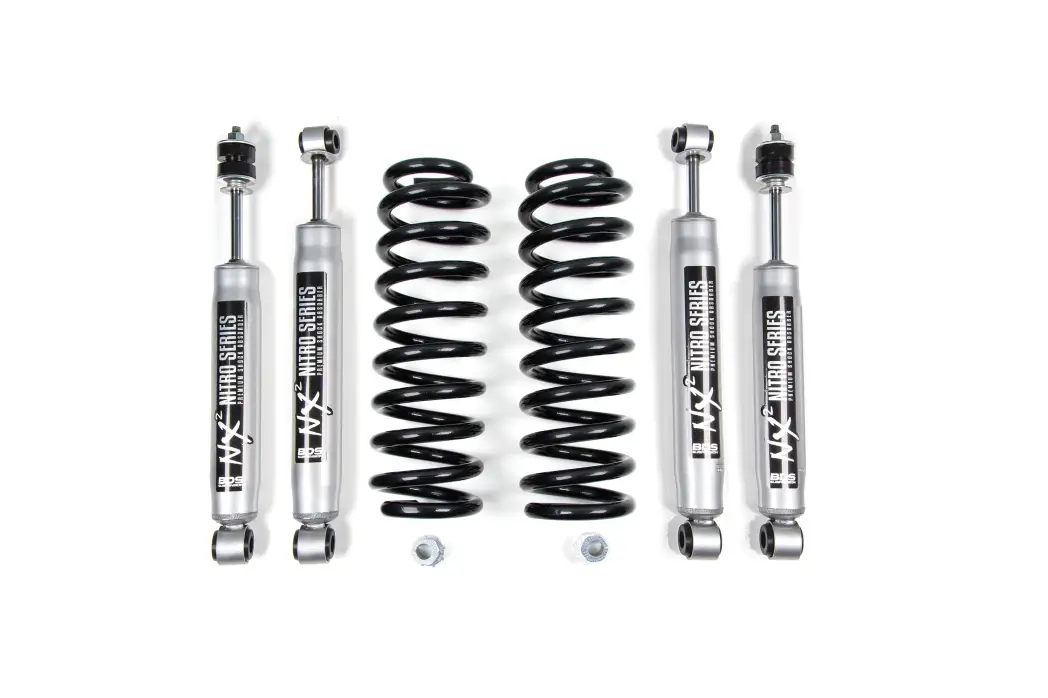

Component List

1 BDS033201 Coil Spring Box Kit: 1980-1996 Ford F100/F150/Bronco - 2" Front Coil Springs
2 BDS129100 80-95 Ford F150 Aligmt Eccentric 0-2 3/4
2 BDS85620 Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1
2 BDS85810 Shock- 16.90 x 10.90 x 2-3/8 - S1/EB1

Tires & Wheels

(Trimming may be required)
30 x 9.5 with 15 x 8 and 3.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 54.0 lbs.
  • W24.0000” x H10.0000” x L20.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
