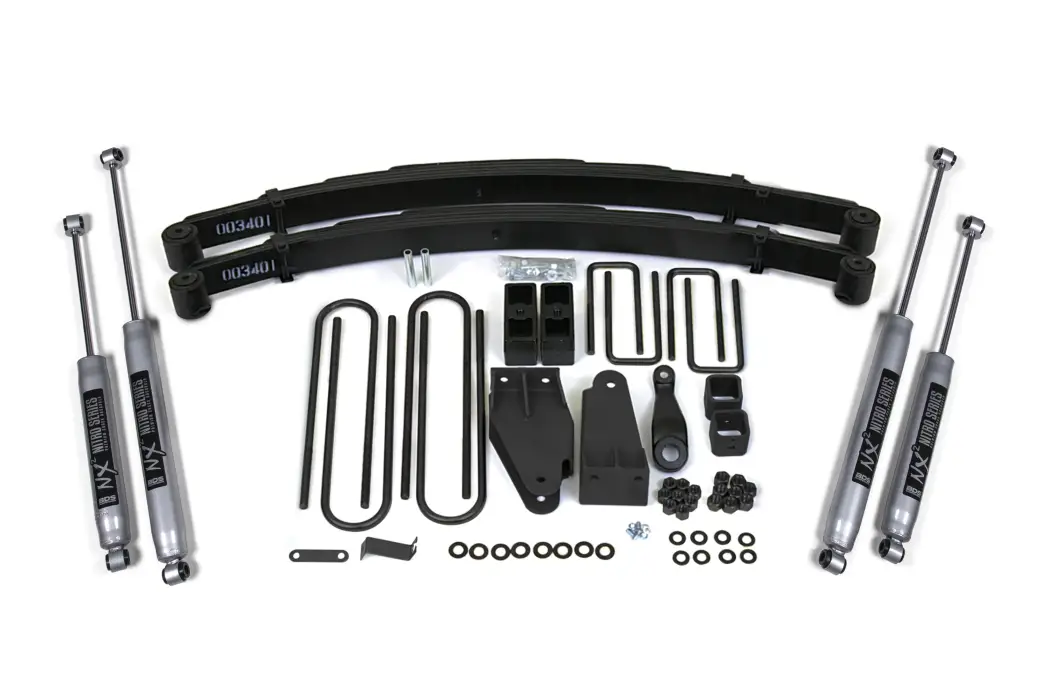

BDS307H | BDS Suspension 4 Inch Lift Kit For Ford F-250 TTB 4WD | NX2 Nitro Series Shocks

For 1980-1986 Ford F-250 TTB 4WD

BDS307H
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $2,043.23
Qty:

Description

Update the style of your 1980-1996 Ford F250 TTB 4WD truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your vehicle up right with clearance for up to 35" tires.

Up front, the lift kit includes Glide-Ride leaf springs, axle pivot drop brackets, forged drop pitman arm for steering correction, bump stop brackets, and precision-tuned NX2 or FOX nitrogen-charged shocks.

In the rear, this kit utilizes a high-strength lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • Pitman arm maintains proper steering angles for improved handling
  • Cast steel blocks provide a level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 16 x 8 and 4 in. Backspace

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Important Notes

  1. Not recommended for diesel applications.
  2. This system is designed for Twin-Traction Beam style suspension only. The kit will not work on front solid axle applications.
  3. In some cases a pair of alignment cam BDS129102 may be required to achieve proper caster and camber alignment specifications.

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Pitman Arm Puller

Specification

  • Front Lift Method : Leaf Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 3"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
1980FordF-250ALL4WDALL
1981FordF-250ALL4WDALL
1982FordF-250ALL4WDALL
1983FordF-250ALL4WDALL
1984FordF-250ALL4WDALL
1985FordF-250ALL4WDALL
1986FordF-250ALL4WDALL
1987FordF-250ALL4WDALL
1988FordF-250ALL4WDALL
1989FordF-250ALL4WDALL
1990FordF-250ALL4WDALL
1991FordF-250ALL4WDALL
1992FordF-250XL4WDALL
1992FordF-250Custom4WDALL
1992FordF-250XLT Lariat4WDALL
1993FordF-250XLT4WDALL
1993FordF-250XL4WDALL
1994FordF-250XLT4WDALL
1994FordF-250XL4WDALL
1995FordF-250Special4WDALL
1995FordF-250XL4WDALL
1995FordF-250XLT4WDALL
1995FordF-250Eddie Bauer4WDALL
1996FordF-250Special4WDALL
1996FordF-250Eddie Bauer4WDALL
1996FordF-250XL4WDALL
1996FordF-250XLT4WDALL

Component List

2 BDS003401 80-96 Ford F250 Gas 4in Front Spring
1 BDS013309 80-96 Ford F250 3in Rear Box Kit
1 BDS013401 80-96 Ford F250 4in Front Box Kit
2 BDS85660 Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
2 BDS85820 Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 16 x 8 and 4 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • $100.00
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
