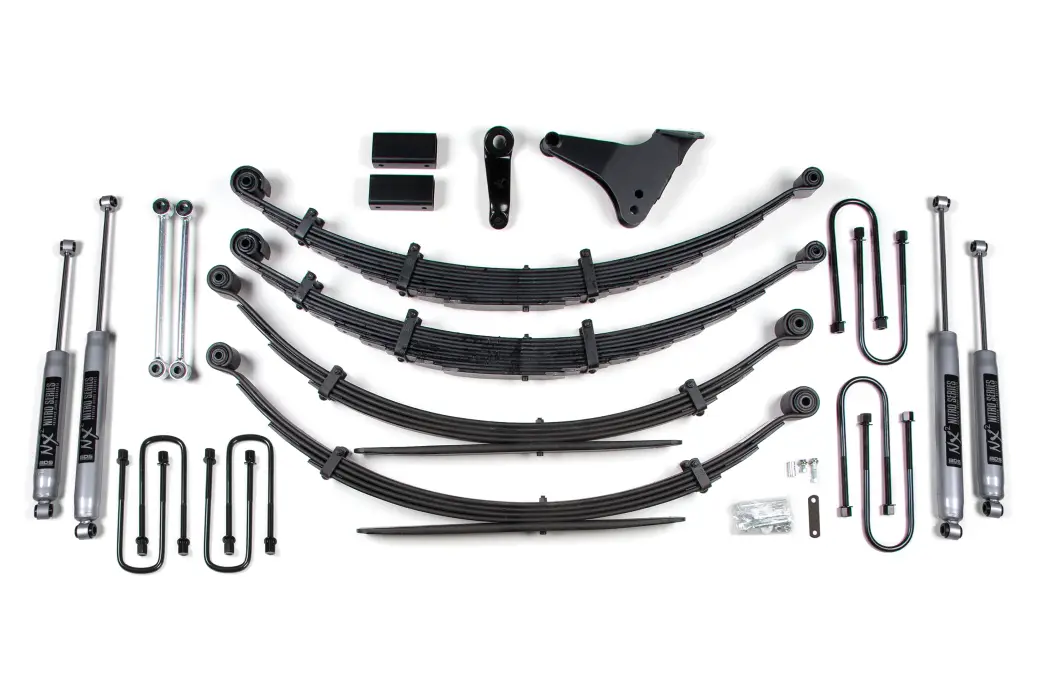

BDS303H | BDS Suspension 6 Inch Lift Kit For Ford Excursion 4WD | Rear Leaf Springs | NX2 Nitro Series Shocks

For 2000-2005 Ford Excursion 4WD

BDS303H
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $2,721.76
Qty:

Description

Update the style of your 2000-2005 Ford Excursion with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • Track bar relocation bracket maintains proper steering angles for improved handling
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 16 x 8 and 4 in. Backspace

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Important Notes

  1. Remove factory block.
  2. Models with rear CV driveshaft may experience drive line vibration.
  3. Due to OE variances, you may need to change the rear block to level the truck.
  4. #003202, #003402, #003602, #003609, #003802 & #003809 come with rubber bushings installed.

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Drill / Bit Set, Pitman Arm Puller

Specification

  • Front Lift Method : Leaf Spring
  • Front Lift Height : 6"
  • Rear Lift Method : Leaf Spring
  • Rear Lift Height : 5"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2000FordExcursionALL4WDALL
2001FordExcursionALL4WDALL
2002FordExcursionALL4WDALL
2003FordExcursionALL4WDALL
2004FordExcursionALL4WDALL
2005FordExcursionALL4WDALL

Component List

2 BDS003402 Ford F250/350 4in Front Spring
2 BDS003609 Ford F250/350 6in Rear Spring
1 BDS013009 Ford F250/350 6&8in Rear Box Kit
1 BDS013405 00-01 Ford F250/350 4in Front Bx Kt w/cu
2 BDS85650 Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1
2 BDS85762 Shock- 33.00 x 19.25 x 2-3/8 - BP8/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 16 x 8 and 4 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • $200.00
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
