BDS2263PES | BDS Suspension 3 Inch Lift Kit With Fox 2.5 Performance Elite Series Coilover For Ford F-150 4WD | Fox 2.5 Performance Elite Shocks

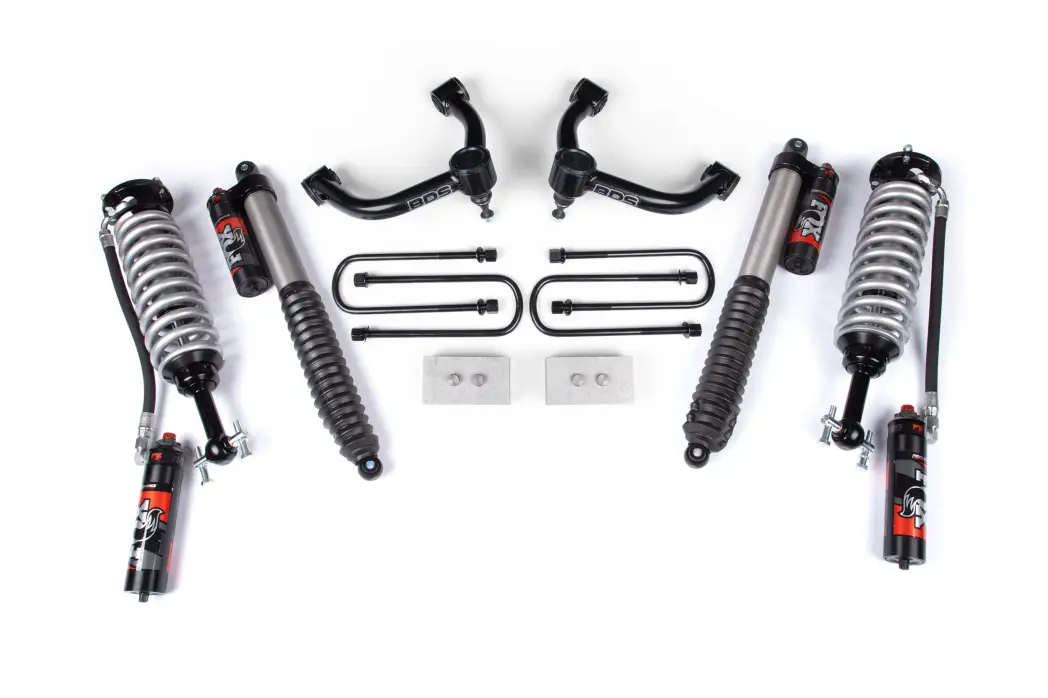

Outfit your 2021–2025 Ford F-150 4x4 with this BDS 3" suspension lift kit, engineered to deliver increased ground clearance, improved suspension performance, and uncompromising ride quality. Designed specifically for non-Raptor models, this system combines BDS’s proven suspension geometry with FOX’s race-proven shock technology for a refined yet aggressive driving experience.

Up front, the kit features FOX 2.5 Performance Elite coilover shocks with Dual Speed Compression (DSC) adjustment, giving you the ability to fine-tune your suspension for any terrain or driving style. The DSC system provides independent low-speed and high-speed compression adjusters, allowing precise control over body roll, brake dive, cornering stability, and small-bump compliance while still absorbing large impacts at higher speeds. A large-diameter, hard-anodized aluminum shock body increases oil capacity for superior heat dissipation, delivering consistent, fade-free performance during aggressive off-road use or extended driving.

In the rear, this kit offers two shock options to match your performance needs. The FOX 2.0 Performance Series IFP shocks provide a balanced, reliable ride ideal for daily driving and light to moderate off-road use, offering improved control and comfort over factory shocks. For drivers seeking maximum performance, the optional FOX 2.5 Performance Elite rear shocks with DSC adjustment deliver increased oil capacity, enhanced heat dissipation, and the same dual-speed compression tuning found up front, ideal for high-speed terrain, heavy loads, and demanding off-road conditions.

Also included are BDS tubular upper control arms, engineered to correct suspension geometry on lifted F-150s while significantly improving strength and wheel travel. Constructed from heavy-duty tubular steel, these control arms optimize ball joint angles to restore proper alignment, steering feel, and tire wear. Increased articulation allows the suspension to cycle smoothly through its full range of motion without binding, resulting in improved handling, stability, and long-term durability on and off the road. These arms feature dual sided sensor mounts to work with all F-150 variants.

This 3" BDS lift kit allows the use of 33 x 12.50-inch tires when paired with a 9-inch wide wheel featuring 5.5 inches of backspacing, giving your F-150 a wider, more aggressive stance without sacrificing drivability or ride quality
