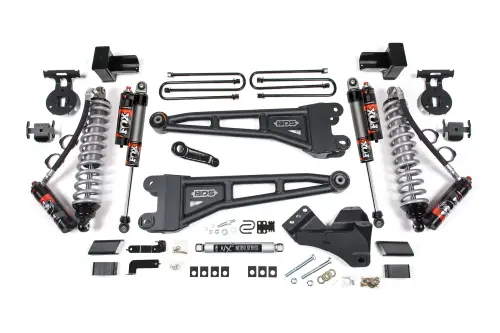

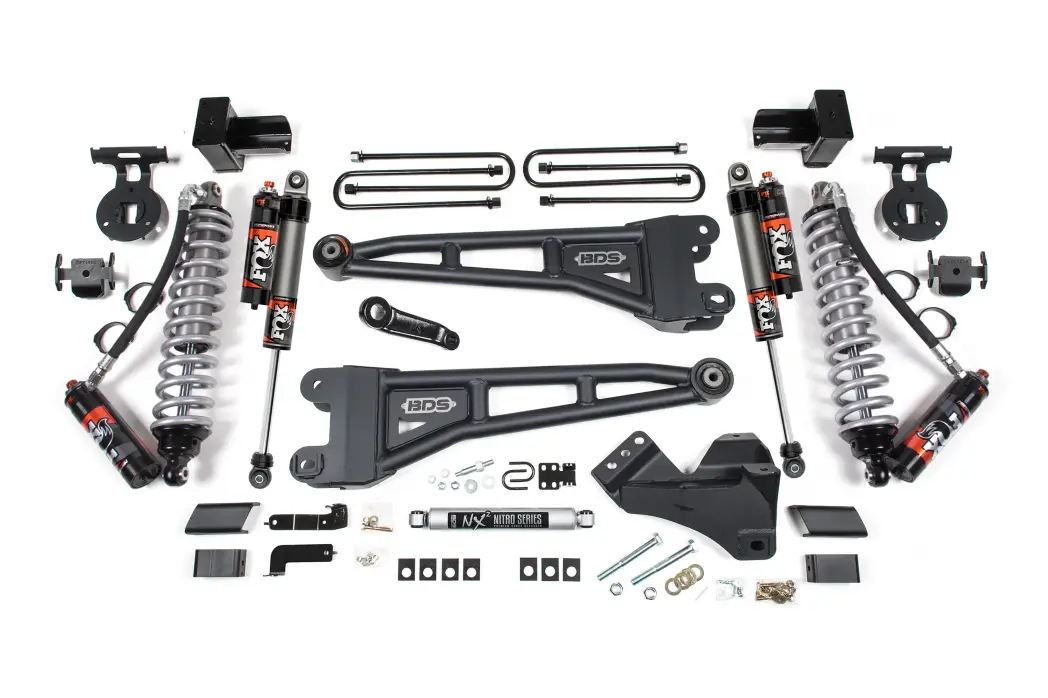

BDS2261PES | BDS Suspension 5 Inch Lift Kit With Radius Arm & Fox 2.5 Performance Elite Coilover Conversion For Ford F-350 Super Duty DRW 4WD Diesel | Fox 2.5 Performance Elite Shocks

• Easy, 100% Bolt-on installation
• FOX Performance Elite Coilover conversion front with choice of Fox Performance Elite or Fox Performance 2.5 IFP rear shocks.
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Factory Protection Plus drivetrain warranty included

• 37 x 12.5 with 17 x 9 and in. Backspace
• 37 x 12.5 with 18 x 9 and in. Backspace
• 37 x 12.5 with 20 x 9 and in. Backspace

Shock Option

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

FOX 2.5 Performance Series HTO

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. Fits dual rear wheel F-350's.
2. Ford recommends the replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
4. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
5. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
6. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
7. Installation requires a torque wrench capable of 406 ft-lbs.
8. Vehicles with radius arm mounted ride height sensors will require BDS123303
