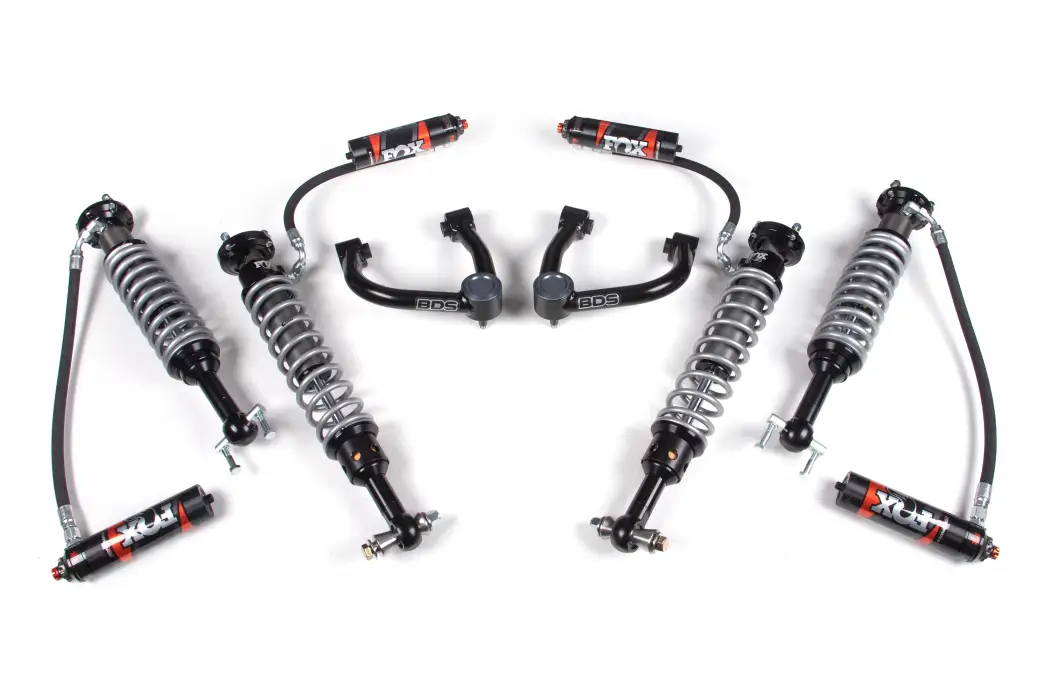

BDS1905FPE | BDS Suspension 3 Inch Lift Kit With Fox 2.5 Performance Elite Coilover For Ford Bronco | Uniball Control Arm

For 2021-2026 Ford Bronco

BDS1905FPE
Pricing: $8,628.93
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Up the ante in your 2021-2026 Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Performance Elite 2.5 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front, the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 2.5 Performance Elite coil-over shocks for an improved ride.

Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3" of lift, 4-Door Badlands: net 3.5" of lift, and 4-Door Broncos with the base suspension: net 4" of lift.

Features & Benefits

  • FOX 2.5 Performance Elite series coilovers offer improved damper performance over stock
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% bolt-on installation

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 5.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.5 in. Backspace

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next-level performance for on-road and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity, keeping your shocks cool so you can push the limits in rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels. It features a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance, and increased travel, these upper control arms are ready to bolt in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed high-strength uniball or ball joint to correct the joint positioning, allowing additional down travel and camber adjustment. At the frame mounting ends, durometer-specific rubber bushings provide maintenance-free operation, while at the other end, quality greaseable ball joints ensure smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap, ready for installation right out of the box.

BDS suspension offers these upper control arms in both Uniball and Ball Joint configurations. Below is some information to help you decide which is best for your application.

Uniballs

These spherical bearings are designed for hardcore off-road and racing. Uniballs are stronger and more durable than ball joints, and depending on application, can handle greater wheel travel as well as have the option for double-shear mounting. However, they are exposed and can get dirty, which can wear down the components and create noise. Uniballs also require more frequent maintenance.

Ball Joints

These sealed OE style components connect the steering knuckle to the control arms, allowing the steering knuckle to pivot and providing a smooth ride. Ball joints are similar in design to the ball-and-socket joints in the body. They come in sealed and greaseable versions, and in certain applications can be setup to provide more wheel travel than their Uniball counterparts.

Important Notes

  1. Lift height is based on base suspension package, Badlands and Sasquatch models will net less lift however final ride height is the same for all trims.
  2. Do NOT hit the aluminum knuckle with a hammer to separate the ball joint. Use appropriate ball joint separation tool (OTC 204592).
  3. Will not work with models with a height sensor attached to the UCA.
  4. Does not fit Bronco Sport models.
  5. Not compatible with Raptor Models.
  6. Is compatible with HOSS 3.0 Bronco Models

Will provide the following lift amounts:

2 Door | Without Sasquatch Package - 4.5" Lift

4 Door | Without Sasquatch Package - 4" Lift

2 Door | With Sasquatch Package - 3.5" Lift

4 Door | With Sasquatch Package - 3" Lift

Installation

Est. Install Time :

3-4 hrs

Difficulty Level :

Moderately Easy

Specification

  • Front Lift Method : Coil-Over
  • Front Lift Height : 3.5"
  • Rear Lift Method : Coil-Over
  • Rear Lift Height : 3-5"
  • Shocks Included : No

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2021FordBroncoALLALLALLFront and Rear4.5"
2022FordBroncoWildtrakALLALLFront and Rear4.5"
2022FordBroncoBig BendALLALLFront and Rear4.5"
2022FordBroncoEvergladesALLALLFront and Rear4.5"
2022FordBroncoBlack DiamondALLALLFront and Rear4.5"
2022FordBroncoBaseALLALLFront and Rear4.5"
2022FordBroncoOuter BanksALLALLFront and Rear4.5"
2022FordBroncoBadlandsALLALLFront and Rear4.5"
2023FordBroncoEvergladesALLALLFront and Rear4.5"
2023FordBroncoHeritage EditionALLALLFront and Rear4.5"
2023FordBroncoBlack DiamondALLALLFront and Rear4.5"
2023FordBroncoBaseALLALLFront and Rear4.5"
2023FordBroncoBadlandsALLALLFront and Rear4.5"
2023FordBroncoWildtrakALLALLFront and Rear4.5"
2023FordBroncoHeritage Limited EditionALLALLFront and Rear4.5"
2023FordBroncoBig BendALLALLFront and Rear4.5"
2023FordBroncoOuter BanksALLALLFront and Rear4.5"
2024FordBroncoBadlandsALLALLFront and Rear4.5"
2024FordBroncoOuter BanksALLALLFront and Rear4.5"
2024FordBroncoBig BendALLALLFront and Rear4.5"
2024FordBroncoBlack DiamondALLALLFront and Rear4.5"
2024FordBroncoHeritage Limited EditionALLALLFront and Rear4.5"
2024FordBroncoWildtrakALLALLFront and Rear4.5"
2024FordBroncoHeritage EditionALLALLFront and Rear4.5"
2024FordBroncoEvergladesALLALLFront and Rear4.5"
2025FordBroncoBaseALLALLFront and Rear3"
2025FordBroncoBadlandsALLALLFront and Rear3"
2025FordBroncoBig BendALLALLFront and Rear3"
2025FordBroncoHeritage EditionALLALLFront and Rear3"
2025FordBroncoOuter BanksALLALLFront and Rear3"

Component List

1 BDS011517 01-10 GM 3/4Ton 5in Rear (flat)
1 BDS021632 HD Knuckle Kit
1 BDS021633 01-08 HD 7in HC Crossmember Kit
1 BDS021634 01-08 HD 7in HC Box Kit
2 BDS85606 Shock- 22.20 x 13.35 x 2 - S50/EB1
2 BDS85761 Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 17 x 9 and 5.5 in. Backspace
37 x 12.5 with 18 x 9 and 5.5 in. Backspace
37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
