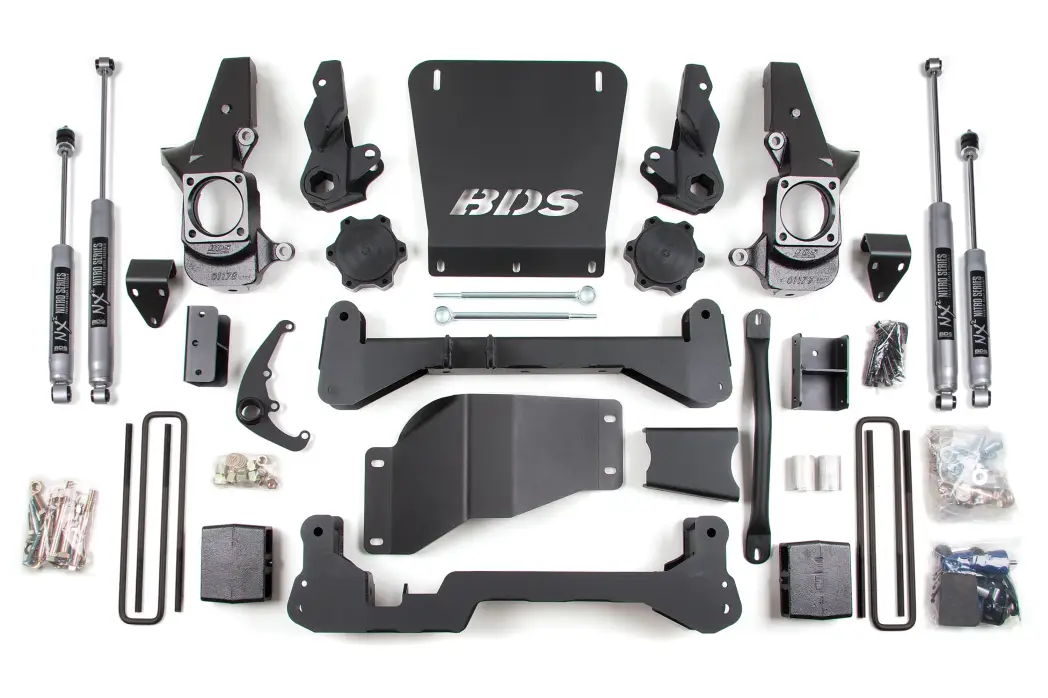

BDS189H | BDS Suspension 7 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 2500HD / 3500HD 4WD | Rear 5 Inch Lift Block Kit | Standard Track Knuckle | NX2 Nitro Series Shocks

• 35 x 12.5 with 16 x 8 and 4.5 in. Backspace
• 35 x 12.5 with 17 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Track Width Option

This system is available with two different knuckle designs. The standard knuckle widens the track width, but does not affect the turning radius. The narrow track knuckle reduces the total track width change by about 1.5" overall but does increase the turning radius slightly.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. Torsion Bar tool required to load/unload the torsion bars.
2. Some welding is required.
3. Requires frame bracket modification and differential mount modification.
4. Traction bars will NOT fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift. Will NOT work on long bed models.
5. 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
6. Gas models require exhaust modification.
7. The narrow track knuckle will increase the minimum full lock turning radius and you will not be able to turn as sharply.
8. For tail high stance use #119157 add-a-leaf with the block kit or #069207 with the leaf spring kit.
9. Dually applications will require custom u-bolts.
10. Leaf spring option does not work with the SUV's.
