BDS1987FPE | BDS Suspension 6 Inch Lift Kit 4-Link Fox 2.5 Performance Elite Coil-Over Conversion For Ford F-350 Super Duty DRW 4WD | Diesel | Fox 2.5 Performance Elite Shocks
For 2020-2022 Ford F-350 Super Duty DRW 4WD | Diesel
Description
Raise the bar and take your dual rear wheel "DRW" Ford F350 Super Duty diesel truck to the next level with this 6-inch radius arm lift kit with FOX 2.5 Performance Elite Coil-over shocks from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 38" tires.
Up front the lift kit includes FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and secondary FOX 2.0 shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX 2.0 Performance shocks.
Features & Benefits
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Recommended Tires & Wheels
- 38 x 13.5 with and in. Backspace
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
Auxiliary Front and Rear Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Important Notes
- Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final right height will be the same as standard models.
- Dually Diesel Models Only
- The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
- 38 x 13.50 tires may require minor trimming.
- The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
Installation
Est. Install Time :
8 hrsDifficulty Level :
DifficultSpecification
- Front Lift Method : Coil-Over
- Front Lift Height : 6"
- Rear Lift Method : Block
- Rear Lift Height : 4"
- Shocks Included : Yes
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2020 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ||
| 2020 | Ford | F-350 Super Duty | Lariat | 4WD | DIESEL | ||
| 2020 | Ford | F-350 Super Duty | Platinum | 4WD | DIESEL | ||
| 2020 | Ford | F-350 Super Duty | XL | 4WD | DIESEL | ||
| 2020 | Ford | F-350 Super Duty | King Ranch | 4WD | DIESEL | ||
| 2020 | Ford | F-350 Super Duty | XLT | 4WD | DIESEL | ||
| 2020 | Ford | F-350 Super Duty | Limited | ALL | ALL | ||
| 2021 | Ford | F-350 Super Duty | XL | 4WD | DIESEL | ||
| 2021 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ||
| 2021 | Ford | F-350 Super Duty | Limited | ALL | ALL | ||
| 2021 | Ford | F-350 Super Duty | King Ranch | 4WD | DIESEL | ||
| 2021 | Ford | F-350 Super Duty | XLT | 4WD | DIESEL | ||
| 2021 | Ford | F-350 Super Duty | Lariat | 4WD | DIESEL | ||
| 2021 | Ford | F-350 Super Duty | Platinum | 4WD | DIESEL | ||
| 2022 | Ford | F-350 Super Duty | XLT | 4WD | DIESEL | ||
| 2022 | Ford | F-350 Super Duty | Platinum | 4WD | DIESEL | ||
| 2022 | Ford | F-350 Super Duty | King Ranch | 4WD | DIESEL | ||
| 2022 | Ford | F-350 Super Duty | XL | 4WD | DIESEL | ||
| 2022 | Ford | F-350 Super Duty | Lariat | 4WD | DIESEL | ||
| 2022 | Ford | F-350 Super Duty | Limited | ALL | ALL | ||
| 2022 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL |

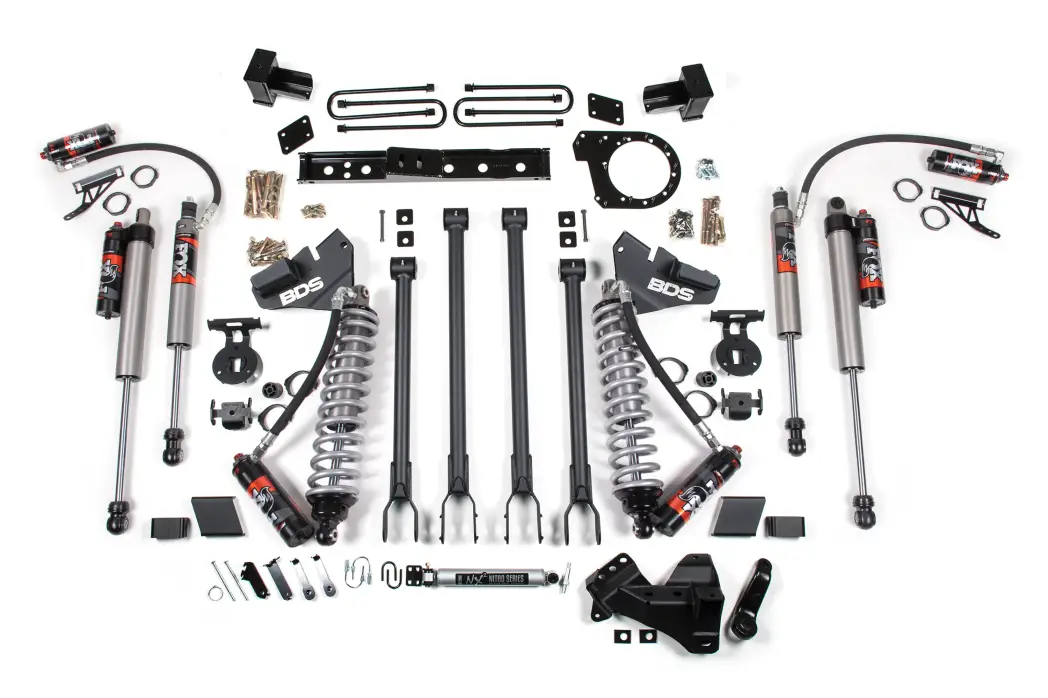

Component List
1 BDS013601 2017-2022 Super Duty 4-Link Box Kit 1of2
1 BDS013604 2017-2022 Ford F-250 / F-350 6" 4-Link Box Kit 2of2
1 BDS123605 2017-2026 Ford Superduty T-Case Indexing Kit - Diesel
1 BDS123613 2017-2026 Super Duty Coil-over Mount Kit
1 BDS85431 2017-2026 Ford F250/F350 Single Stabilizer
1 FOX88406428 Kit: BDS 2005-2026 Ford SD Front Coilover, 2.5 Truck PES, R/R 6" Lift, DSC
1 FOX88326100 Kit: 2017-2026 Ford SD Rear, 2.5 Truck PES, P/B, 4-6" Lift, DSC
1 FOX88326099 Kit: 2017-2026 Ford SD Front, 2.5 Truck PES, R/R, 4-6" Lift, DSC
Tires & Wheels Recommendations
38 x 13.5 with and in. Backspace
Details
- BDS1987FPE
- BDS1987FPE
- 840416412499
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
