BDS2122H | BDS Suspension 4 Inch Lift Kit For Ram 1500 With Air Ride 4WD | Standard OE Knuckle Type | NX2 Nitro Series Shocks

For 2025-2026 Ram 1500 With Air Ride 4WD

BDS2122H
Pricing: $3,352.85
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Lift your 2025 to 2026 RAM 1500 with factory air ride suspension using the BDS 4" Lift Kit, engineered for enhanced performance, improved ground clearance, and an aggressive stance without compromising ride quality. This premium system is designed specifically for air ride-equipped models, ensuring proper integration with factory components and maintaining full air ride functionality. With a full 4 inches of front lift, this kit allows clearance for up to 35-inch tires, giving your truck a more commanding presence and increased off-road capability. The kit includes high-strength crossmembers, heavy-duty steering knuckles, differential relocation brackets, sway bar links, and all necessary hardware to ensure a reliable and precise fit. For rear shock options, you can choose between FOX 2.0 Performance Series IFP shocks, ideal for those seeking fade-free, high-performance damping on and off the road, or BDS NX2 Nitro Series shocks, which offer excellent control and comfort at a more budget-friendly price. Compatible with 2025 to 2026 RAM 1500 models equipped with factory air ride (excluding TRX models), this kit is backed by the industry-leading BDS No Fine Print Warranty, giving you the confidence to take your truck further on pavement, dirt, or wherever the road ends.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas rear shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

OE Knuckle Type

RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Fits models with 3.0L Hurricane I6, 3.6L V6, and 5.7L V8 engines.
  2. Extreme care/caution must be taken to follow the steps of these instructions to prevent any air leaks or damage to the bags during installation.
  3. The factory air ride is a closed-loop system. Opening the system more times than recommended in the lift instructions will require the system to be recharged (this can be done at any RAM dealer service department). A scan tool is needed to access the air control module to perform the service.
  4. Frame bracket modification is required.
  5. Fits 4WD models equipped with factory air ride only.
  6. Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20"+ wheels can be reinstalled with factory-size tires.
  7. Trucks equipped with factory 22" wheels must use the large bore steering knuckles.
  8. Does NOT fit Diesel Models.
  9. Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines mounted.
  10. IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE
  11. Included Replacement front brake lines (22545) do not work on 2025 model year trucks, relocation bracket is used instead. See instructions for bracket details

Installation

Est. Install Time :

10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

35mm Axle Nut Socket

Specification

  • Front Lift Method : Cross Member & Strut Spacer
  • Front Lift Height : 4"
  • Rear Lift Method : Spacer
  • Rear Lift Height : 3"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2025Ram1500Laramie4WDALLFront and Rear4"
2025Ram1500Tradesman4WDALLFront and Rear4"
2025Ram1500Laramie SportALLALLFront and Rear4"
2025Ram1500Lone Star4WDALLFront and Rear4"
2025Ram1500SportALLALLFront and Rear4"
2025Ram1500Limited LonghornALLALLFront and Rear4"
2025Ram1500Special ServiceALLALLFront and Rear4"
2025Ram1500WarlockALLALLFront and Rear4"
2025Ram1500Big Horn4WDALLFront and Rear4"
2025Ram1500RebelALLALLFront and Rear4"
2025Ram1500Big Horn OffRoadALLALLFront and Rear4"
2025Ram1500LimitedALLALLFront and Rear4"
2026Ram1500Lone Star4WDALLFront and Rear4"
2026Ram1500Big Horn4WDALLFront and Rear4"
2026Ram1500Tradesman4WDALLFront and Rear4"
2026Ram1500RebelALLALLFront and Rear4"
2026Ram1500WarlockALLALLFront and Rear4"
2026Ram1500Express4WDALLFront and Rear4"
2026Ram1500Laramie4WDGASFront and Rear4"
2026Ram1500Limited LonghornALLGASFront and Rear4"
2026Ram1500LimitedALLGASFront and Rear4"

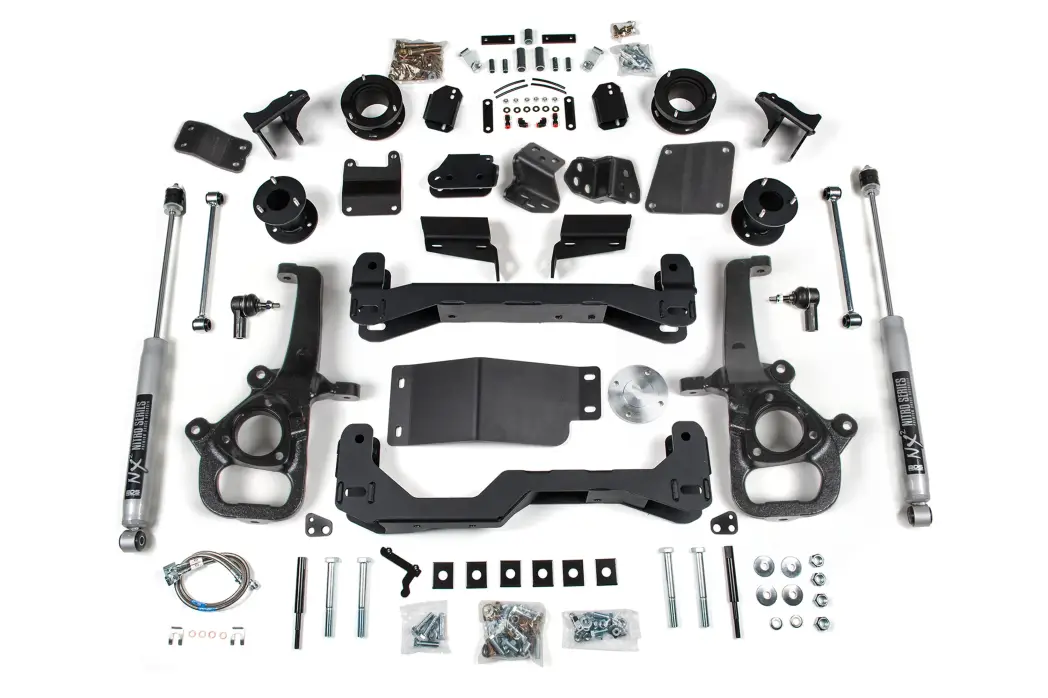

Component List

1 BDS022660 2025-2026 Ram 1500 Knuckle Box Kit - DRV - Standard Bore
1 BDS022661 2025-2026 Ram 1500 Knuckle Box Kit - PASS - Standard Bore
1 BDS022642 2019-2026 Ram Front Box Kit 1 of 2
1 BDS022644 2025-2026 Ram 1500 Front Box Kit 2 of 2
1 BDS022307 2019-2025 Ram 1500 Rear Box Kit
1 BDS022308 2019-2025 Ram 1500 Air Ride Box Kit
2 BDS85806 Shock - 26.78 x 15.96 x 2-3/8 - S50/EB2

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
