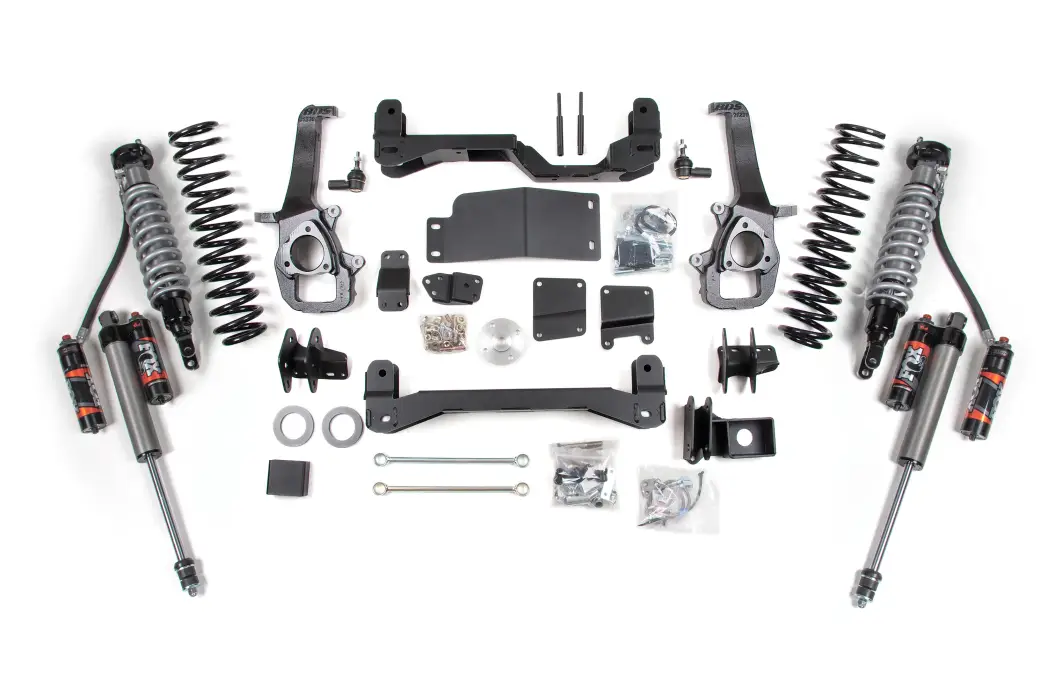

BDS1754PES | BDS Suspension 4 Inch Lift Kit With Fox 2.5 Performance Elite Coilover For Ram 1500 4WD | 3 Inch Coil Springs | Fox 2.5 Performance Elite Shocks

• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

Rear Lift Option

Coil Spring Spacer

• Maintains factory spring and ride characteristics

BDS Pro-Ride Coil Spring

• Progressive rate for the perfect blend of comfort and performance

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
2. Not recommended for AWD models.
3. Stock 17" and 18" wheels can not be re-installed. Stock 20" can be reinstalled with a factory tire.
4. Will not fit adjustable air suspension equipped models.
5. This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
6. TRX models will achieve approximately 1" of additional lift. This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider our 4" lift system for about 5" of lift or replace the TRX struts with standard struts for use with this system.
7. This kit is FMVSS No.126 Compliant.

Installation

Specification
