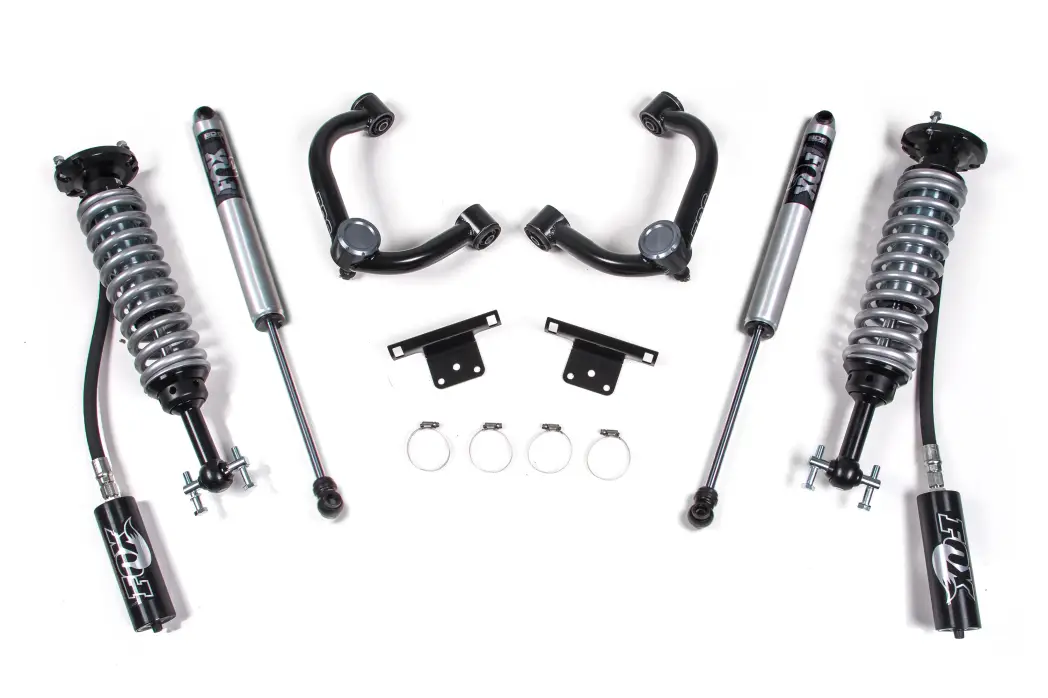

BDS1586FDSC | BDS Suspension 2 Inch Leveling Kit For Ford F-150 4WD | Fox 2.5 Coilovers With DSC Adjuster | Fox 2.0 Performance Series Shocks

• FOX 2.5 coilover shocks designed specifically for increase travel and the ability to soak up the roughest terrain
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance

• 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

DSC Adjustment

FOX 2.5 coilovers are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Coil-Over Option

FOX 2.5 Coil-Overs

• 2.5-inch smooth bore zinc plated seamless steel body
• Zinc-plated and double-clear coated for long lasting finish
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• Application-specific, adjustable 3.0 Eibach® racing springs
• 7/8-inch hard chrome-plated steel shafts
• Application specific valving to maximize performance

FOX 2.5 Coil-Overs with DSC Adjuster

All the FOX Coil-Over Advantages Plus:

• Dual Speed Compression (DSC) Adjuster
• Increases both low and high-speed compression levels up to 25%
• Easy twist knobs for Low-Speed and High-Speed Compression adjustment
• Provides added control and comfort for on-road use
• More aggressive damping for use off-road

Important Notes

1. Will not fit HD models (7 lug).
