BDS1548FDSC | BDS Suspension 2 Inch Lift Kit For Ford F-150 4WD | Fox 2.5 Coilover
For 2014-2020 Ford F-150 4WD
Description
Up the ante in your 2014-2020 Ford F150 truck with style and performance by installing this 2-inch lift kit featuring FOX Factory Seires 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes FOX 2.5 Factory Seires remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
Features & Benefits
- FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
- DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
- HD Upper control arms provide superior strength and proper alignment
- Adjustable height to fine tune
- Provides level stance from front to rear
- Easy, 100%
- Bolt On installation
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
FOX Factory Seires
FOX 2.5 Factory Series shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Important Notes
- Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
- Will not fit HD models (7 Lug).
Installation
Est. Install Time :
3 hrsDifficulty Level :
ModerateSpecialty Tools Needed :
Cut-off Tool, Reciprocating SawSpecification
- Front Lift Method : Coil-Over
- Front Lift Height : 2"
- Rear Lift Method : Block
- Rear Lift Height : 2"
- Shocks Included : Yes
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2014 | Ford | F-150 | Platinum | 4WD | ALL | Front and Rear | 2" |
| 2014 | Ford | F-150 | Lariat | 4WD | ALL | Front and Rear | 2" |
| 2014 | Ford | F-150 | XL | 4WD | ALL | Front and Rear | 2" |
| 2014 | Ford | F-150 | Limited | 4WD | ALL | Front and Rear | 2" |
| 2014 | Ford | F-150 | XLT | 4WD | ALL | Front and Rear | 2" |
| 2014 | Ford | F-150 | FX4 | ALL | ALL | Front and Rear | 2" |
| 2014 | Ford | F-150 | King Ranch | 4WD | ALL | Front and Rear | 2" |
| 2014 | Ford | F-150 | Tremor | ALL | ALL | Front and Rear | 2" |
| 2014 | Ford | F-150 | STX | 4WD | ALL | Front and Rear | 2" |
| 2015 | Ford | F-150 | ALL | 4WD | ALL | Front and Rear | 2" |
| 2016 | Ford | F-150 | Limited | 4WD | ALL | Front and Rear | 2" |
| 2016 | Ford | F-150 | Lariat | 4WD | ALL | Front and Rear | 2" |
| 2016 | Ford | F-150 | Platinum | 4WD | ALL | Front and Rear | 2" |
| 2016 | Ford | F-150 | King Ranch | 4WD | ALL | Front and Rear | 2" |
| 2016 | Ford | F-150 | XL | 4WD | ALL | Front and Rear | 2" |
| 2016 | Ford | F-150 | XLT | 4WD | ALL | Front and Rear | 2" |
| 2017 | Ford | F-150 | Limited | 4WD | ALL | Front and Rear | 2" |
| 2017 | Ford | F-150 | Platinum | 4WD | ALL | Front and Rear | 2" |
| 2017 | Ford | F-150 | Lariat | 4WD | ALL | Front and Rear | 2" |
| 2017 | Ford | F-150 | XL | 4WD | ALL | Front and Rear | 2" |
| 2017 | Ford | F-150 | King Ranch | 4WD | ALL | Front and Rear | 2" |
| 2017 | Ford | F-150 | XLT | 4WD | ALL | Front and Rear | 2" |
| 2018 | Ford | F-150 | Lariat | 4WD | ALL | Front and Rear | 2" |
| 2018 | Ford | F-150 | XLT | 4WD | ALL | Front and Rear | 2" |
| 2018 | Ford | F-150 | Platinum | 4WD | ALL | Front and Rear | 2" |
| 2018 | Ford | F-150 | Limited | 4WD | ALL | Front and Rear | 2" |
| 2018 | Ford | F-150 | XL | 4WD | ALL | Front and Rear | 2" |
| 2018 | Ford | F-150 | King Ranch | 4WD | ALL | Front and Rear | 2" |
| 2019 | Ford | F-150 | Lariat | 4WD | ALL | Front and Rear | 2" |
| 2019 | Ford | F-150 | Limited | 4WD | ALL | Front and Rear | 2" |
| 2019 | Ford | F-150 | XLT | 4WD | ALL | Front and Rear | 2" |
| 2019 | Ford | F-150 | King Ranch | 4WD | ALL | Front and Rear | 2" |
| 2019 | Ford | F-150 | Platinum | 4WD | ALL | Front and Rear | 2" |
| 2019 | Ford | F-150 | XL | 4WD | ALL | Front and Rear | 2" |
| 2020 | Ford | F-150 | Platinum | 4WD | ALL | Front and Rear | 2" |
| 2020 | Ford | F-150 | Limited | 4WD | ALL | Front and Rear | 2" |
| 2020 | Ford | F-150 | XL | 4WD | ALL | Front and Rear | 2" |
| 2020 | Ford | F-150 | Lariat | 4WD | ALL | Front and Rear | 2" |
| 2020 | Ford | F-150 | King Ranch | 4WD | ALL | Front and Rear | 2" |
| 2020 | Ford | F-150 | XLT | 4WD | ALL | Front and Rear | 2" |

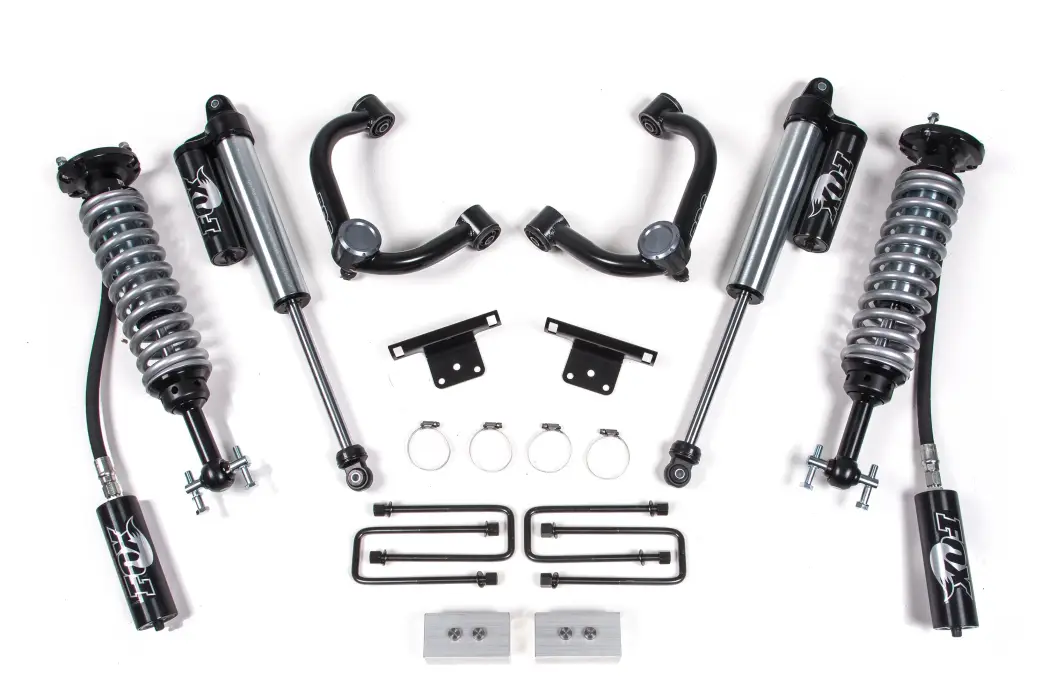

Component List
1 FOX88326002 Kit: 04-08 4wd & 09-On 2wd/4wd Ford F-150 Rear, 2.5 Series, P/B, 11.0", 0-1.5" Lift, DSC
1 BDS013204 2014-2020 Ford F150 Coilover 2"-3" Box kit
Tires & Wheels
35 x 12.5 with 20 x 9 and 5.5 in. Backspace
