BDS1426H | BDS Suspension 4 Inch Lift Kit For Jeep Wrangler JK Rubicon 2-Door

For 2007-2011 Jeep Wrangler JK 2-Door

BDS1426H
Pricing: $2,131.48
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Take your 2007-2011 Jeep Wrangler JK 2 Door to the next level and improve the ride with this 4-inch lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes 4" Pro-Ride coil springs capable of full coil bind and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry. The front suspension in this 4-inch lift kit is finished off with fixed length lower control arms with OE grade rubber bushings that re-position the front axle for proper alignment.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. For proper rear axle position and pinion angle this kit includes fixed length rear lower control arms and adjustable rear upper arms.

Features & Benefits

  • ProRide coil springs offer improved ride quality and more articulation
  • Sway bar quicker disconnects and extended rear link for improved offroad flex
  • New control arms to properly control the front and rear axle positions
  • Rear track bar bracket repositions rear axle under vehicle
  • BDS NX2 Nitro series shocks for improved damping
  • Allows clearance for 37" tires

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 16 x 8 and 4.5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Important Notes

  1. Will not fit 2wd models.
  2. The fixed front and rear lower control arms can be upgraded to the flex or adjustable arms listed in the accessories.
  3. The front driveshaft is maxed out at full droop and on certain models the driveshaft boot can contact the transmission pan. Replacement of the front driveshaft is recommended.
  4. Exhaust modification may be required. This kit is FMVSS No.126 Compliant

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Moderately Easy

Specialty Tools Needed :

Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 4"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2007JeepWranglerRubiconALLALLFront and Rear4"
2008JeepWranglerRubiconALLALLFront and Rear4"
2009JeepWranglerRubiconALLALLFront and Rear4"
2010JeepWranglerRubiconALLALLFront and Rear4"
2011JeepWranglerRubiconALLALLFront and Rear4"

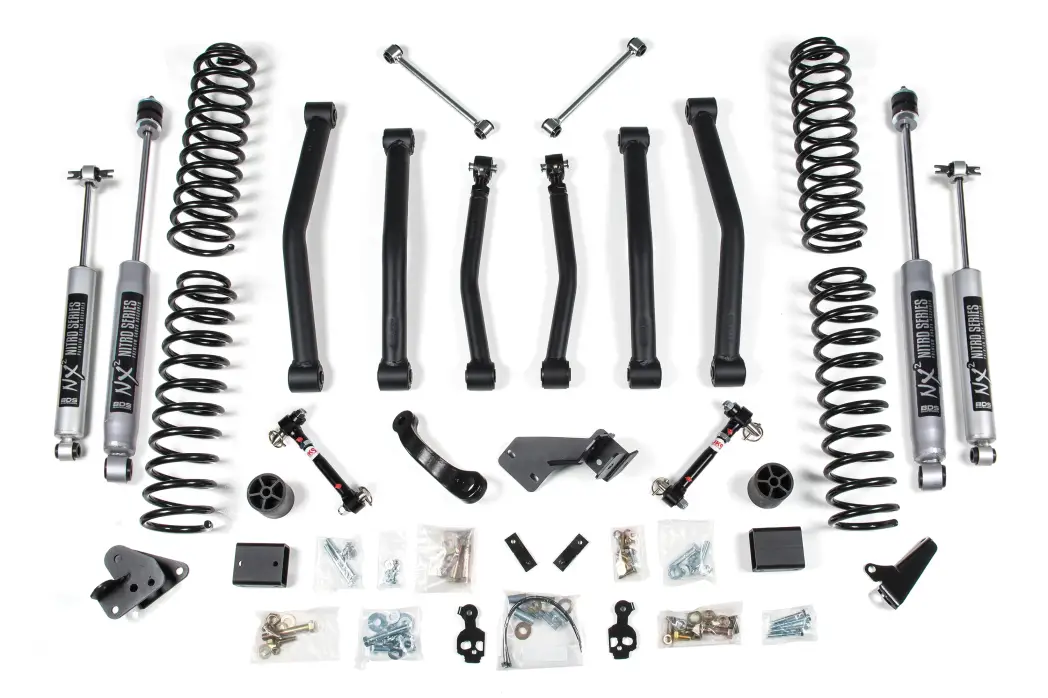

Component List

1 BDS014456 Jeep JK Rubicon 4" Box Kit
1 BDS034311 Coil Spring Box Kit: 2007-2018 Jeep Wrangler JK - 4" 2Dr - 3" 4Dr - Front Coil Springs
1 BDS034319 Coil Spring Box Kit: 2007-2018 Jeep Wrangler JK - 4" 2Dr - 3" 4Dr - Rear Coil Springs
1 BDS124331 2007-2018 Jeep Wrangler (JK) Front Fixed LCA Kit
1 BDS124339 Jeep Wrangler JK Rear Fixed LCA Kit
2 BDS85700 Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
2 BDS85959 Shock- 28.00 x 16.50 x 2-3/8 - BP18/EB1

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 16 x 8 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
