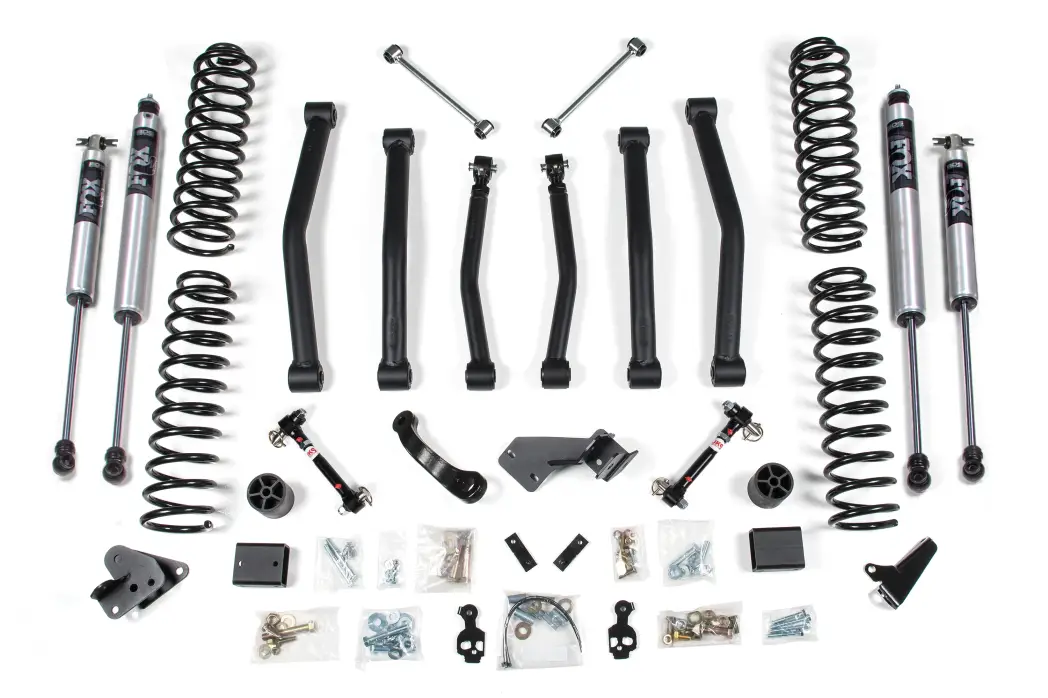

BDS1425FS | BDS Suspension 4 Inch Lift Kit For Jeep Wrangler JK 2-Door | Fox 2.0 performance Series Shocks

For 2007-2011 Jeep Wrangler JK 2-Door

BDS1425FS
Pricing: $3,061.60
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Take your 2007-2011 Jeep Wrangler JK 2 Door to the next level and improve the ride with this 4-inch lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes 4" Pro-Ride coil springs capable of full coil bind and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry. The front suspension in this 4-inch lift kit is finished off with fixed length lower control arms with OE grade rubber bushings that re-position the front axle for proper alignment.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. For proper rear axle position and pinion angle this kit includes fixed length rear lower control arms and adjustable rear upper arms. Round out this 4" lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Features & Benefits

  • ProRide coil springs offer improved ride quality and more articulation
  • Sway bar quicker disconnects and extended rear link for improved offroad flex
  • New control arms to properly control the front and rear axle positions
  • Rear track bar bracket repositions rear axle under vehicle
  • Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
  • Allows clearance for 37" tires

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 16 x 8 and 4.5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Will not fit 2wd models.
  2. The fixed front and rear lower control arms can be upgraded to the flex or adjustable arms listed in the accessories.
  3. The front driveshaft is maxed out at full droop and on certain models the driveshaft boot can contact the transmission pan. Replacement of the front driveshaft is recommended.
  4. Exhaust modification may be required.This kit is FMVSS No.126 Compliant

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Moderately Easy

Specialty Tools Needed :

Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 4"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2007JeepWranglerXALLALLFront and Rear4.5"
2007JeepWranglerSaharaALLALLFront and Rear4.5"
2008JeepWranglerSaharaALLALLFront and Rear4.5"
2008JeepWranglerXALLALLFront and Rear4.5"
2009JeepWranglerSaharaALLALLFront and Rear4.5"
2009JeepWranglerX-SALLALLFront and Rear4.5"
2009JeepWranglerXALLALLFront and Rear4.5"
2010JeepWranglerSaharaALLALLFront and Rear4.5"
2010JeepWranglerIslanderALLALLFront and Rear4.5"
2010JeepWranglerSportALLALLFront and Rear4.5"
2010JeepWranglerXALLALLFront and Rear4.5"
2011JeepWranglerXALLALLFront and Rear4.5"
2011JeepWrangler70th AnniversaryALLALLFront and Rear4.5"
2011JeepWranglerSaharaALLALLFront and Rear4.5"
2011JeepWranglerSportALLALLFront and Rear4.5"

Component List

1 BDS014454 2007-2018 Jeep JK 4.5in Box Kit
1 BDS034311 Coil Spring Box Kit: 2007-2018 Jeep Wrangler JK - 4" 2Dr - 3" 4Dr - Front Coil Springs
1 BDS034319 Coil Spring Box Kit: 2007-2018 Jeep Wrangler JK - 4" 2Dr - 3" 4Dr - Rear Coil Springs
1 BDS124331 2007-2018 Jeep Wrangler (JK) Front Fixed LCA Kit
1 BDS124339 Jeep Wrangler JK Rear Fixed LCA Kit
2 FOX98224921 Fox 2.0 Shock 25.12 x 15.55 x 2- S50/EB1
2 FOX98224959 Fox 2.0 Shock 27.95 x 17.35 x 2-BP18/EB1

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 16 x 8 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
