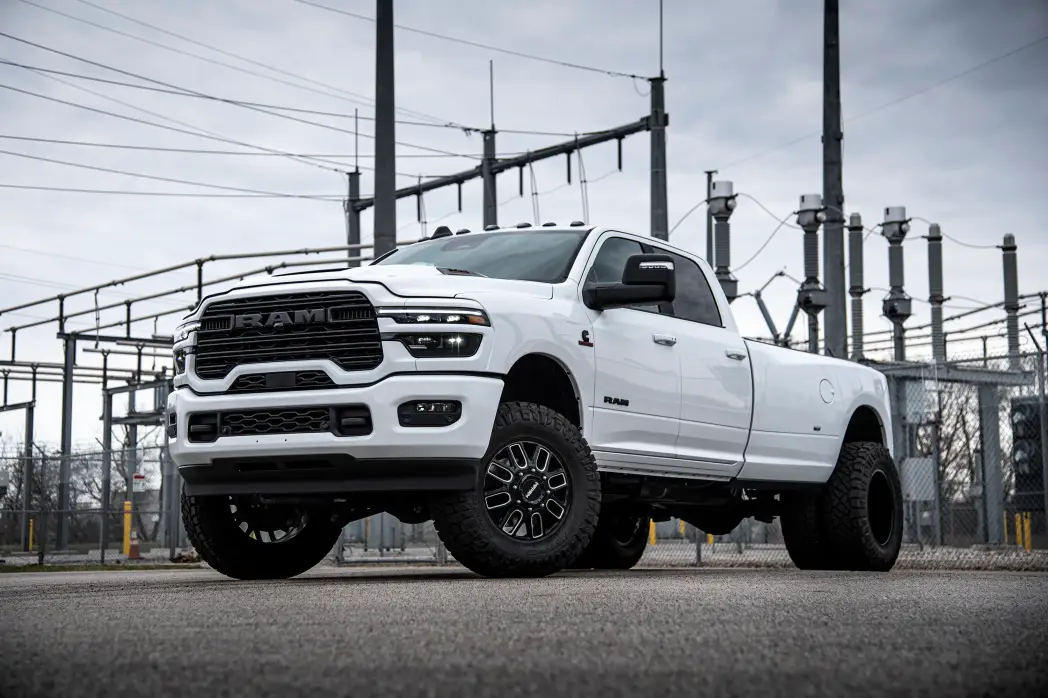

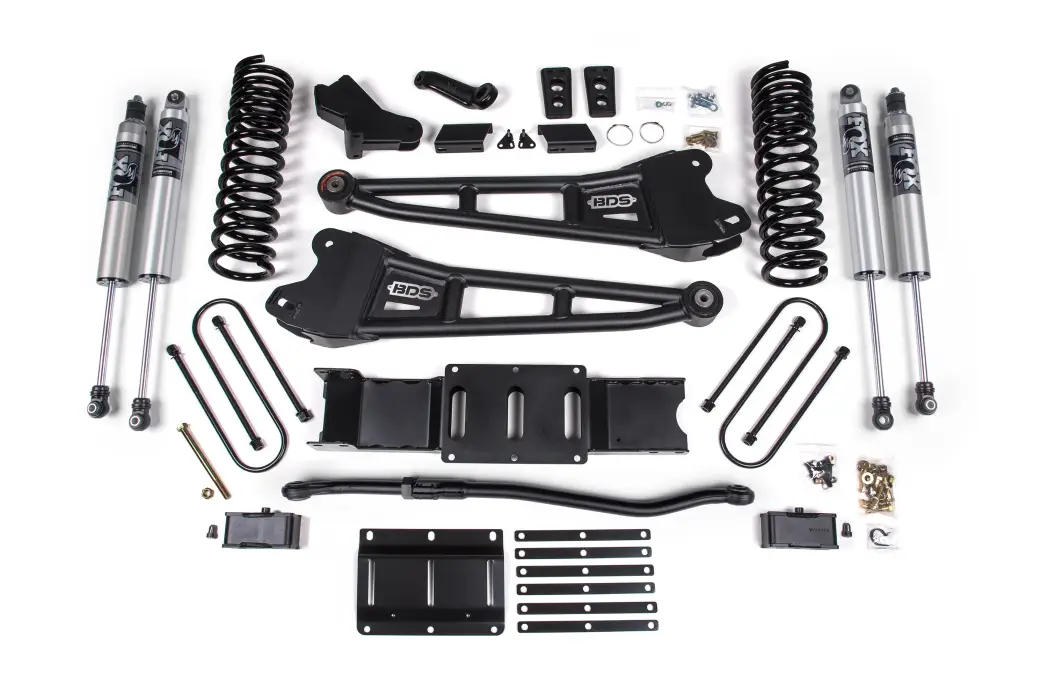

BDS2152PS | BDS Suspension 4 Inch Lift Kit With Radius Arms For Ram 3500 4WD | 2 Inch Block Kit Without Overload | Fox 2.5 Performance Series HTO Shocks | Diesel

• Standard travel shocks, does not come with Transfer case indexing ring.

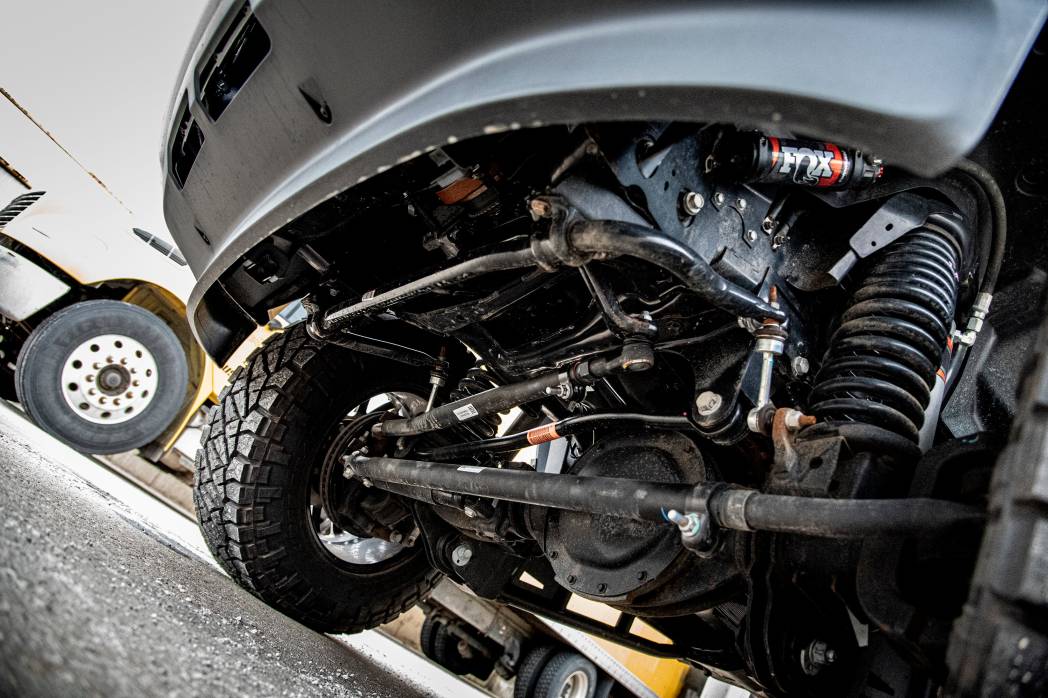

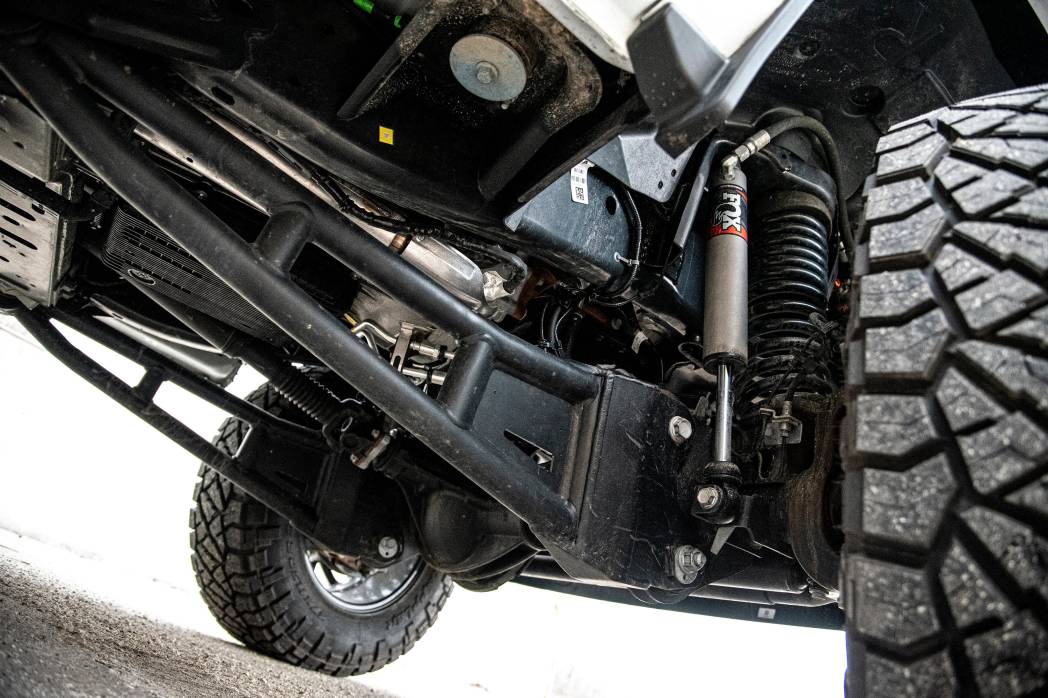

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength dual rate coil springs for a great ride on any terrain
• Forged front adjustable track bar allows you to re-center axle
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 or upgrade to Fox shocks to suit your needs.

• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace

Rear Lift Option

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf, or an OE Air Assist spring.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

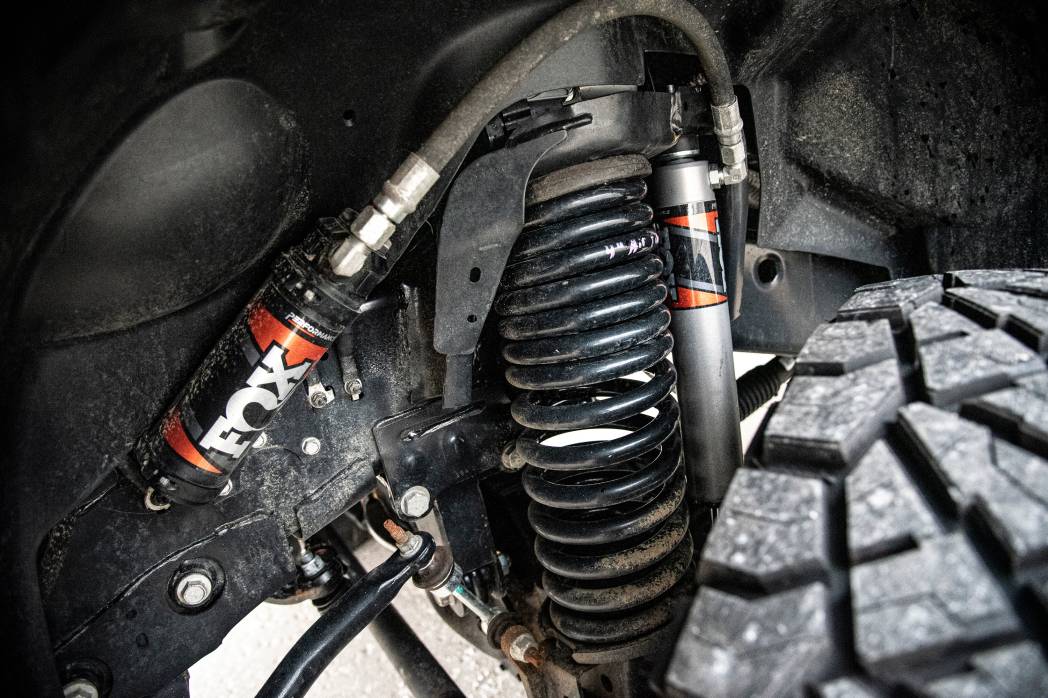

FOX 2.5 Performance Series HTO

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. Diesel models only
2. Special literature required: OE Service Manual for model/year of vehicle. Refer to manual for proper disassembly/reassembly procedures of OE and related components.
3. Adhere to recommendations when replacement fasteners, retainers and keepers are called out in the OE manual.
4. Larger rim and tire combinations may increase leverage on suspension, steering, and related components. When selecting combinations larger than OE, consider the additional stress you could be inducing on the OE and related components.
5. Post suspension system vehicles may experience drive line vibrations. Angles may require tuning, slider on shaft may require replacement, shafts may need to be lengthened or trued, and U-joints may need to be replaced.
6. Secure and properly block vehicle prior to installation of BDS Suspension components. Always wear safety glasses when using power tools.
7. If installation is to be performed without a hoist, BDS Suspension Co. recommends rear alterations first.
8. Due to payload options and initial ride height variances, the amount
