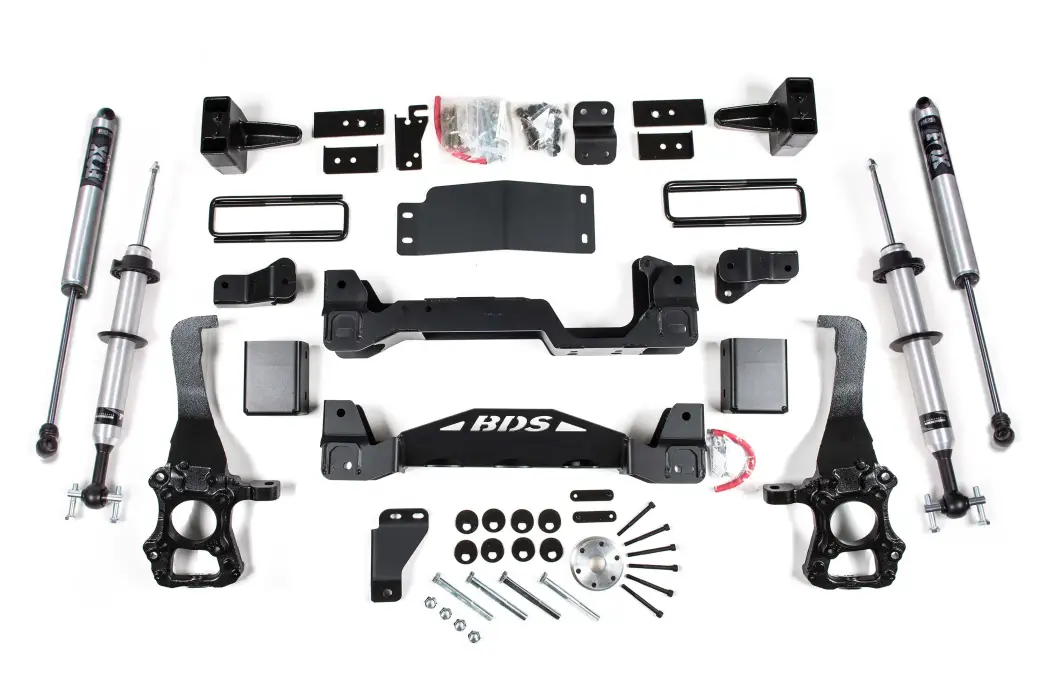

BDS1304FSR | BDS Suspension 6 Inch Lift Kit For Ford F-150 4WD | Fox 2.0 Strut | 3 Inch Lift Block Kit
For 2014 Ford F-150 4WD
Description
Take your 2014 Ford F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and superior off-road protection, while addressing suspension and steering geometry. It is complemented by the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, and supplied hardware, resulting in excellent on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, FOX 2.0 performance series strut, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear, BDS utilizes high-strength cast steel lift blocks and longer u-bolts to lift and level the stance along with FOX 2.0 Performance Series shocks.
Features & Benefits
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
FOX 2.0 Snap Ring Strut
The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.
A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow you to tune your stance
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new, taller ride height using a pair of high-strength, CNC-machined ductile cast iron steering knuckle designs that work in conjunction with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
Rear Lift Option
4 Inch Block Kit
- Level to tail high appearance
3 Inch Block Kit
- Tail low to level stance
Important Notes
- Requires frame bracket modification and welding.
- 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting the tire to ensure proper clearance to BDS steering knuckle.
- 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
- E-brake bracket required for factory powersteps (123018) Block kits replace factory 1-1/4" block.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
- Will not fit HD models (7 lug).
- This kit is FMVSS No.126 Compliant
Installation
Est. Install Time :
8-10 hrsDifficulty Level :
DifficultSpecification
- Front Lift Method : Snap Ring Strut
- Front Lift Height : 6"
- Rear Lift Method : Block
- Rear Lift Height : 3"
- Shocks Included : Yes
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2014 | Ford | F-150 | Tremor | ALL | ALL | Front and Rear | 6" |
| 2014 | Ford | F-150 | FX4 | ALL | ALL | Front and Rear | 6" |
| 2014 | Ford | F-150 | Platinum | 4WD | ALL | Front and Rear | 6" |
| 2014 | Ford | F-150 | King Ranch | 4WD | ALL | Front and Rear | 6" |
| 2014 | Ford | F-150 | Lariat | 4WD | ALL | Front and Rear | 6" |
| 2014 | Ford | F-150 | XL | 4WD | ALL | Front and Rear | 6" |
| 2014 | Ford | F-150 | XLT | 4WD | ALL | Front and Rear | 6" |
| 2014 | Ford | F-150 | Limited | 4WD | ALL | Front and Rear | 6" |
| 2014 | Ford | F-150 | STX | 4WD | ALL | Front and Rear | 6" |
Component List
1 BDS023622 2009-2014 Ford F150 Box Kit (3of4)
1 BDS023623 2009-2014 Ford F150 Box Kit (4of4)
1 BDS023625 2009-2014 Ford F150 4-6in Box Kit (1of4)
1 BDS023626 2009-2014 Ford F150 4-6in Box Kit (2of4)
2 FOX98662001 BDS, 2014-2024 Ford F-150, Front Coilover, Snap Ring, PS, 2.0, IFP, 6.1", 4 & 6" Lift
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Tires & Wheels
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5.5 in. Backspace
Details
- BDS1304FSR
- BDS1304FSR
- 840416400748
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
