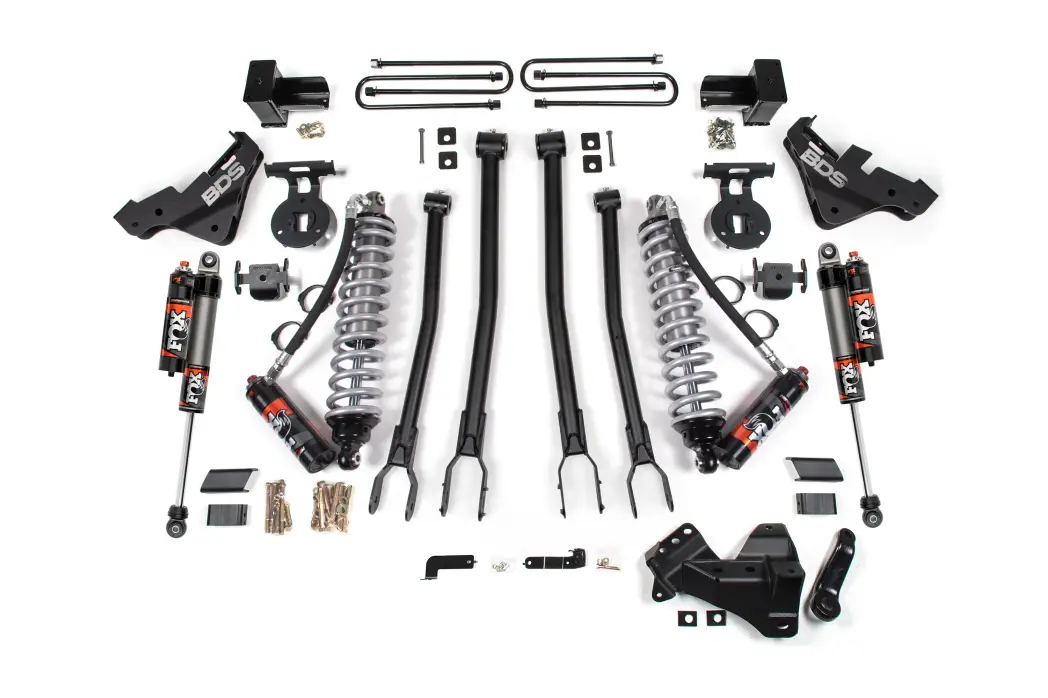

BDS1225PES | BDS Suspension 4 Inch Lift Kit 4-Link Fox 2.5 Performance Elite Coil-Over Conversion For Ford F-450 Super Duty 4WD | Fox 2.5 Performance Elite Shocks

• BDS Forged pitman arm to maximize steering radius at 4" of lift.
• BDS 4-Link suspension which holds caster through travel
• Improved Ride quality with our 4-link suspension.
• Superior axle articulation with a 4-link.
• Better suspension geometry with a 4-link to prevent anti-dive while braking, results in a more planted feel.
• Choice of FOX 2.5 Performance Series HTO or FOX 2.5 Performance Elite Shocks in the rear

• 37 x 12.5 with 18 x 9 and in. Backspace
• 37 x 12.5 with 20 x 10 and in. Backspace

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Shock Option

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

FOX 2.5 Performance Series HTO

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. Fits diesel models only
2. These kits are designed for the F-450 style front end . They do not work with the standard Ford Super Duty F-250/350 axle width.
3. Vehicles with radius arm mounted ride height sensors will require BDS123303
4. Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
5. Installation requires a torque wrench capable of 405 ft-lbs.
6. Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
