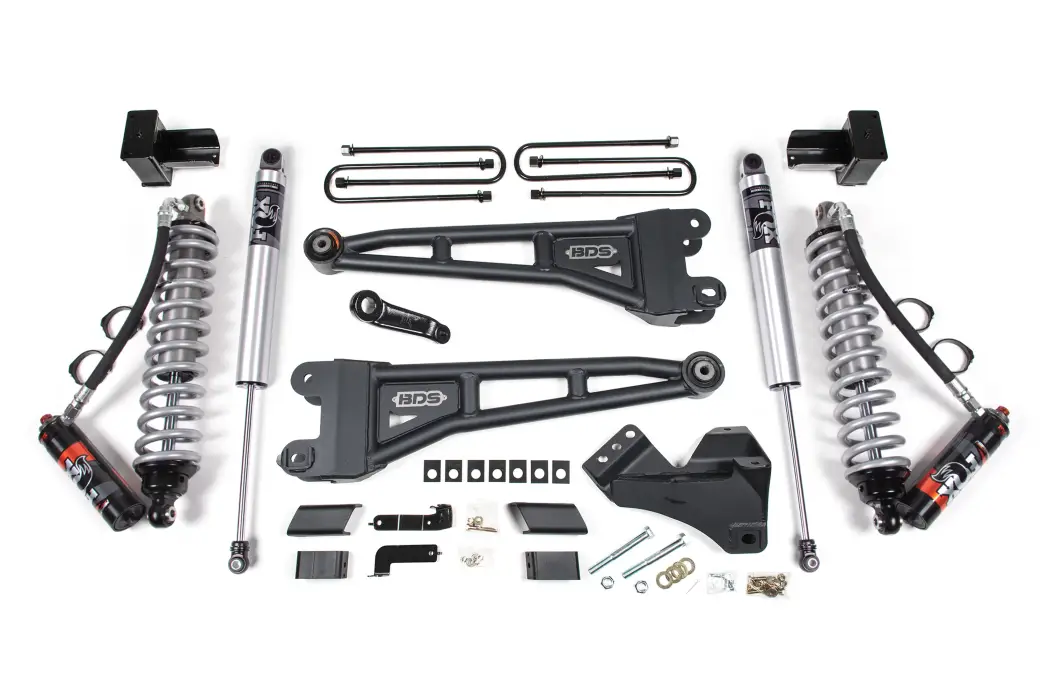

BDS1224PPS | BDS Suspension 4 Inch Lift Kit With Radius Arms For Ford F-450 Super Duty 4WD | Fox 2.5 Performance Elite Coil-Over Conversion | Fox 2.5 Performance Series HTO Shocks

• BDS Forged pitman arm to maximize steering radius at 4" of lift.
• BDS Radius arms are made from heavy duty DOM steel.
• BDS Radius arms restore proper caster angle, axle alignment, and suspension geometry, which helps maintain predictable steering, stable handling, and prevents wander or tire wear.
• Rather than rigid joints, the kit uses OE-style rubber bushings at the frame mounts. These bushings isolate noise and vibration , provide a smoother, quieter ride, and require no ongoing greasing or maintenance
• Choice of FOX 2.5 Performance Series HTO or FOX 2.5 Performance Elite Shocks in the rear

• 37 x 12.5 with 18 x 9 and in. Backspace
• 37 x 12.5 with 20 x 10 and in. Backspace

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Rear Shock Option

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

FOX 2.5 Performance Series HTO

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. These kits are designed for the F-450 style front end . They do not work with the standard Ford Super Duty F-250/350 axle width.
