440-401007-N | aFe Power CONTROL PFADT Series Drag Race Rear Sway Bar For Chevrolet Corvette C5/C6

For 1997-2013 Chevrolet Corvette Gas V8-6.2L / 2001-2004 Chevrolet Corvette Z06 (C5) Gas V8-5.7L / 2006-2013 Chevrolet Corvette Z06 (C6) Gas V8-7.0L / 2009-2013 Chevrolet Corvette ZR1 (C6) Gas V8-6.2L (sc)

440-401007-N
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Was: $2,192.40
Sale: $2,111.51
Save: 4%
Save: $80.89
Qty:

Description

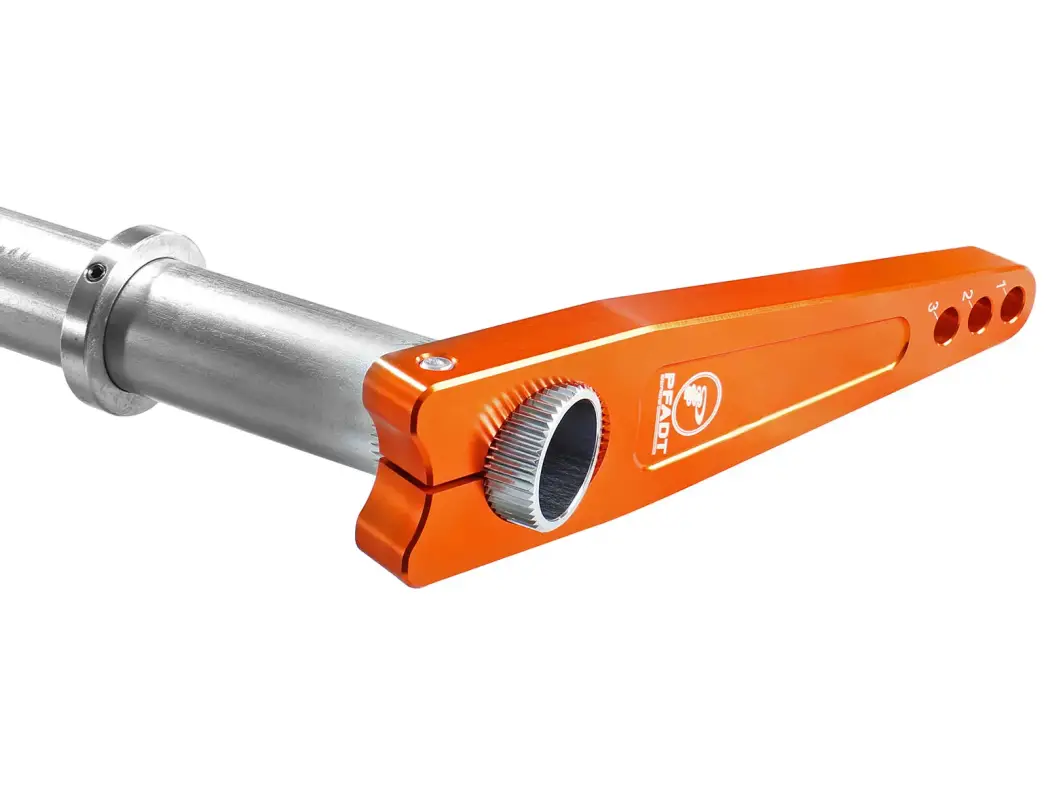

aFe CONTROL PFADT Series Drag Racing Rear Sway Bar for the 1997-2013 C5/C6 Corvettes are designed for those that are looking for the ultimate control down the strip. The addition of a stiff rear sway bar reduces the independence of the rear suspension increasing traction of both rear tires. The PFADT Series Drag Racing Rear Sway Bar is the ultimate upgrade for improving launch performance. This 3-piece sway bars utilize a 4130 Chromoly torsion bar with splined ends and a clear zinc finish for corrosion resistance and durability.

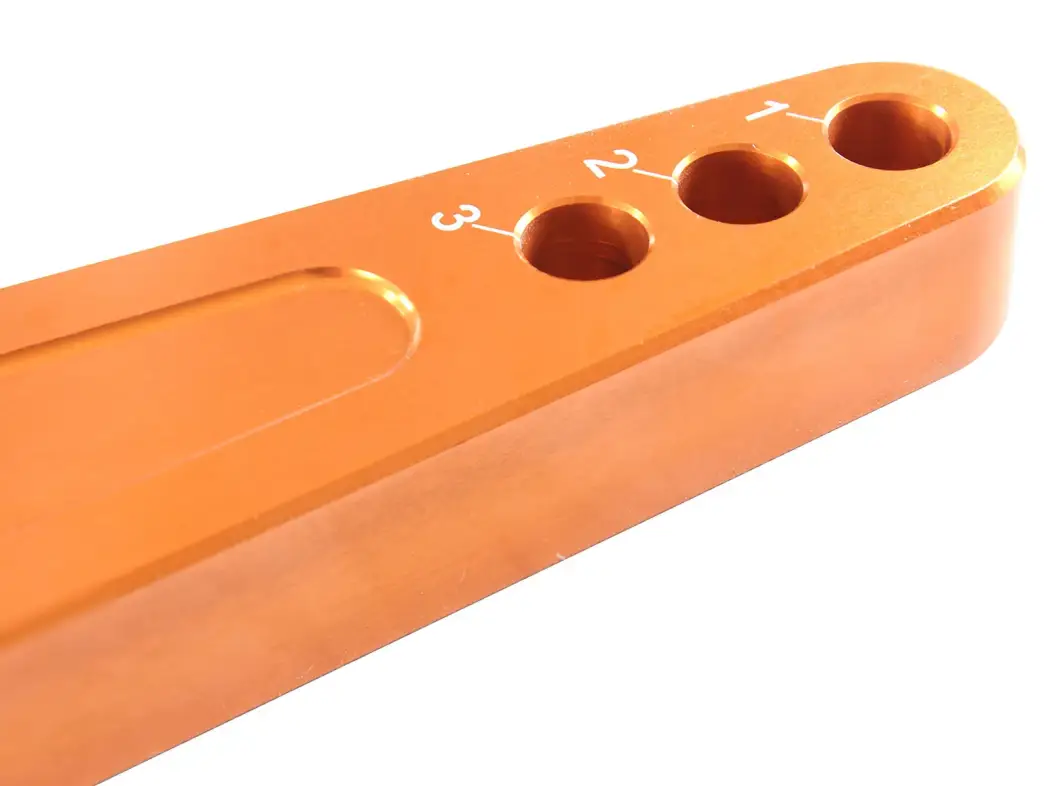

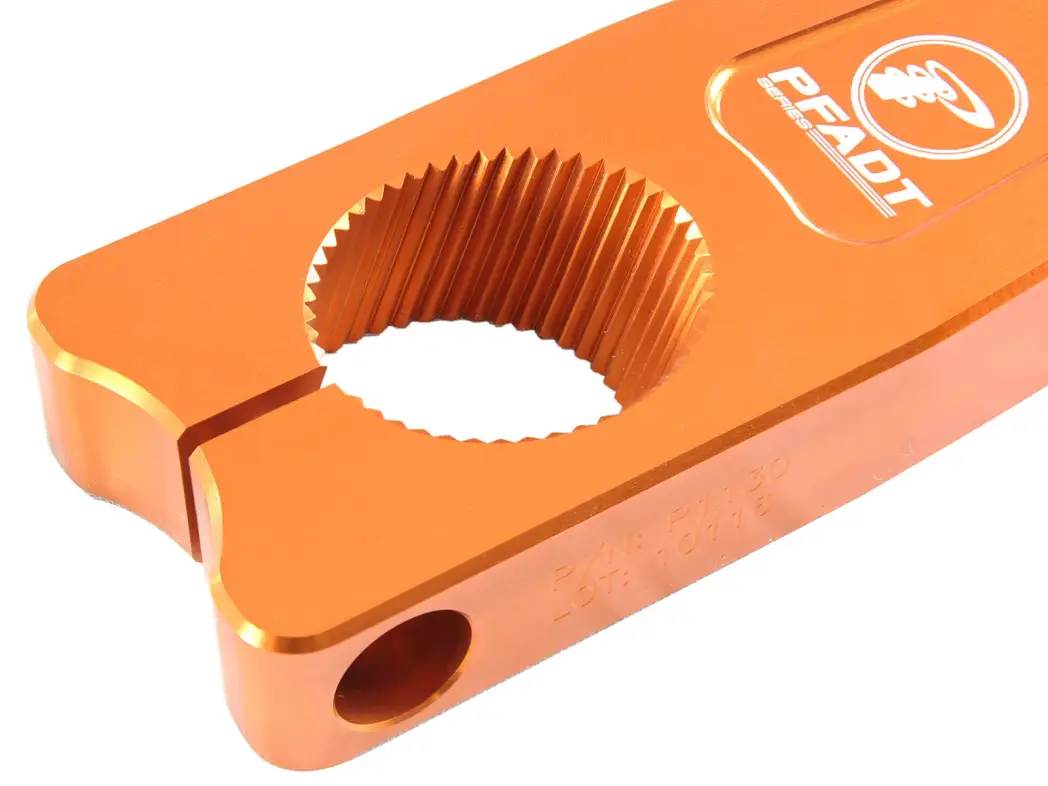

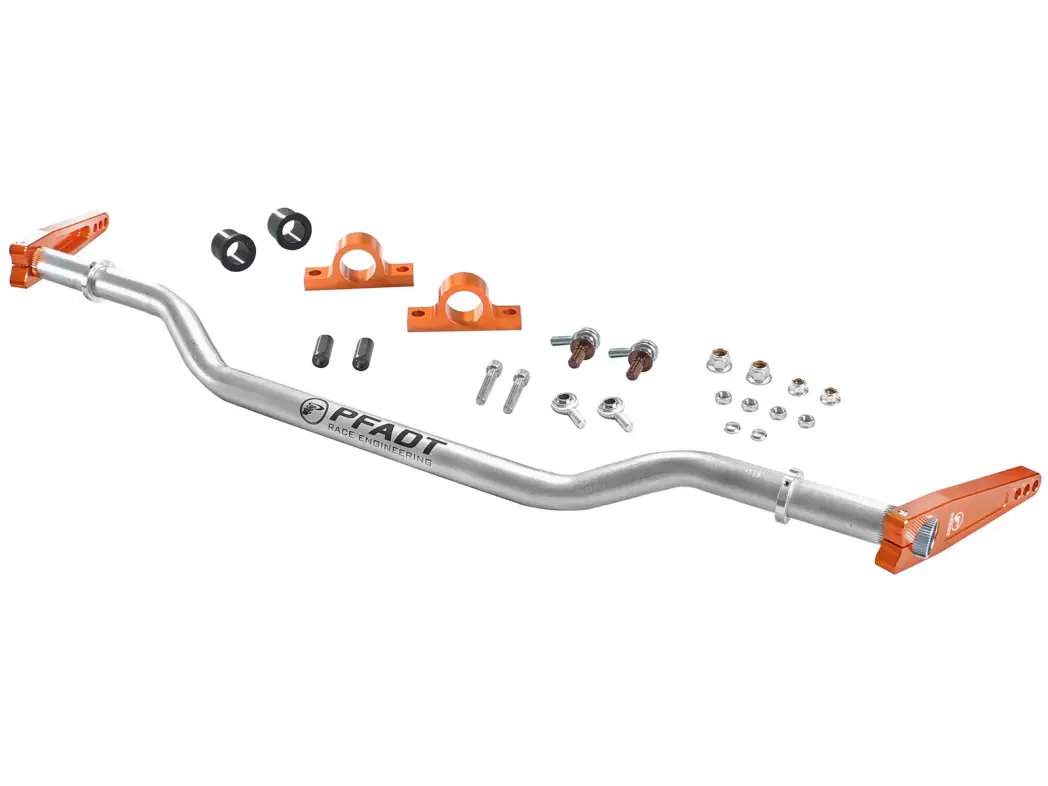

The kit features ultra-lightweight 7050-T7 aluminum arms that are anodized orange and feature broached splines with laser etched adjustment markers giving you 3 different sway bar rate combinations. The adjustable end links are designed to be lightweight and strong while allowing maximum articulation. The use of a turnbuckle allows precise corner balancing without having to disconnect the end link from the car. Included in the kit are solid 6061-T6 pillow block bushing mounts and Moly (Molybdenum) impregnated nylon bushings. The kit comes complete with all necessary hardware and centering rings. The PFADT Series Drag Racing Rear Sway Bar was designed to be the perfect addition to Corvette racecars and are not intended to be driven on the street, or public roads.

aFe CONTROL Suspension products are engineered and manufactured in our Corona, California manufacturing facility.

Emissions Disclaimer

This product does not require a CARB EO#.

Details

  • 4130 Chromoly 31.75mm 3-Way Adjustable Rear Bar
  • Ultra-Lightweight Anodized 7050-T7 Aluminum Arms
  • Includes 6061-T6 Aluminum Solid Pillow Block Rear Bushing Mounts and Solid Nylon Bushings

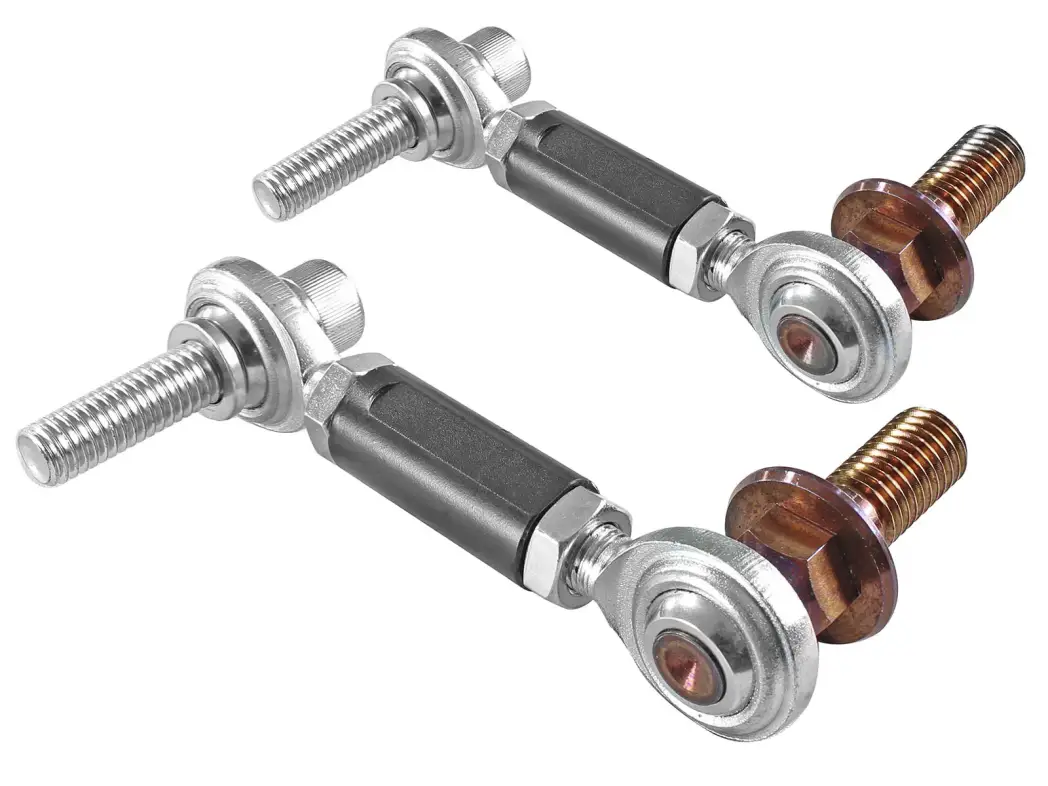

  • Lightweight 3/8" Rod End Endlinks, Aluminum Turn Buckles and Articulation Spacers
  • Direct Fit Installation Requires No Modifications

Application List

1997-2004 Chevrolet Corvette Gas V8-5.7L
2005-2007 Chevrolet Corvette Gas V8-6.0L
2008-2013 Chevrolet Corvette Gas V8-6.2L
2001-2004 Chevrolet Corvette Z06 (C5) Gas V8-5.7L
2006-2013 Chevrolet Corvette Z06 (C6) Gas V8-7.0L
2009-2013 Chevrolet Corvette ZR1 (C6) Gas V8-6.2L (sc)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W15.0000” x H6.0000” x L45.0000”
