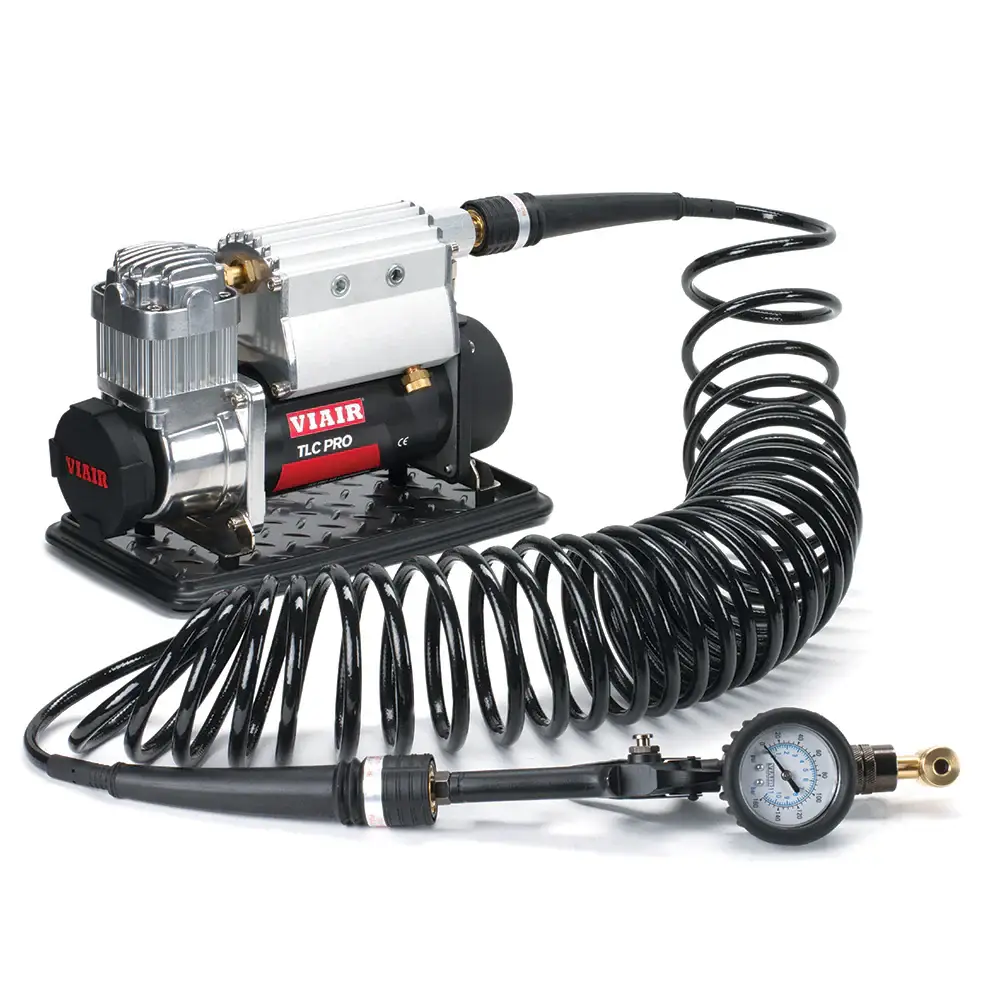

42046 | VIAIR TLC PRO Compressor Kit 150 PSI Pneumatic System

TLC PRO Compressor Kit 150 PSI Pneumatic System

42046
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $724.15
Qty:

Description

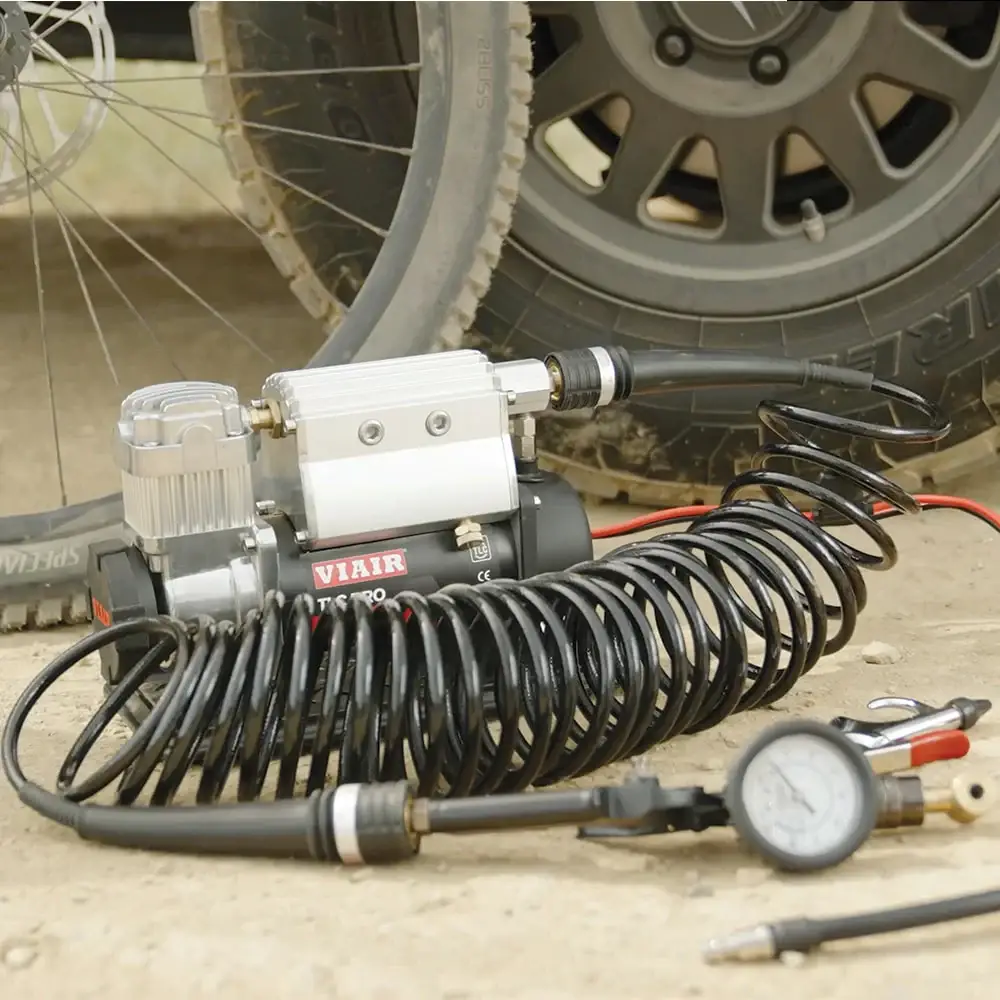

The no-compromise kit for the rider and adventurer who wants a top-notch pneumatic system for their car, van or truck. The TLC PRO packs 150PSI in a quarter-gallon tank allowing you to easily setup tubeless, inflate vehicle tires, perform blowing tasks and even use air tools in a road side emergency. Equipped with VIAIR's™ bulletproof 400C motor, the TLC PRO is the choice for technical riders worldwide.

SPECIFICATIONS

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 0.25 Gallon
  • Max. Amp Draw: 30-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -4°F
  • Dimensions: 10.87″L x 5.83″W x 7.48″H
  • Net Weight: 11.80 lbs.
  • Power Cord Length: 8 ft.
  • Air Hose Length: 30 ft.
    PN 42046: In Rush Current (A) @ 0 PSI: 120
  • PN 42046: dB @ 0 PSI: 70.9

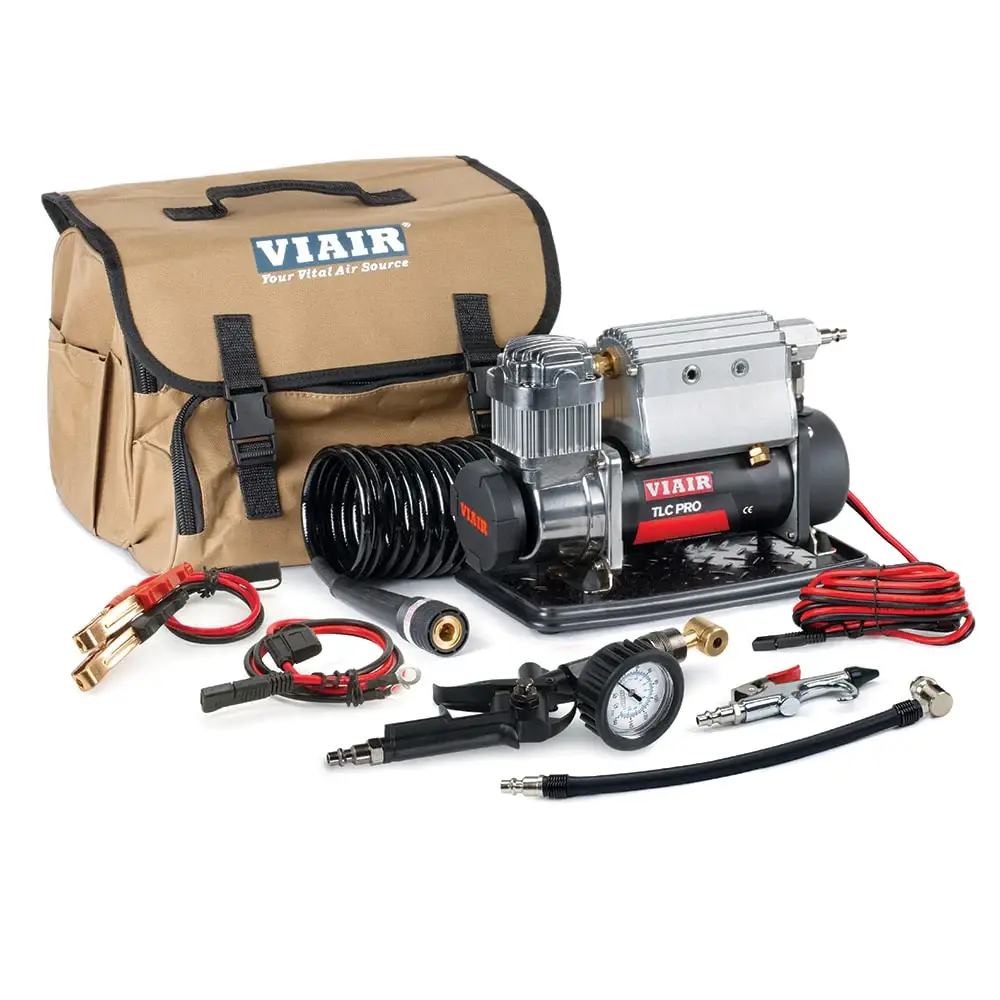

FEATURES:

  • 0.25 Gallon Extruded Aluminum Air Tank

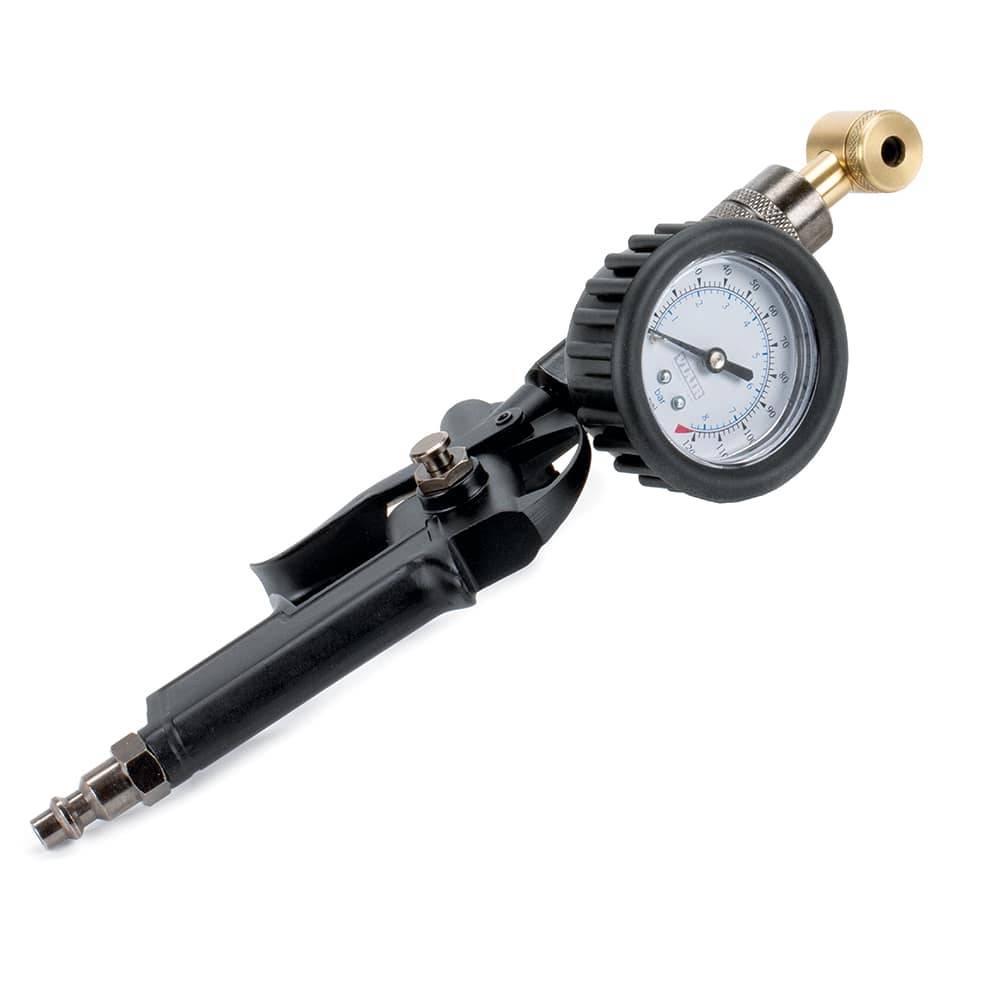

  • Shop-Style Inflator with 160 PSI Gauge
  • Fully Rebuildable Presta Head Attachment

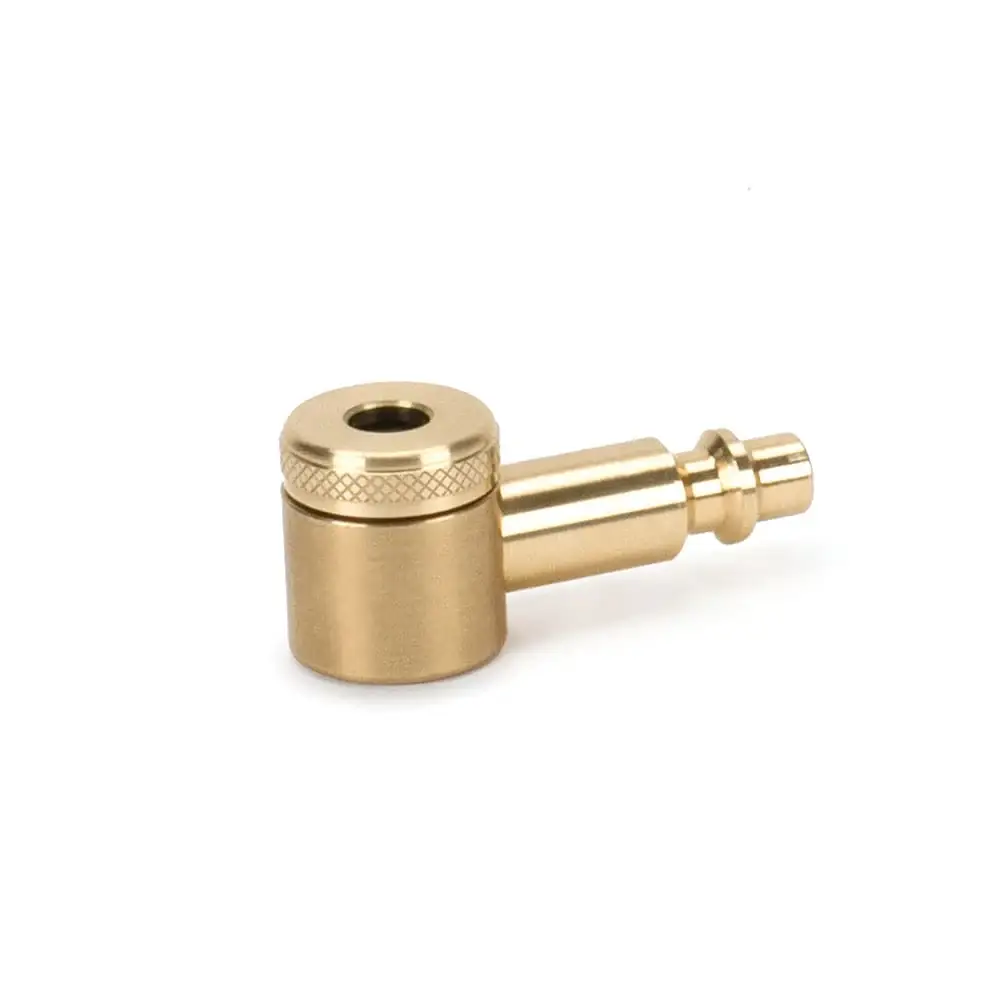

  • 90° Twist-on Schrader Attachment

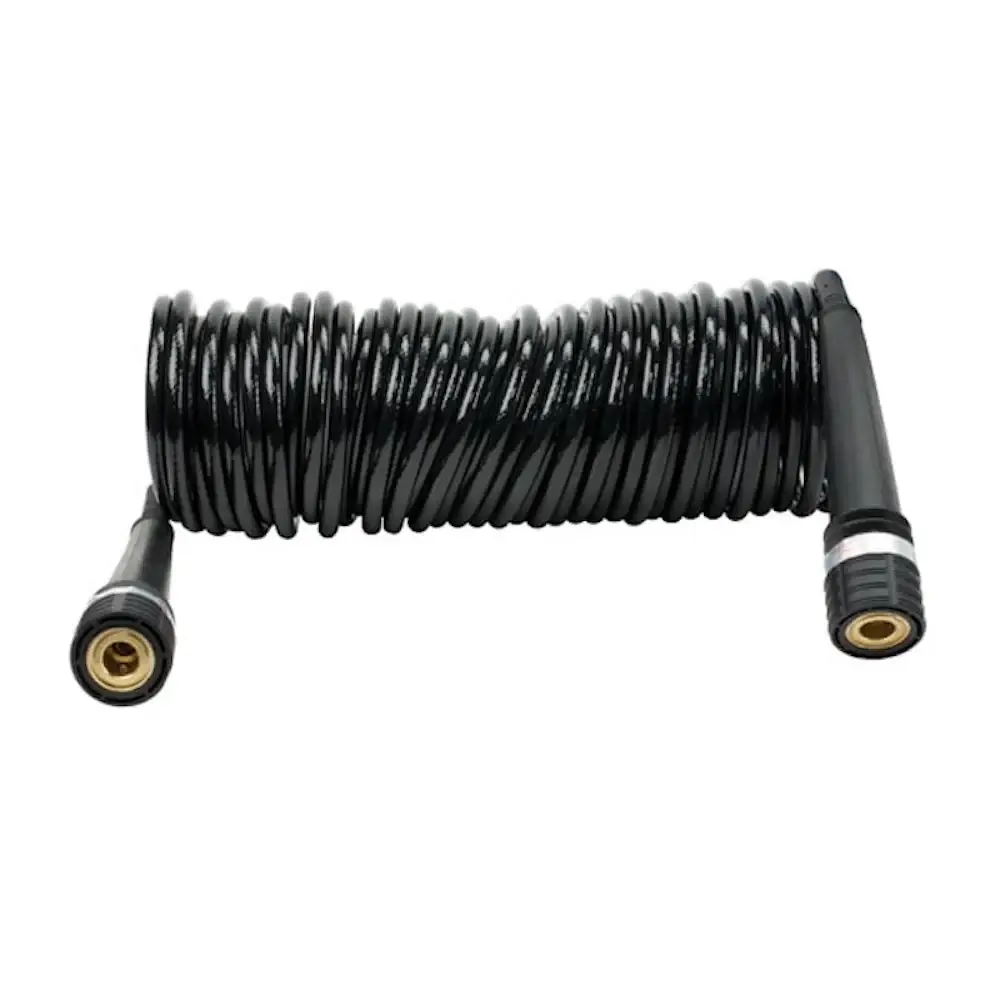

  • 30ft. Inside Braided Coil Hose
  • Blow Gun
  • Extruded Aluminum Air Tank
  • 2-Pin SAE Connection with Battery Terminal and Clamp Options
  • 40-Amp Inline Fuse Holder
  • Vibration-Resistant Diamond-Plate Sand Tray
  • Deluxe Carry Bag

FILL RATES

TIRE FILL RATE

31″ X 10.5″ FILL RATE
0 to 40 PSI 4 min. 26 sec. (± 10 sec.)
10 to 40 PSI 3 min. 26 sec. (± 05 sec.)
33″ X 12.5″ FILL RATE
0 to 40 PSI 4 min. 32 sec. (± 10 sec.)
10 to 40 PSI 3 min. 27 sec. (± 05 sec.)
35″ X 12.5″ FILL RATE
0 to 40 PSI 5 min. 07 sec. (± 15 sec.)
10 to 40 PSI 3 min. 51 sec. (± 05 sec.)

ROAD BIKE TIRE FILL RATE - * For 12V Only

25MM FILL RATE
0 to 70 PSI 5 sec.
0 to 100 PSI 10 sec.
28MM FILL RATE
0 to 70 PSI 7 sec.
0 to 100 PSI 12 sec.
30MM FILL RATE
0 to 70 PSI 8 sec.
0 to 100 PSI 14 sec.
32MM FILL RATE
0 to 70 PSI 10 sec.
0 to 100 PSI N/A

GRAVEL/HYBRID BIKE TIRE FILL RATE - * For 12V Only

35MM FILL RATE
0 to 30 PSI <3 sec.
0 to 50 PSI 6 sec.
38MM FILL RATE
0 to 30 PSI 3 sec.
0 to 50 PSI 7 sec.
42MM FILL RATE
0 to 30 PSI 4 sec.
0 to 50 PSI 9 sec.
45MM FILL RATE
0 to 30 PSI 4 sec.
0 to 50 PSI 10 sec.

MOUNTAIN BIKE TIRE FILL RATE - * For 12V Only

2.0" FILL RATE
0 to 20 PSI 5 sec.
0 to 40 PSI 12 sec.
2.3" FILL RATE
0 to 20 PSI 6 sec.
0 to 40 PSI 15 sec.
2.6" FILL RATE
0 to 20 PSI 7 sec.
0 to 40 PSI 17 sec.
3.0" FILL RATE
0 to 20 PSI 9 sec.
0 to 40 PSI 19 sec.

Application List

Universal - Check Specification Before Ordering

Details

  • 42046
  • 42046
  • VIAIR
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 24.0 lbs.
  • W7.0000” x H9.0000” x L10.0000”
  • Free Ground Shipping Unavailable | This Product Does Not Qualify*

Documents
