SPRTR19-CHRM485 | VIAIR Dual 485C VMS With Bracket For Most Mercedes-Benz Sprinter Van 2019 & Older | Chrome

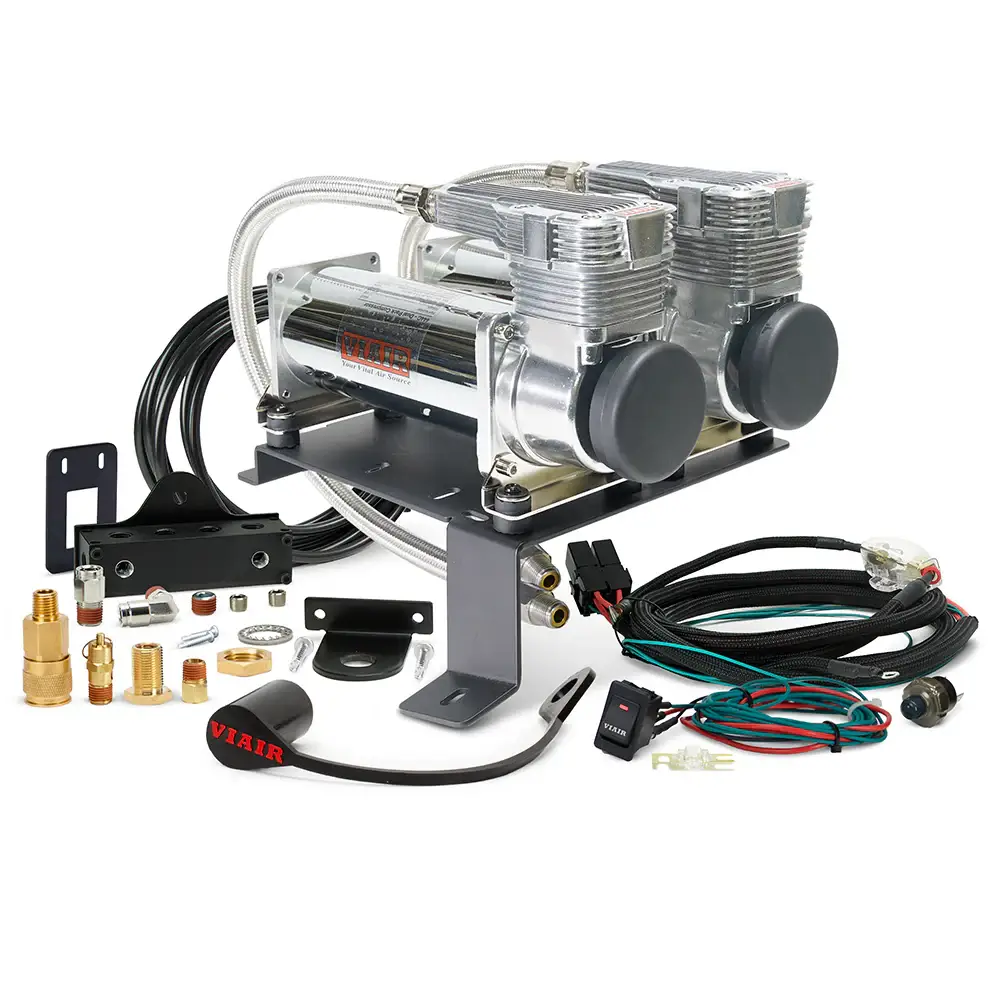

Dual 485C VMS With Bracket For Most Mercedes-Benz Sprinter Van 2019 & Older
Description
Dual 485C VMS System with bracket for 2019+ Mercedes-Benz Sprinter Van!
VIAIR Dual Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM and fast tire fill with unsurpassed durability. These kits come with all components necessary to install a fully functioning system. A vehicle-specific bracket provides an easy mounting platform in the engine bay of your Sprinter Van. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds.
485C (200 PSI): One of our finest 12-volt compressors available. Well-suited for tire pressure management, air suspension, air horns, and other general compressed air needs. One of the only compressors that has 100% Duty Cycle @ 200PSI.
SPECIFICATIONS
- CFM: 3.92 @ 0 PSI
- (2) 485C (Stealth Black or Chrome) Compressors w/ Thermal Overload Protectors
- Complete dual wiring harness w/ 80A fuse holder
- Air Locker compatible
- Sealed compressor with IP rating of IP67(Waterproof/Dustproof)Designed to be air tank ready (Air tank optional)
- 8-Port Billet Manifold
- Pro Series Air Source Relocation Kit
- Illuminated Rocker Switch
FEATURES:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Combined Max. Amp Draw: 46-Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F

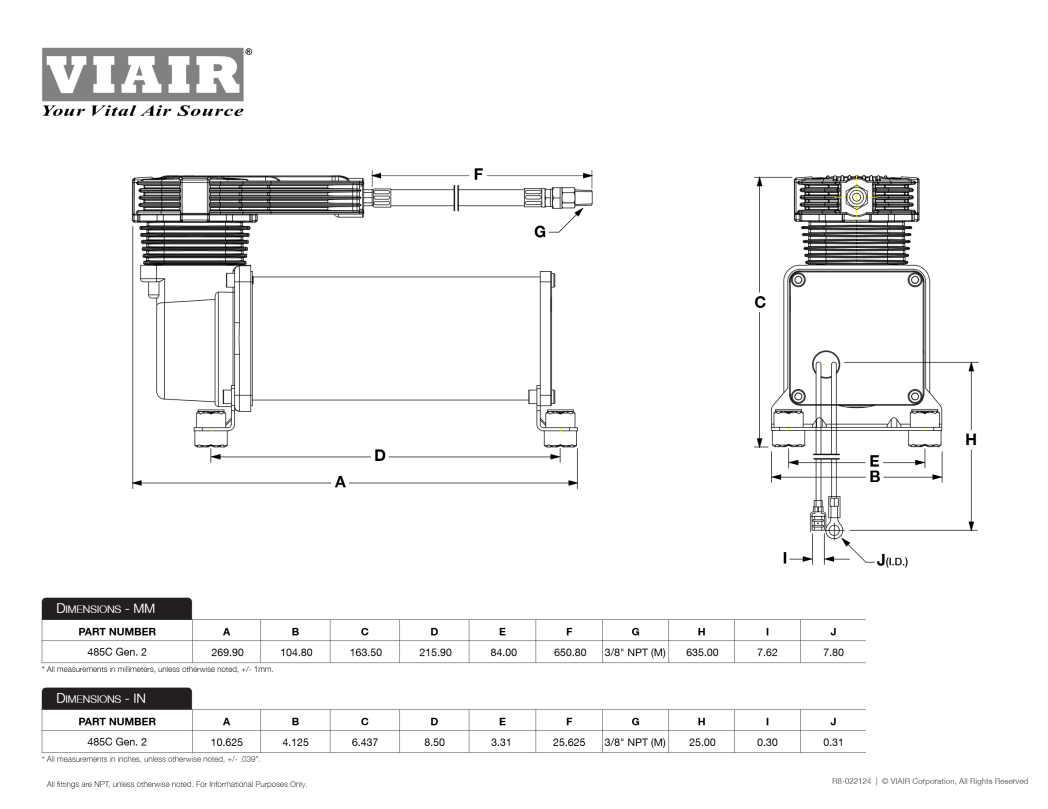

- Dimensions:
10.63″L x 4.1″W x 6.44″H (Each Unit) - Net Weight: 30 lbs.
FILL RATES
TIRE FILL RATES
| 35" X 12.5" | FILL RATE |
|---|---|
| 0 to 40 PSI | 5 min. 03 sec. (± 15 sec.) |
| 10 to 40 PSI | 3 min. 49 sec. (± 10 sec.) |
| 37" X 12.5" | FILL RATE |
| 0 to 40 PSI | 5 min. 33 sec. (± 15 sec.) |
| 10 to 40 PSI | 4 min. 14 sec. (± 10 sec.) |
TANK FILL RATES
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 1 min. 25 sec. (± 05 sec.) |
| 110 to 145 PSI | 28 sec. (± 03 sec.) |
| 0 to 200 PSI | 2 min. 22 sec. (± 10 sec.) |
| 165 to 200 PSI | 39 sec. (± 03 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 2 min. 56 sec. (± 10 sec.) |
| 110 to 145 PSI | 57 sec. (± 05 sec.) |
| 0 to 200 PSI | 4 min. 58 sec. (± 15 sec.) |
| 165 to 200 PSI | 1 min. 20 sec. (± 05 sec.) |
