20075 | VIAIR Dual 425C Onboard Air System | Platinum, 175 PSI, 4.80 CFM, 58 Amp, 12V, 2.5 Gallon Tank

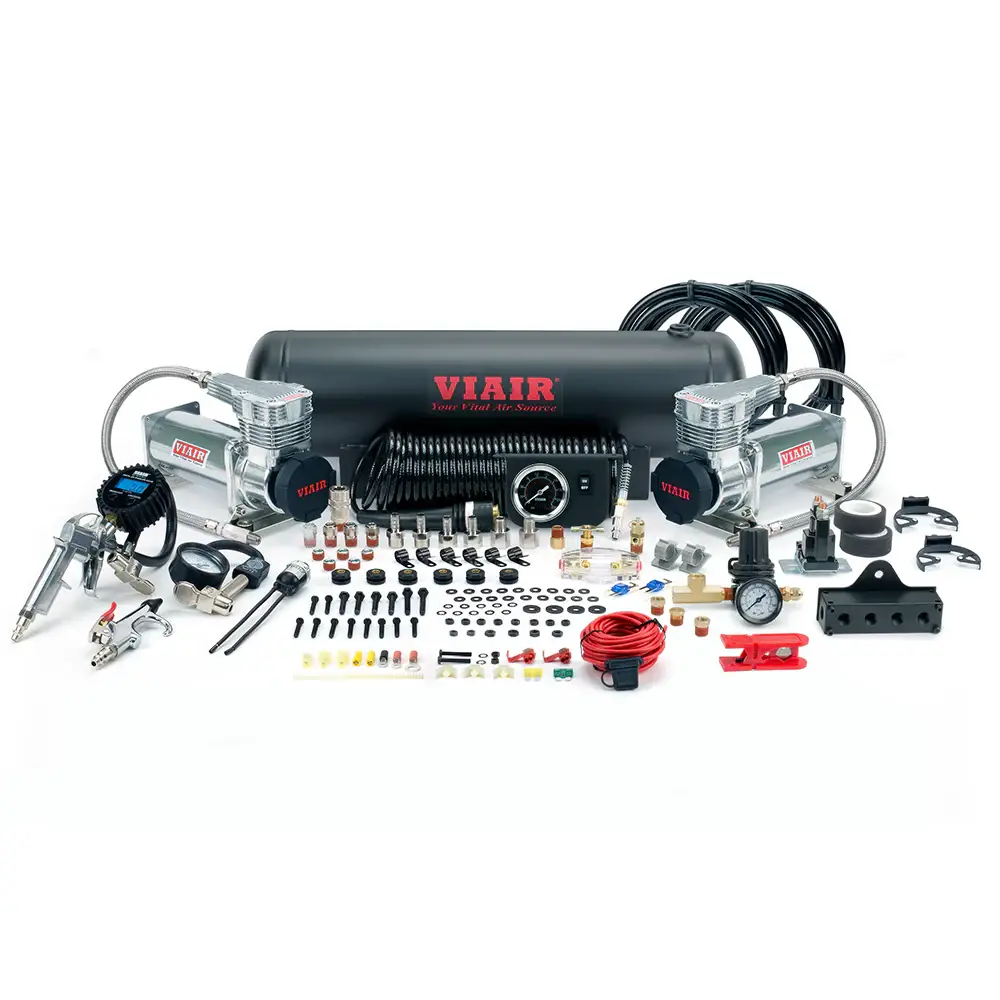

VIAIR’s Gen. 2 Dual 425C Onboard Air System (OBA) is our fastest filling OBA, featuring our new 425C Gen.2 compressors capable of putting out 4.94 CFM at 0 PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI and 50% at 100 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 425C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.

The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.

Specifications

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 50% @ 100 PSI
• Duty Cycle: 33% @ 175 PSI
• Max. Working Pressure: 175 PSI
• Max. Air Tank Size: 5.0 Gallon
• Combined Max. Amp Draw: 60-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F

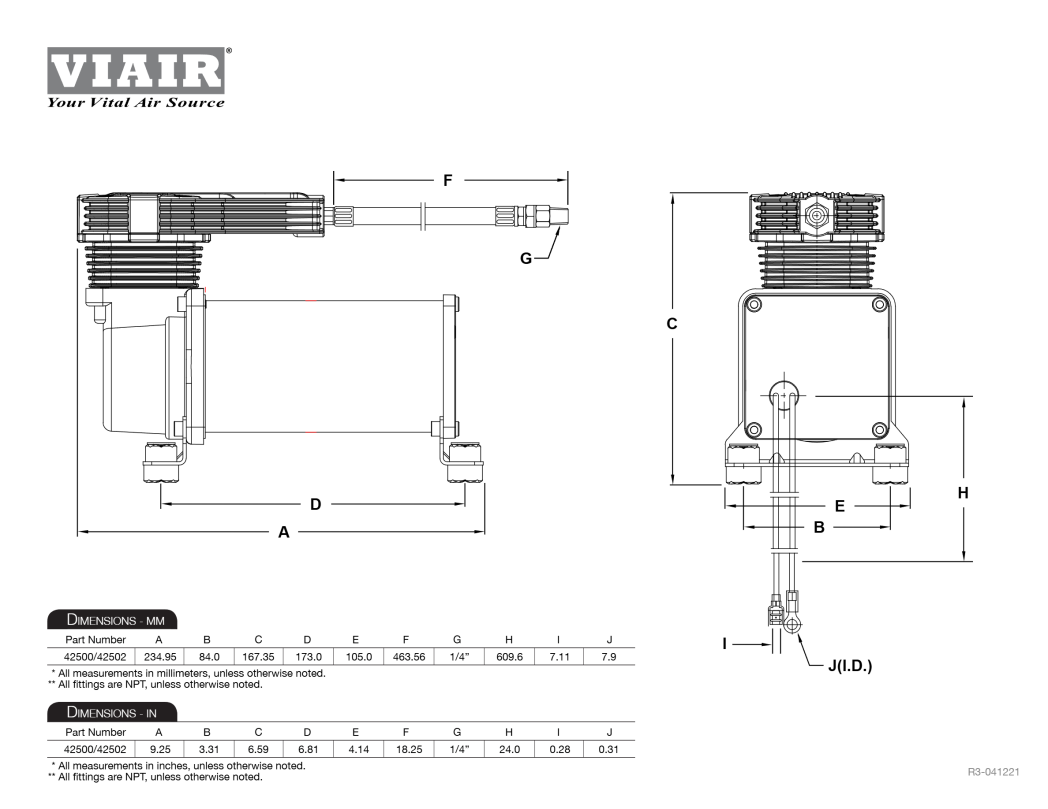

• Dimensions: 9.25″L x 4.14″W x 6.59″H
• Net Weight: 11.10 lbs.

Features

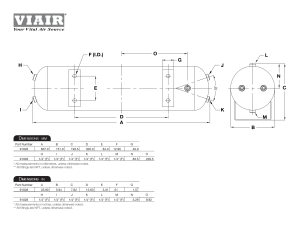

• 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
• (2) 425C Platinum or Stealth Black VIAIR Compressors
• Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
• Digital Tire Inflation Gun (180PSI)
• 0-220 PSI Pressure Regulator
• Sealed Pressure Switch (140 PSI on, 175 PSI off)
• 1/4” Drain Cock
• Heavy Duty 80-Amp Relay
• Mini ANL Fuse Holder with 60 Amp Fuse
• 1/4” Quick Connect Coupler (M)
• 1/4” 250 PSI Safety Valve
• (4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings
• 6-Port Billet Manifold with Mounting Bracket (1/4”)
• (2) 20ft. 1/4” Air Line Included
• 5pc. 1/4” NPT Plugs Kit
• Extension Braided Black Coil Hose
• Rubber Tip Blow Gun
• 3-in-1 Air Down Gauge
• Stainless Steel Air Line Cutter

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
