00071 | VIAIR TLC LITE 105 PSI Portable Compressor

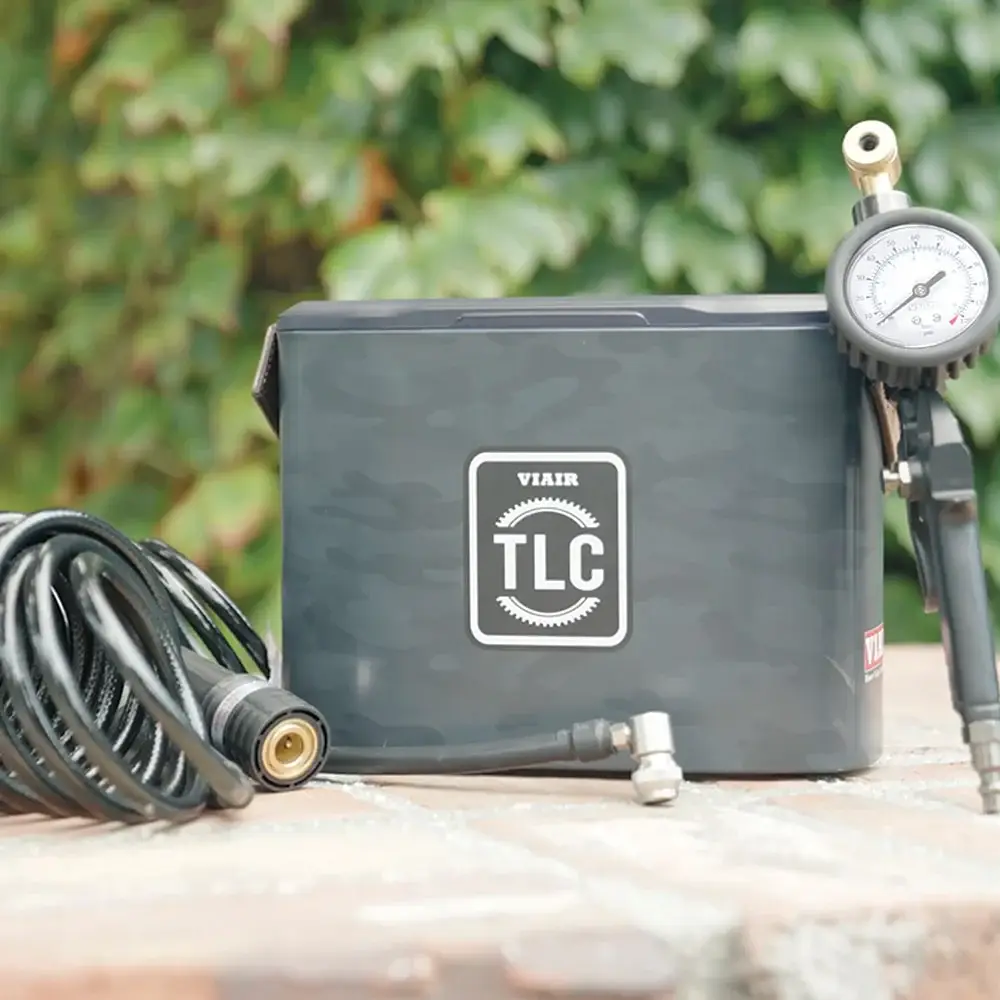

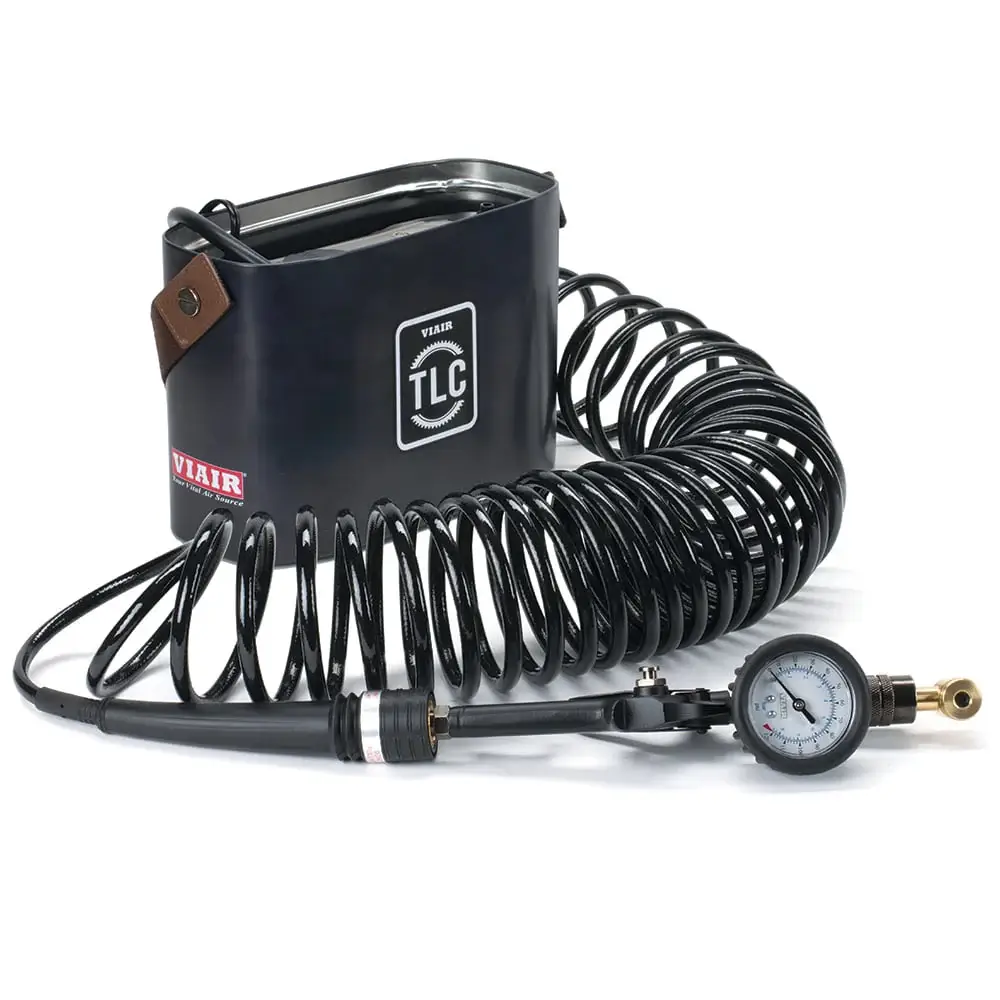

TLC LITE 105 PSI Portable Compressor

00071
Pricing: $257.25
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The TLC LITE is the indispensable piece of gear for your vehicle and bike. It is the only aux-powered air compressor capable of seating tubeless bicycle tires and reaching pressures up to 105PSI. It's compact enough to be neatly stored and can be easily transferred to different vehicles, making it a versatile tool for the adventurer cyclists.

* The TLC LITE may have some trouble seating tires smaller than 30c such as Ultradynamico and Panaracer - some tire/rim combos are more stubborn than others.

SPECIFICATIONS

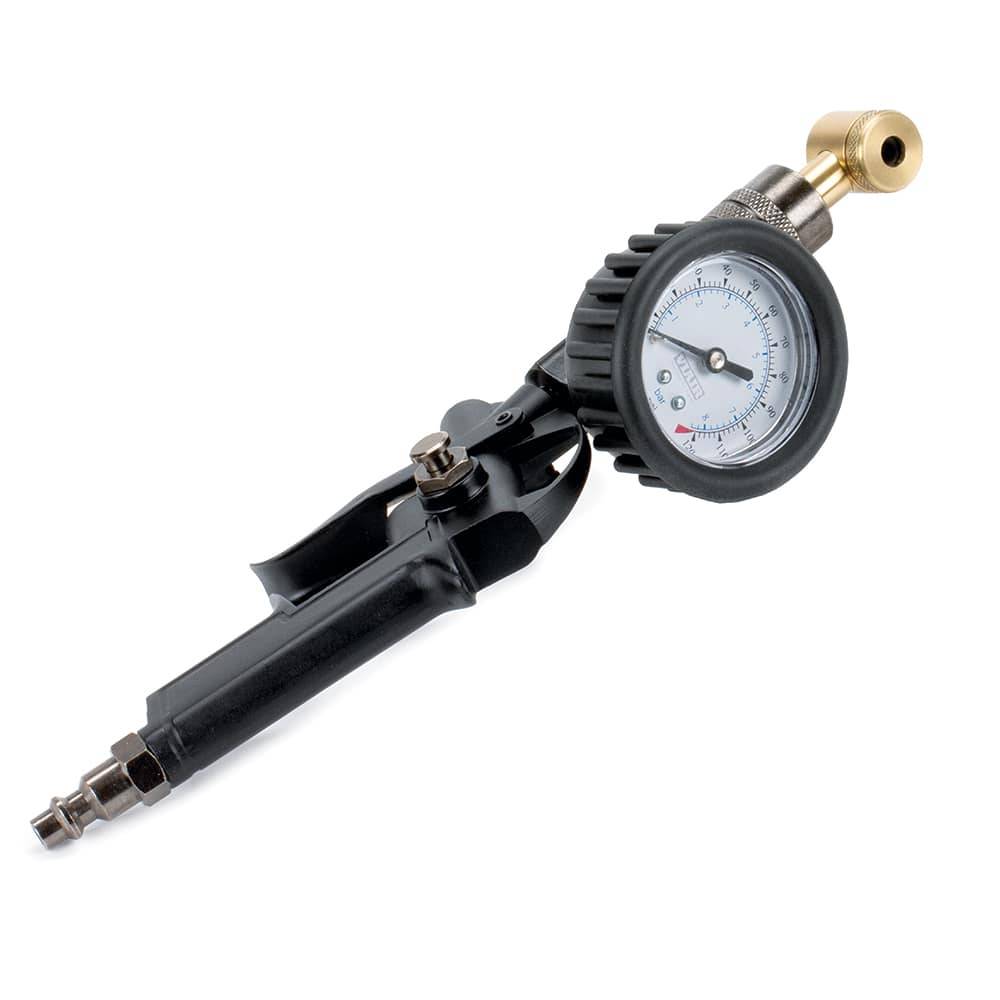

  • Shop-Style Inflator with 120 PSI Gauge
  • Fully Rebuildable Presta Head Attachment
  • 90° Twist-on Schrader Attachment
  • 30ft. Inside Braided Coil Hose
  • Deluxe Carry Bag
  • Accessory Power Plug
  • Durable Leather Tipped Handle
  • Inrush Current @ 0 PSI = 33
  • dB @ 0 PSI= 82

FEATURES:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 10% @ 100 PSI
  • Max. Working Pressure: 105 PSI
  • Max. Amp/Watt Draw: 13A/156W
  • Ingress Protection Rating: IP54
  • Max. Ambient Temp: +158°F
  • Min. Ambient Temp: -4°F
  • Dimensions: 9.64″L x 4.33″W x 9.68″H
  • Net Weight: 4.44 lbs.
  • Power Cord Length: 10 ft
  • Air Hose Length: 30 ft.

FILL RATES

TIRE FILL RATE

205/65R16 FILL RATE
27 to 35 PSI 53 sec. (± 05 sec.)
35 to 44 PSI 1 min. 15 sec. (± 05 sec.)
225/60R18 FILL RATE
27 to 35 PSI 55 sec. (± 05 sec.)
35 to 44 PSI 1 min. 21 sec. (± 05 sec.)



ROAD BIKE TIRE FILL RATE - * For 12V Only

25MM FILL RATE
0 to 70 PSI 20 sec.
0 to 100 PSI 34 sec.
28MM FILL RATE
0 to 70 PSI 24 sec.
0 to 100 PSI 39 sec.
30MM FILL RATE
0 to 70 PSI 27 sec.
0 to 100 PSI 45 sec.
32MM FILL RATE
0 to 70 PSI 31 sec.
0 to 100 PSI N/A



GRAVEL/HYBRID BIKE TIRE FILL RATE - * For 12V Only

35MM FILL RATE
0 to 30 PSI 12 sec.
0 to 50 PSI 24 sec.
38MM FILL RATE
0 to 30 PSI 14 sec.
0 to 50 PSI 27 sec.
42MM FILL RATE
0 to 30 PSI 16 sec.
0 to 50 PSI 30 sec.
45MM FILL RATE
0 to 30 PSI 18 sec.
0 to 50 PSI 33 sec.



MOUNTAIN BIKE TIRE FILL RATE - * For 12V Only

2.0" FILL RATE
0 to 20 PSI 13 sec.
0 to 40 PSI 33 sec.
2.3" FILL RATE
0 to 20 PSI 16 sec.
0 to 40 PSI 43 sec.
2.6" FILL RATE
0 to 20 PSI 20 sec.
0 to 40 PSI 53 sec.
3.0" FILL RATE
0 to 20 PSI 25 sec.
0 to 40 PSI 1 min. 3 sec.

Application List

Universal - Check Specification Before Ordering
