00190 | VIAIR TLC PLUS 120 PSI Portable Compressor

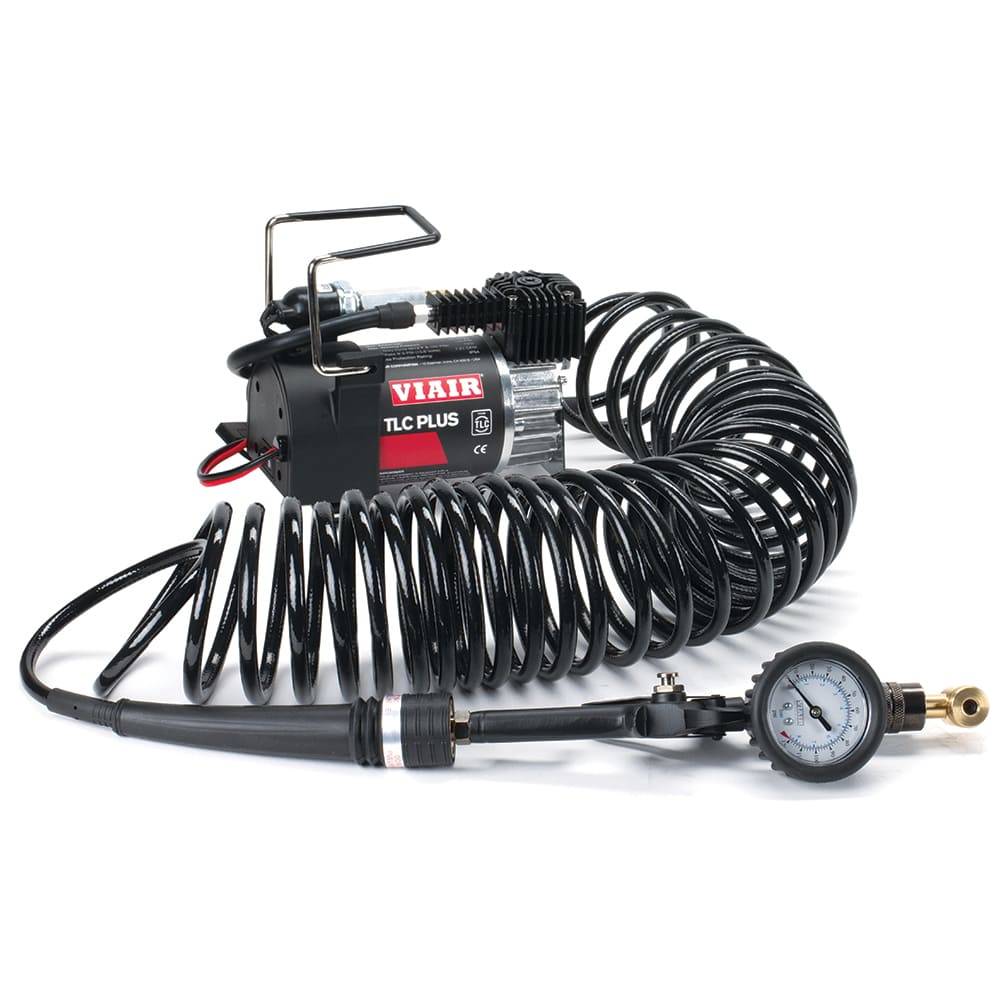

TLC PLUS 120 PSI Portable Compressor

00190
Pricing: $559.93
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The TLC PLUS is the perfect combination of performance, versatility and price point. Packing a strong blast of 120PSI, this coffee-mug-sized compressor has the lowest decibel rating in the TLC lineup and can be used as a portable or hard mounted to your vehicle. It's tubeless capable and can inflate truck tires up to 31 inches, making a great choice for those with larger vehicle tires who don't need the size or price tag of a bigger compressor.

SPECIFICATIONS

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 30 min. @ 30 PSI
  • Max. Working Pressure: 120 PSI
  • Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -4°F

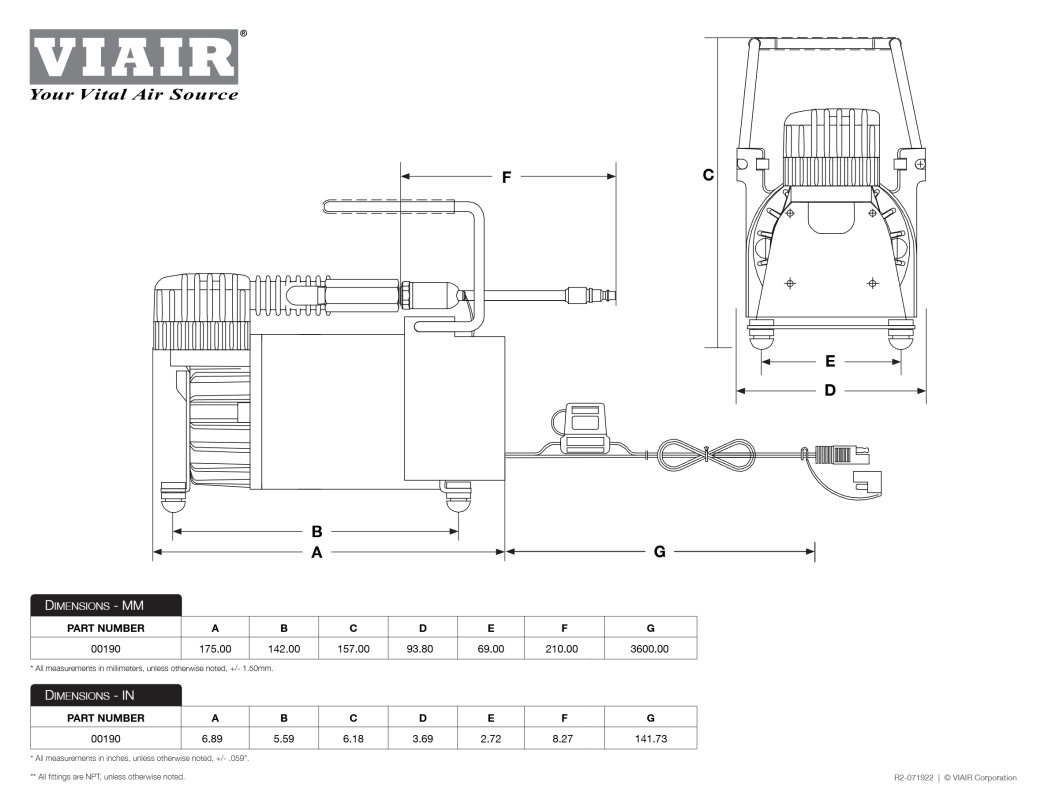

  • Dimensions: 6.8″L x 3.7″W x 6.5″H
  • Net Weight: 5.75 lbs.
  • Power Cord Length: 12 ft.
  • Inrush Current @ 0 PSI = 44
  • dB @ 0 PSI = 68

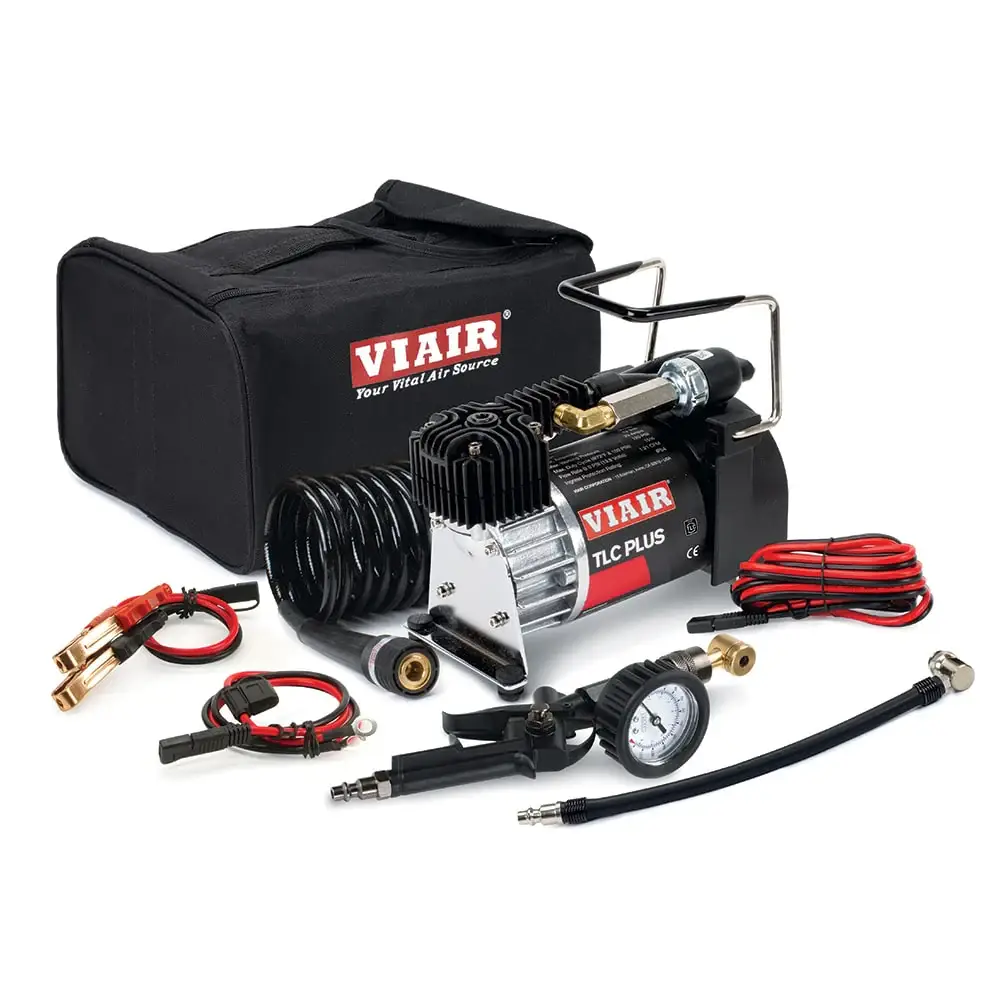

FEATURES:

  • Thermal Overload Protector

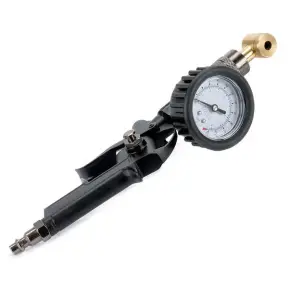

  • Shop-Style lnflator with 120 PSI Gauge
  • Fully Rebuildable Presta Head Attachment
  • 90° Twist-on Schrader Attachment

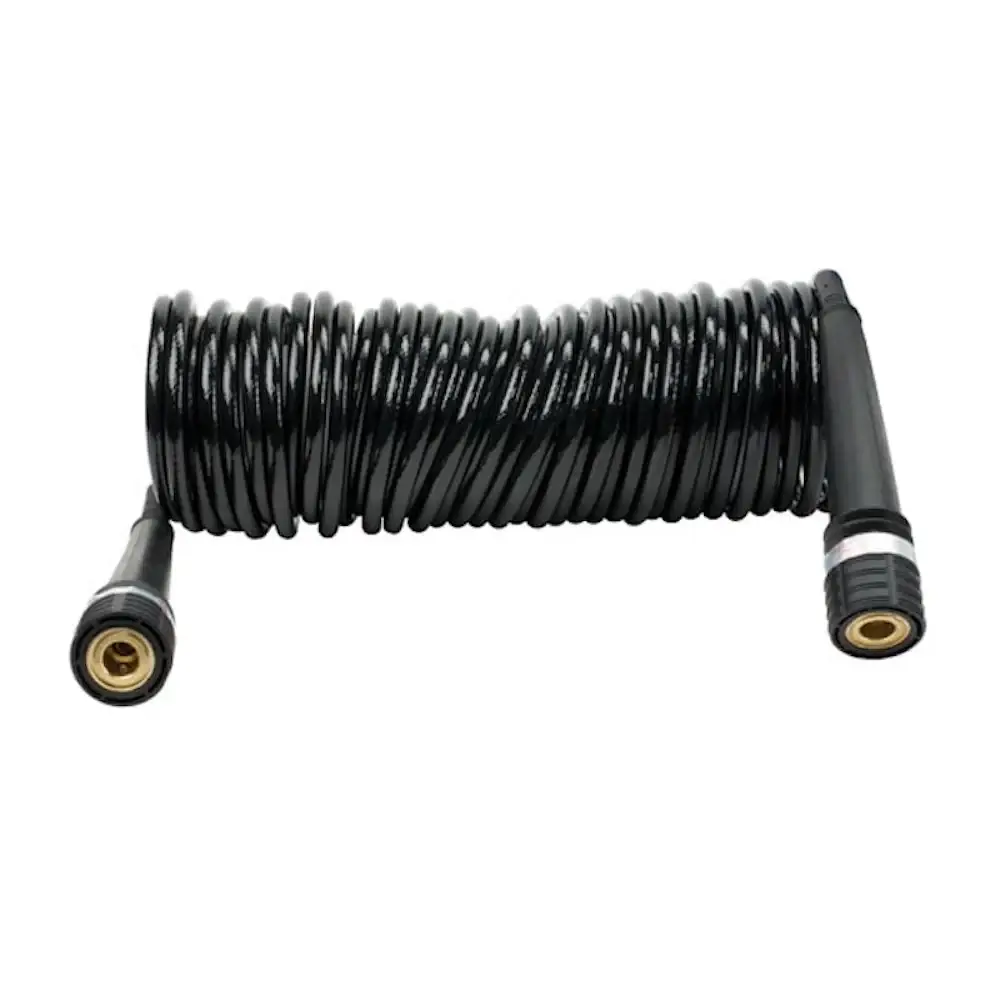

  • 30ft. Inside Braided Coil Hose
  • 2-Pin SAE Connection with Battery Terminal and Clamp Options
  • Deluxe Carry Bag

FILL RATES

TIRE FILL RATE

205/65R16 FILL RATE
27 to 35 PSI 38 sec. (± 05 sec.)
35 to 44 PSI 50 sec. (± 05 sec.)
225/60R18 FILL RATE
27 to 35 PSI 51 sec. (± 05 sec.)
35 to 44 PSI 1 min. 07 sec. (± 05 sec.)
31″X10.5″ FILL RATE
0 to 40 PSI 6 min. 31 sec. (± 15 sec.)
10 to 40 PSI 5 min. 14 sec. (± 10 sec.)



ROAD BIKE TIRE FILL RATE - * For 12V Only

25MM FILL RATE
0 to 70 PSI 10 sec.
0 to 100 PSI 18 sec.
28MM FILL RATE
0 to 70 PSI 13 sec.
0 to 100 PSI 21 sec.
30MM FILL RATE
0 to 70 PSI 16 sec.
0 to 100 PSI 25 sec.
32MM FILL RATE
0 to 70 PSI 18 sec.
0 to 100 PSI N/A



GRAVEL/HYBRID BIKE TIRE FILL RATE - * For 12V Only

35MM FILL RATE
0 to 30 PSI 6 sec.
0 to 50 PSI 13 sec.
38MM FILL RATE
0 to 30 PSI 7 sec.
0 to 50 PSI 15 sec.
42MM FILL RATE
0 to 30 PSI 8 sec.
0 to 50 PSI 17 sec.
45MM FILL RATE
0 to 30 PSI 9 sec.
0 to 50 PSI 19 sec.



MOUNTAIN BIKE TIRE FILL RATE - * For 12V Only

2.0" FILL RATE
0 to 20 PSI 11 sec.
0 to 40 PSI 22 sec.
2.3" FILL RATE
0 to 20 PSI 14 sec.
0 to 40 PSI 26 sec.
2.6" FILL RATE
0 to 20 PSI 16 sec.
0 to 40 PSI 30 sec.
3.0" FILL RATE
0 to 20 PSI 18 sec.
0 to 40 PSI 35 sec.

Application List

Universal - Check Specification Before Ordering
