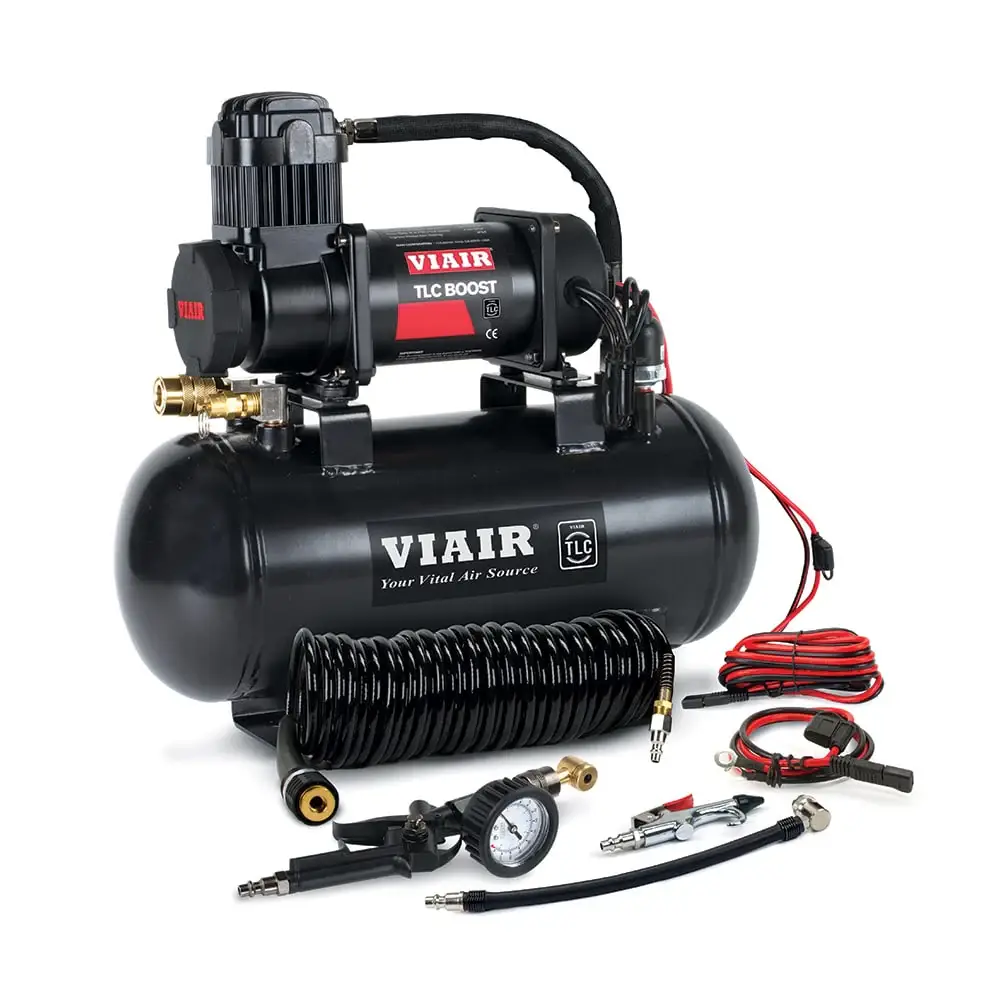

30031 | VIAIR TLC BOOST 120 PSI Air Source Kit With 1.5 Gallon Tank

TLC BOOST 120 PSI Air Source Kit With 1.5 Gallon Tank

30031
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $559.93
Qty:

Description

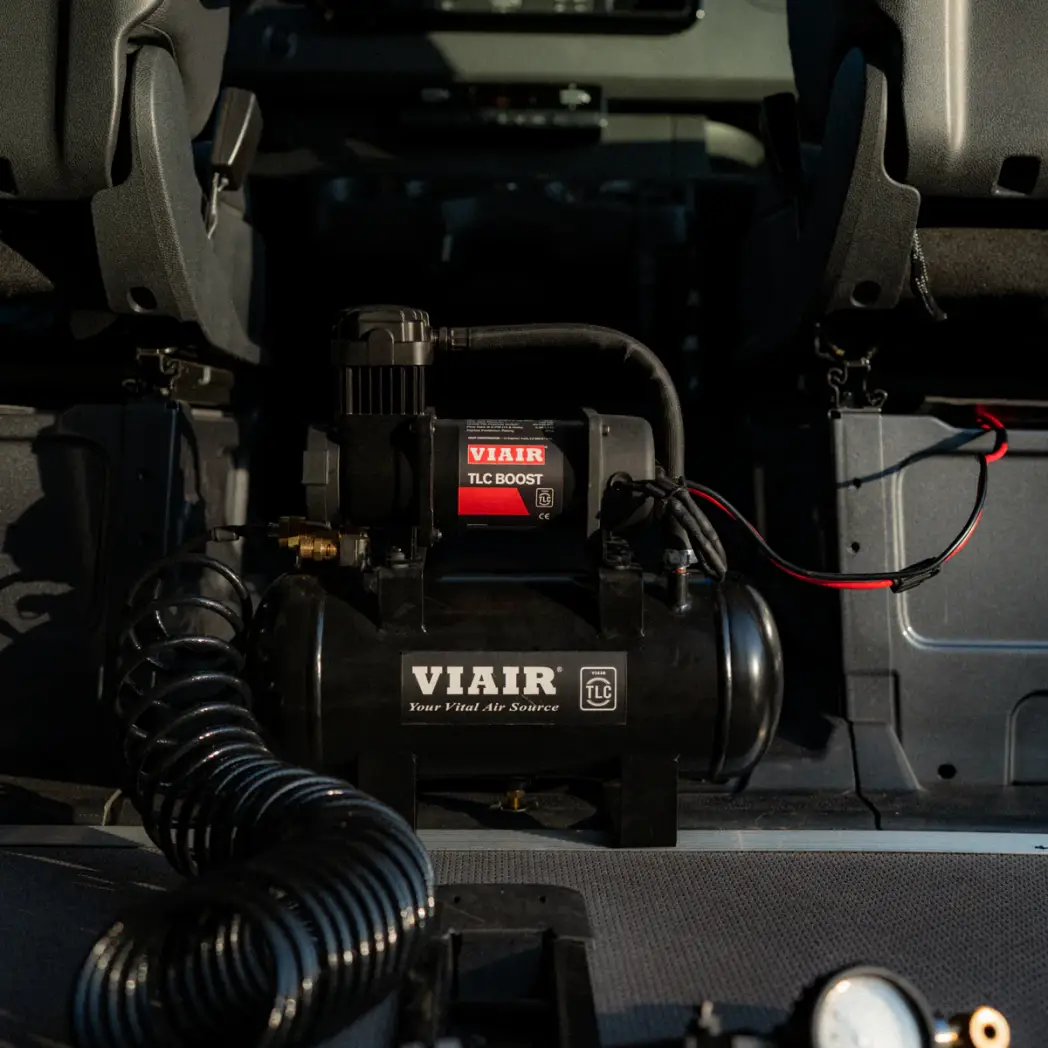

The mobile mechanic's favorite. Meant to be hard-mounted to your vehicle, the TLC®BOOST offers shop-air performance in a quiet, small and powerful package. It has VIAIR's™ 300C motor on top of a 1.5 Gallon tank, filling up to 120PSI to satisfy your pneumatic needs as quickly as possible. Blowing tasks, recreational inflatables, air tools, RV and bus tires, high volume tubeless setups, The BOOST can do it all.

SPECIFICATIONS

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 25% @ 100 PSI
  • Max. Working Pressure: 120 PSI
  • Max. Amp Draw: 30-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -4°F

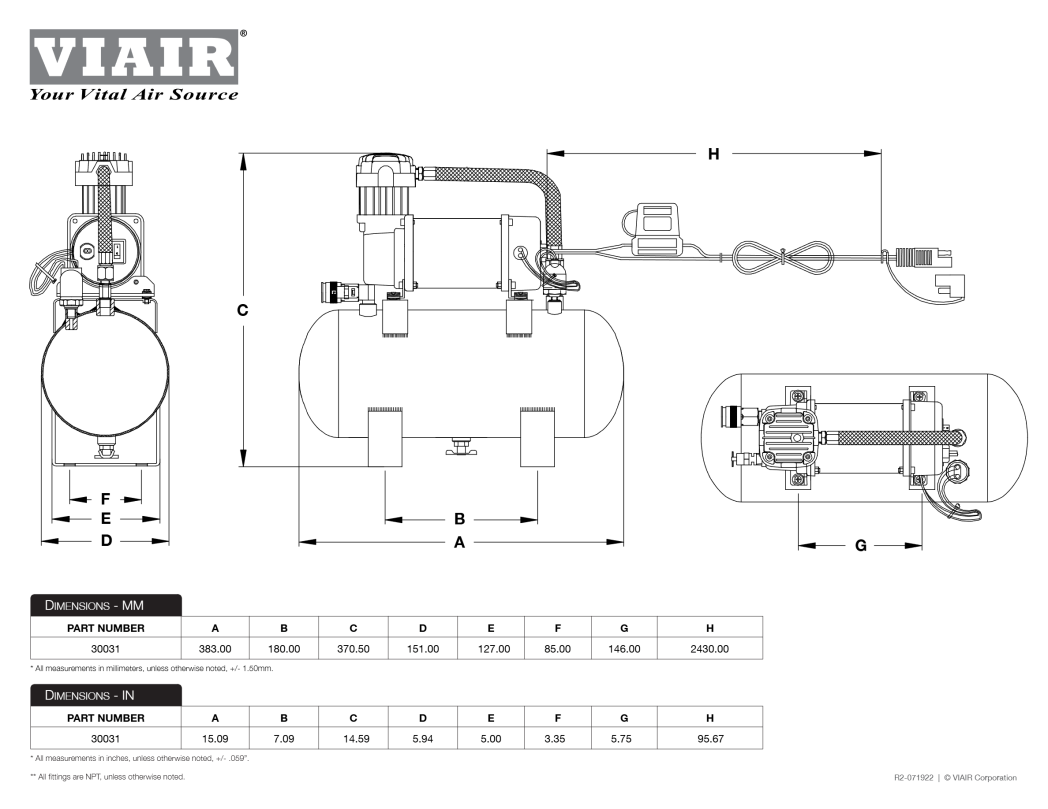

  • Dimensions: 15″L x 5.9″W x 14.79″H
  • Net Weight: 17.60 lbs.
  • Inrush Current @ 0 PSI = 69
  • dB @ 0 PSI = 71

FEATURES:

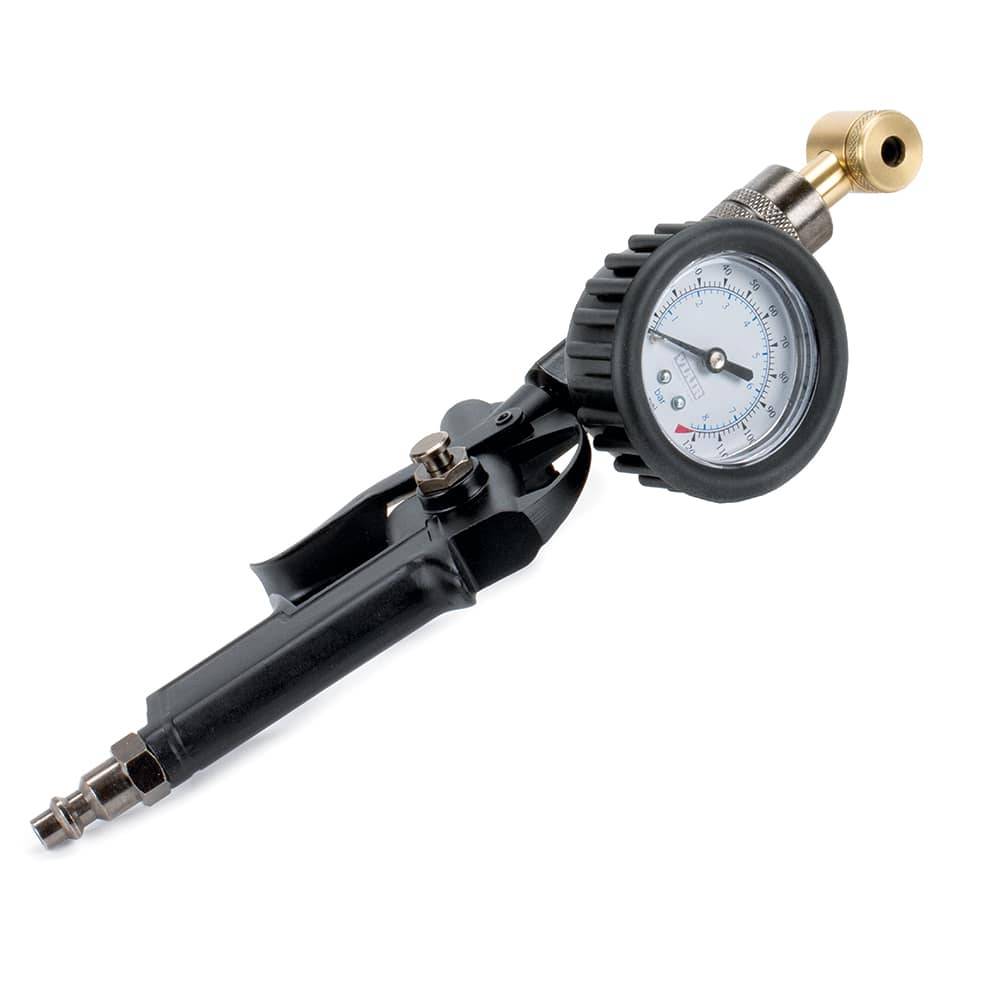

  • Shop-Style Inflator with 120 PSI Gauge
  • Fully Rebuildable Presta Head Attachment

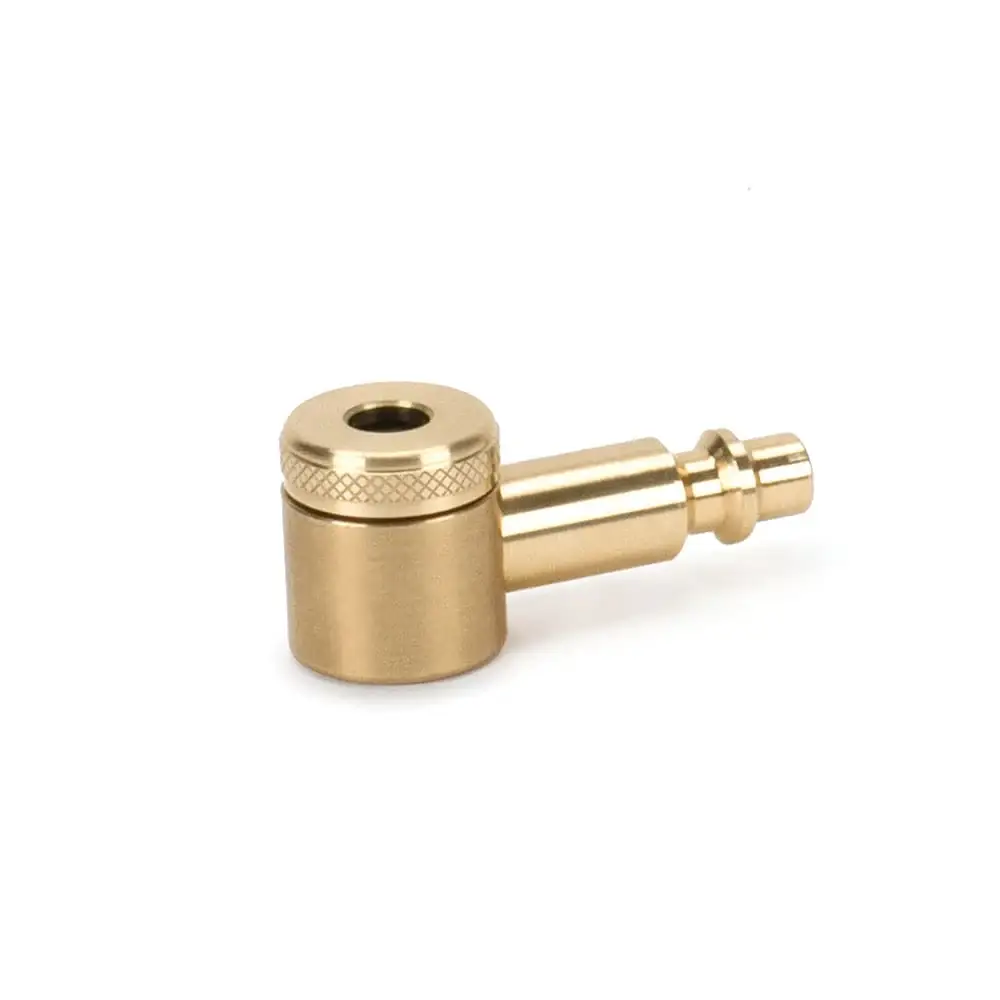

  • 90° Twist-on Schrader Attachment
  • 30ft. Inside Braided Coil Hose

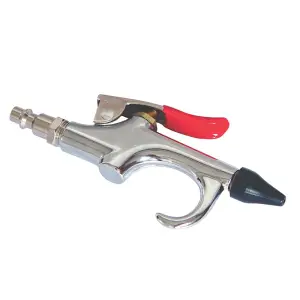

  • Blow Gun
  • 1.5-Gallon Air Tank
  • 2-Pin SAE Connector Attachment with Terminal Rings
  • 40-Amp Inline Fuse Holder
  • Mounting Hardware
  • Deluxe Carry Bag

FILL RATES

TIRE FILL RATE

31″X10.5″ - R15 FILL RATE
0 to 30 PSI 1 min. 57 sec. (±10 Sec.)
15 to 30 PSI 1 min. 17 sec. (± 05 Sec.)
33″X12.5″ - R20 FILL RATE
0 to 30 PSI 3 min. 37 sec. (±10 Sec.)
15 to 30 PSI 2 min. 19 sec. (± 05 Sec.)
35"x12.5" - R20.5 FILL RATE
50 to 60 PSI 55 sec. (±03 Sec.)
60 to 80 PSI 1 min. 41 sec. (± 05 Sec.)
80 to 90 PSI 44 sec. (±03 Sec.)
90 to 110 PSI 1 min. 38 sec. (± 05 Sec.)

TANK FILL RATE

1.5 GALLON TANK FILL RATE
0 to 120 PSI 1 min. 12 sec. (±05 Sec.)
90 to 120 PSI 19 sec. (± 05 Sec.)

ROAD BIKE TIRE FILL RATE - * For 12V Only

0 to 70 PSI <3 sec.
0 to 100 PSI 5 sec.
28MM FILL RATE
0 to 70 PSI 4 sec.
0 to 100 PSI 6 sec.
30MM FILL RATE
0 to 70 PSI 5 sec.
0 to 100 PSI 7 sec.
32MM FILL RATE
0 to 70 PSI 7 sec.
0 to 100 PSI N/A

GRAVEL/HYBRID BIKE TIRE FILL RATE - * For 12V Only

35MM FILL RATE
0 to 30 PSI <3 sec.
0 to 50 PSI 5 sec.
38MM FILL RATE
0 to 30 PSI 4 sec.
0 to 50 PSI 5 sec.
42MM FILL RATE
0 to 30 PSI 4 sec.
0 to 50 PSI 6 sec.
45MM FILL RATE
0 to 30 PSI 4 sec.
0 to 50 PSI 6 sec.

MOUNTAIN BIKE TIRE FILL RATE - * For 12V Only

2.0" FILL RATE
0 to 20 PSI 5 sec.
0 to 40 PSI 8 sec.
2.3" FILL RATE
0 to 20 PSI 5 sec.
0 to 40 PSI 10 sec.
2.6" FILL RATE
0 to 20 PSI 6 sec.
0 to 40 PSI 12 sec.
3.0" FILL RATE
0 to 20 PSI 6 sec.
0 to 40 PSI 15 sec.

Application List

Universal - Check Specification Before Ordering
