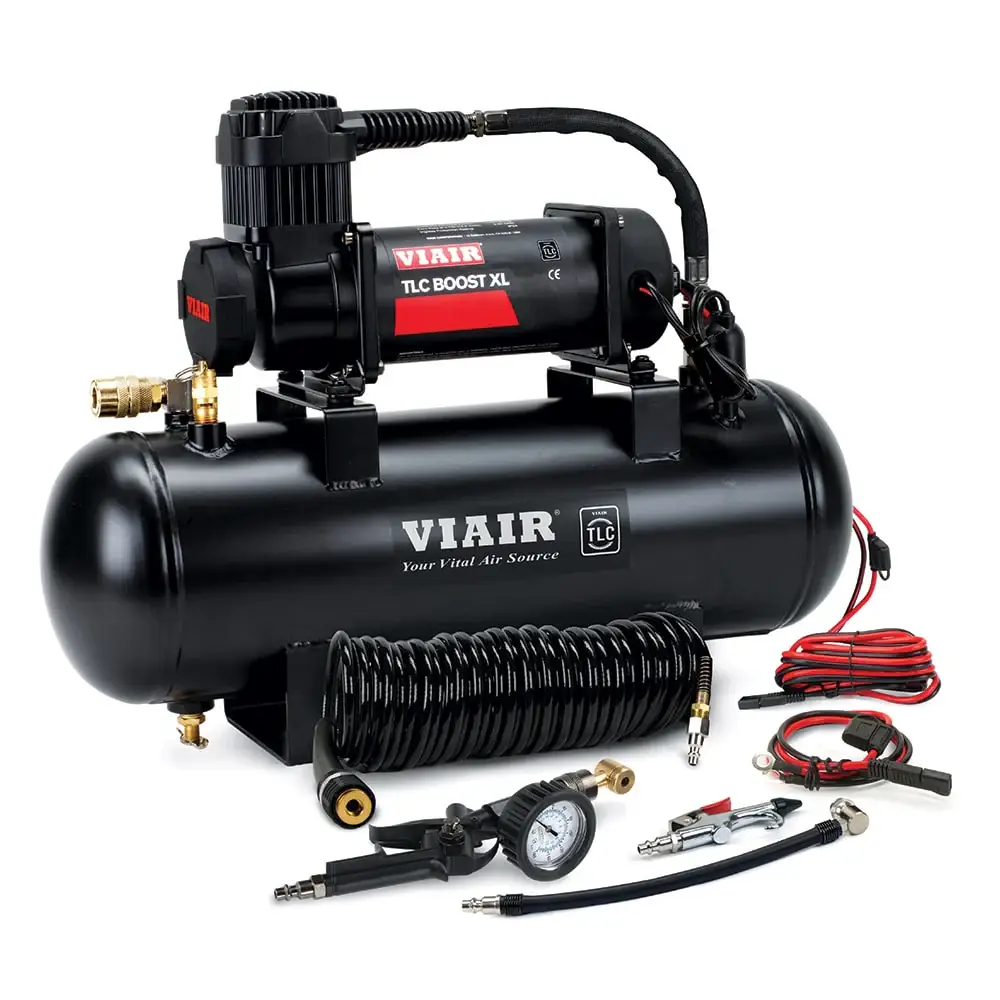

42041 | VIAIR TLC BOOST XL 150 PSI Air Source Kit With 2 Gallon Tank

TLC BOOST XL 150 PSI Air Source Kit With 2 Gallon Tank

42041
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $699.93
Qty:

Description

The TLC BOOST, but on steroids. Equipped with a bigger motor, 2 Gallon tank and working pressure of 150PSI, this is the ultimate tool for mobile pneumatic tasks. Meant to be hard mounted to your vehicle, the BOOST XL offers top performance to get the job done, whatever it is you're aiming to do. More speed, more volume, same high quality.

SPECIFICATIONS

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 30-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -4°F

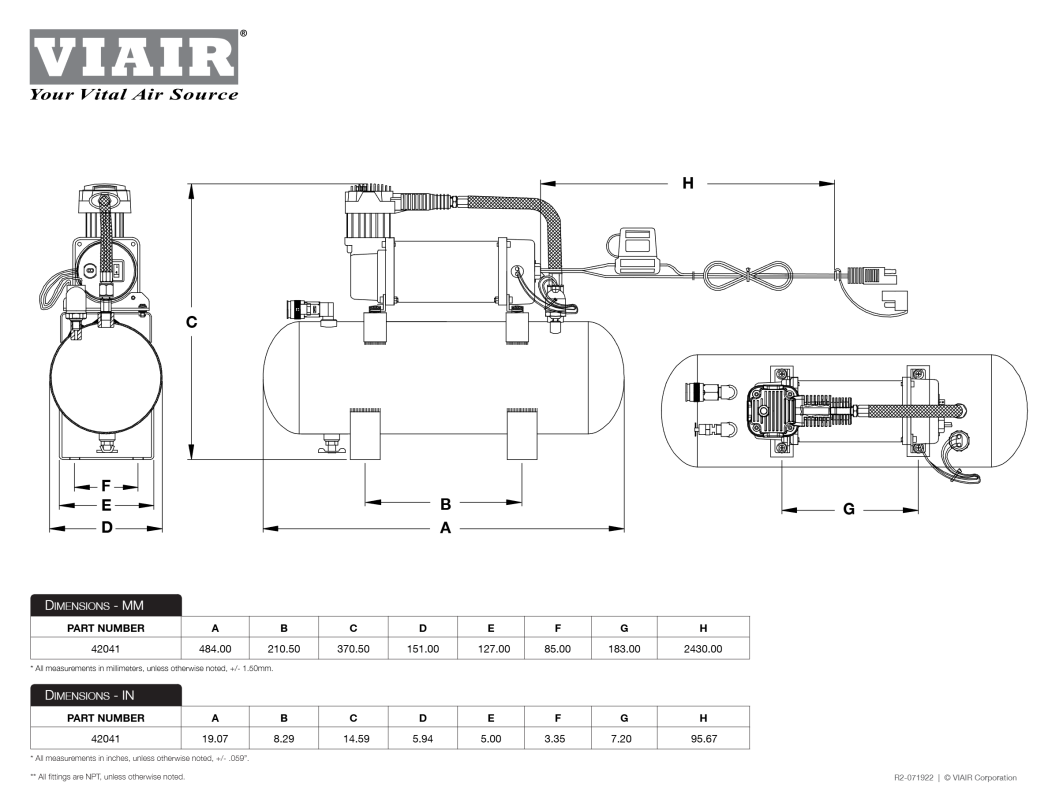

  • Dimensions: 19″L x 5.9″W x 14.79″H
  • Net Weight: 22.10 lbs.
  • Power Cord Length: 8 ft.
  • Air Hose Length: 30 ft.
  • Inrush Current @ 0 PSI = 86
  • dB @ 0 PSI = 71

FEATURES:

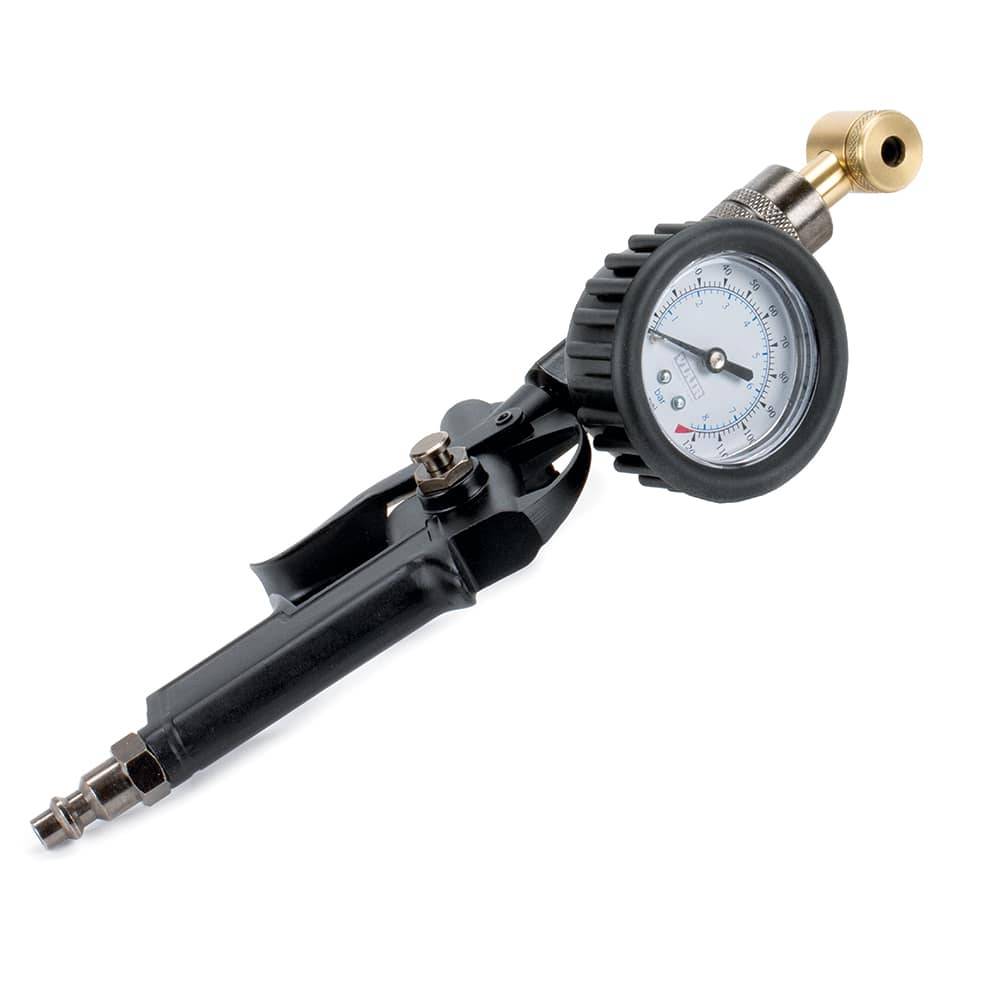

  • Shop-Style Inflator with 160 PSI Gauge
  • Fully Rebuildable Presta Head Attachment

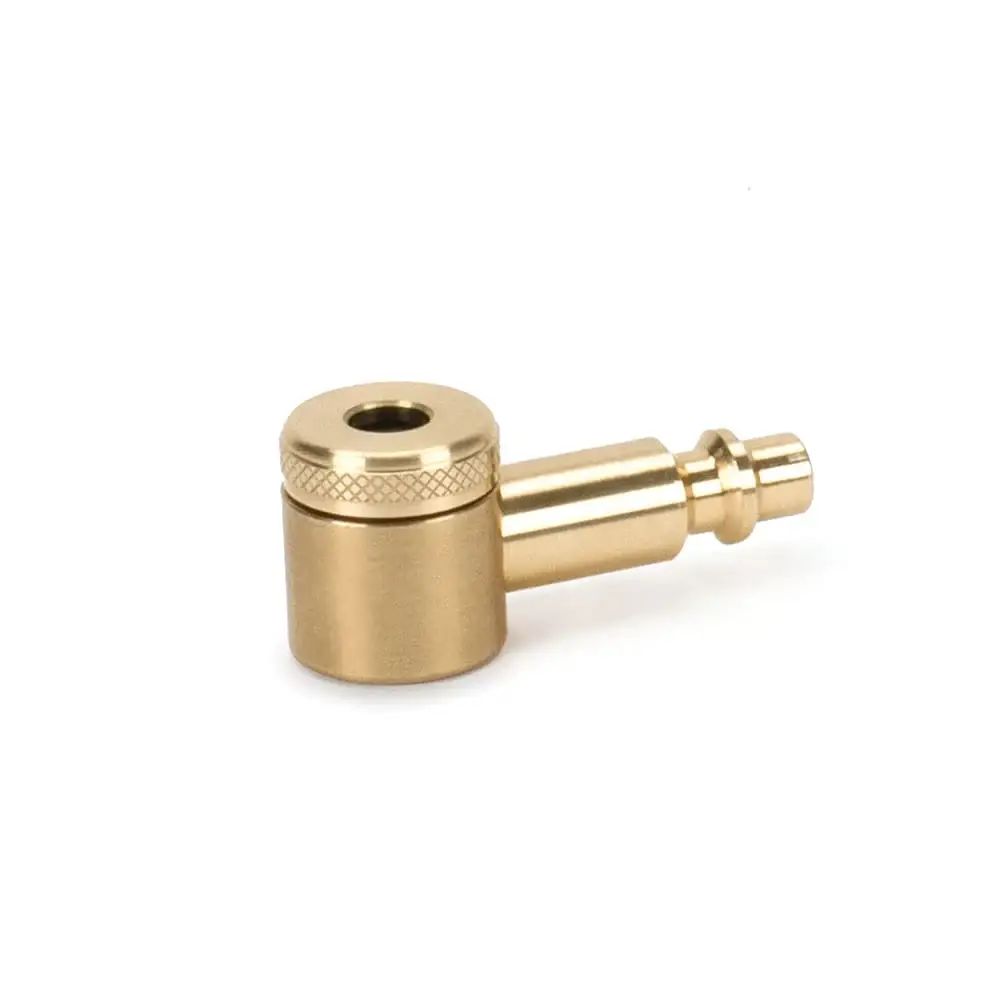

  • 90° Twist-on Schrader Attachment
  • 30ft. Inside Braided Coil Hose

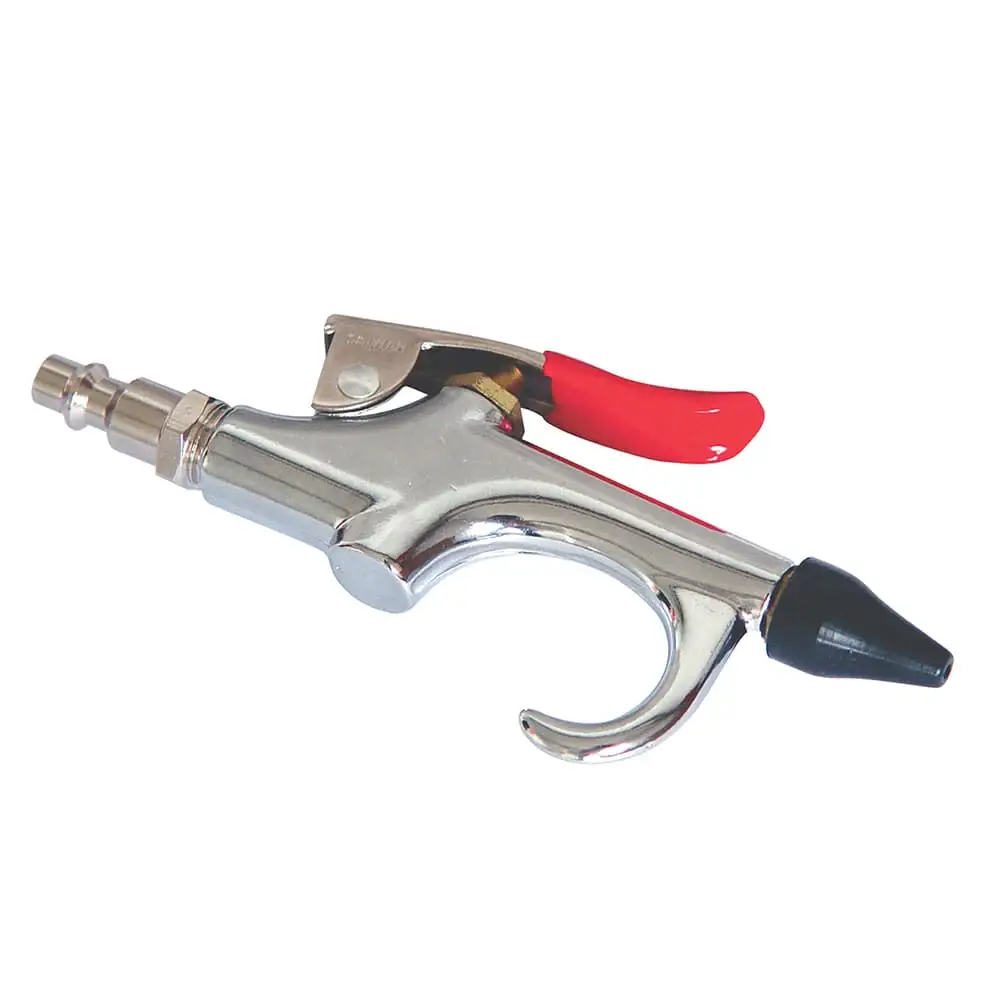

  • Blow Gun
  • 2.0-Gallon Air Tank

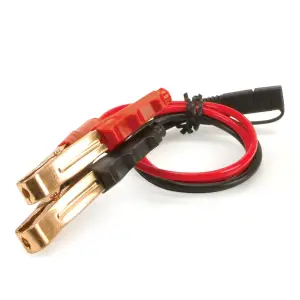

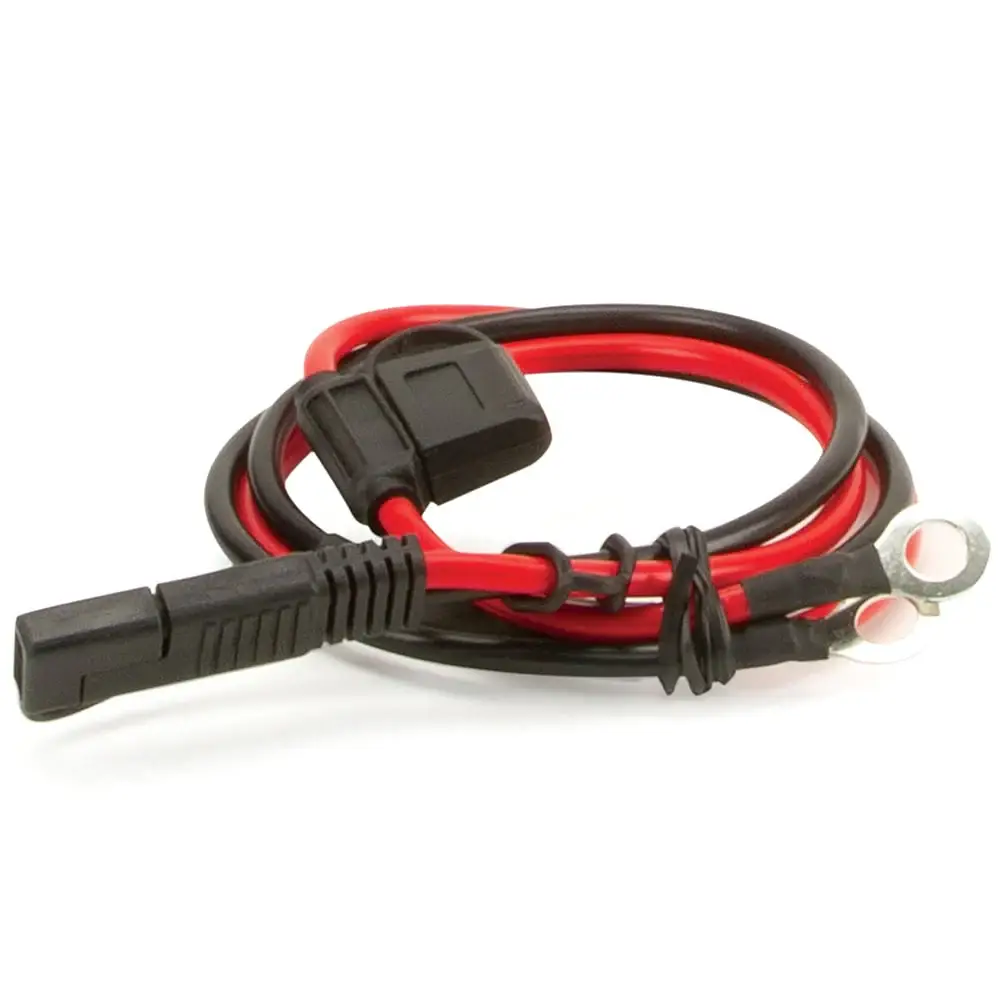

  • 2-Pin SAE Connector Attachment with Terminal Rings
  • 40-Amp Inline Fuse Holder
  • Mounting Hardware
  • Deluxe Carry Bag

FILL RATES

TIRE FILL RATE

31″X10.5″ FILL RATE
0 to 40 PSI 4 min. 15 sec. (± 10 sec.)
10 to 40 PSI 3 min. 20 sec. (± 05 sec.)
33″X12.5″ FILL RATE
0 to 40 PSI 4 min. 32 sec. (± 10 sec.)
10 to 40 PSI 3 min. 24 sec. (± 05 sec.)
35″X12.5″ FILL RATE
0 to 40 PSI 5 min. 08 sec. (± 15 sec.)
10 to 40 PSI 3 min. 57 sec. (± 05 sec.)

TANK FILL RATE

2.0 GALLON TANK FILL RATE
0 to 150 PSI 2 min. 13 sec. (± 10 sec.)
110 to 150 PSI 49 sec. (± 05 sec.)

ROAD BIKE TIRE FILL RATE - * For 12V Only

25MM FILL RATE
0 to 70 PSI <3 sec.
0 to 100 PSI 4 sec.
28MM FILL RATE
0 to 70 PSI <3 sec.
0 to 100 PSI 5 sec.
30MM FILL RATE
0 to 70 PSI 4 sec.
0 to 100 PSI 6 sec.
32MM FILL RATE
0 to 70 PSI 5 sec.
0 to 100 PSI N/A

GRAVEL/HYBRID BIKE TIRE FILL RATE - * For 12V Only

35MM FILL RATE
0 to 30 PSI <3 sec.
0 to 50 PSI 4 sec.
38MM FILL RATE
0 to 30 PSI <3 sec.
0 to 50 PSI 4 sec.
42MM FILL RATE
0 to 30 PSI <3 sec.
0 to 50 PSI 5 sec.
45MM FILL RATE
0 to 30 PSI 4 sec.
0 to 50 PSI 5 sec.

MOUNTAIN BIKE TIRE FILL RATE - * For 12V Only

2.0" FILL RATE
0 to 20 PSI 5 sec.
0 to 40 PSI 7 sec.
2.3" FILL RATE
0 to 20 PSI 5 sec.
0 to 40 PSI 9 sec.
2.6" FILL RATE
0 to 20 PSI 6 sec.
0 to 40 PSI 10 sec.
3.0" FILL RATE
0 to 20 PSI 6 sec.
0 to 40 PSI 11 sec.

Application List

Universal - Check Specification Before Ordering

Details

  • 42041
  • 42041
  • VIAIR
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 45.0 lbs.
  • W7.0000” x H9.0000” x L13.0000”
  • Free Ground Shipping Unavailable | This Product Does Not Qualify*

Documents
