50044 | VIAIR TLC Dual 444c 200 PSI Onboard System | Stealth Black, 200 PSI

VIAIR's TLC Dual 444C Onboard Air System is a pre-packaged compressed air solution that provides two Stealth Black 444C, 100% duty cycle compressors, a 1.5 gallon air tank, TLC shop-style inflator, Presta inflator head, and all necessary components needed to install a working system, useful for multiple pneumatic applications.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 10.0 Gallon
• Combined Max. Amp Draw: 46-Amps
• Ingress Protection Rating: IP67

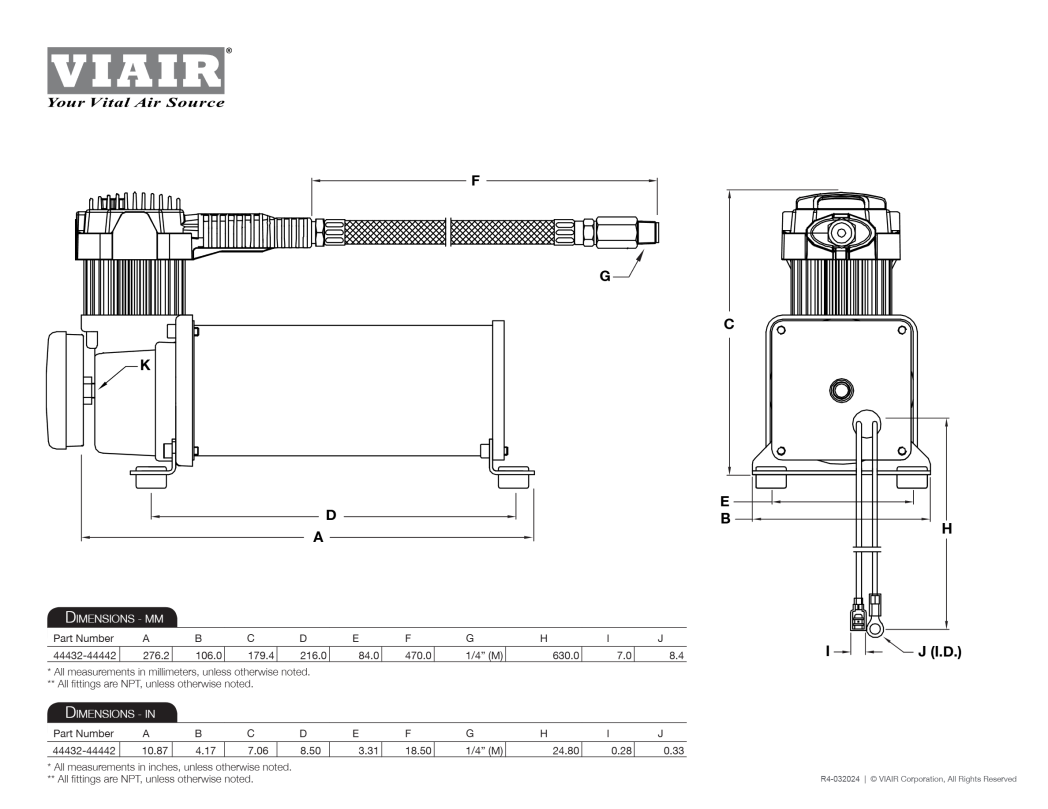

• Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit)

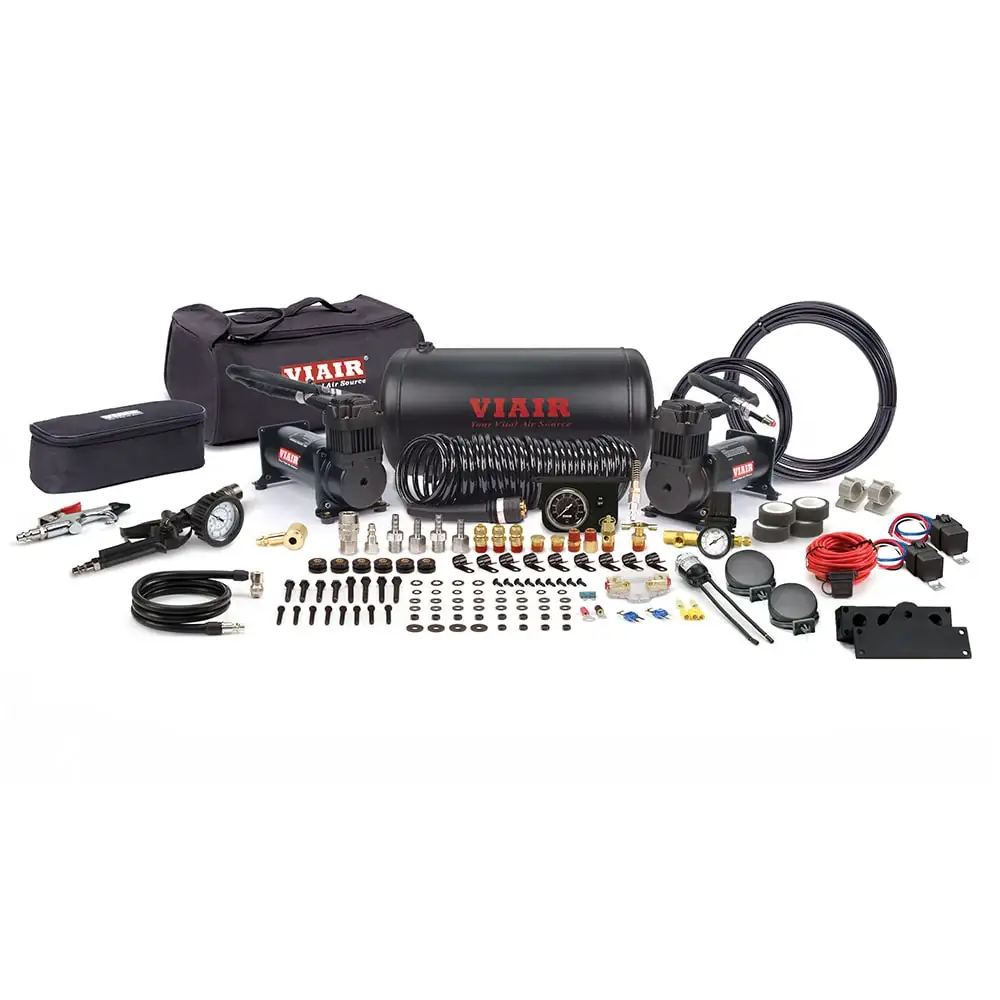

FEATURES:

• (2) 444C Stealth Black Air Compressors
  w/Thermal Overload Protectors
• Intercooler Head (Patents Pending)

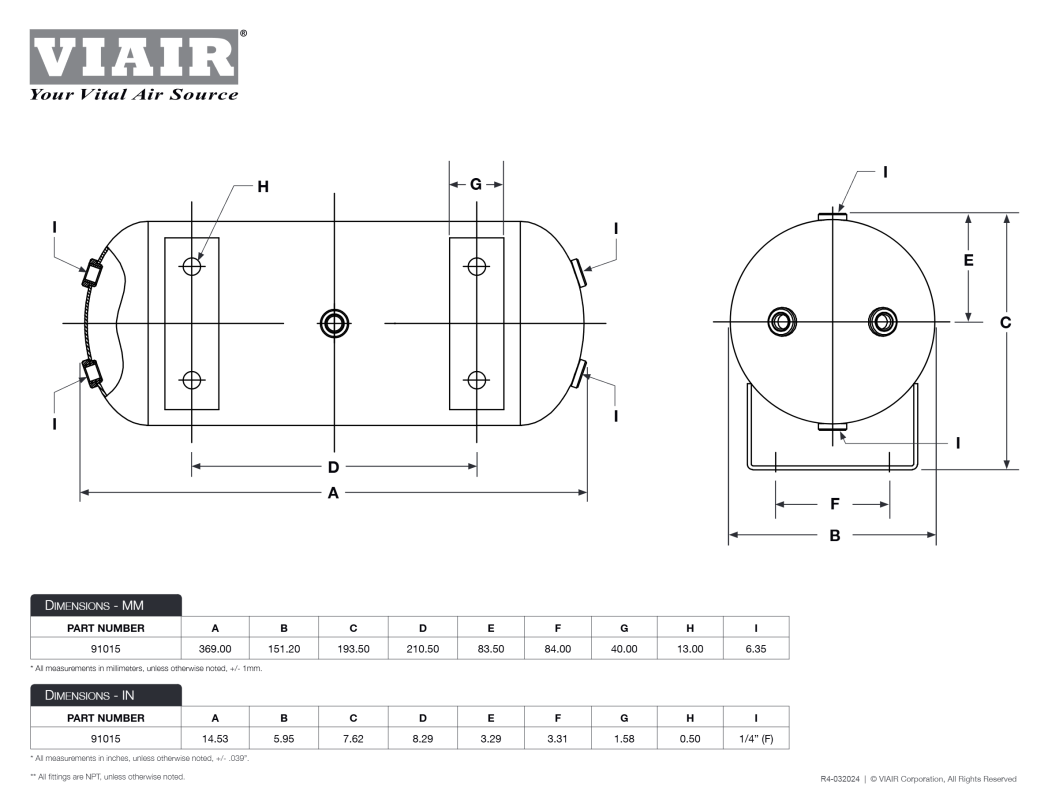

• 1.5 Gallon Matte Black VIAIR Air Tank
• Illuminated Dash Panel Gauge Kit, Black Face
• Sealed Pressure Switch (165 PSI on, 200 PSI off)
• (2) 40-Amp Sealed 4-Prong Relays
• Shop-Style Inflator with 160 PSI Gauge
  w/ Fully Rebuildable Presta Head Attachment
• (2) 30ft. Coil Hose with Quick Connect and Stud
• 45° Extended Reach Dually Chuck
• 90° 40in. Twist-On Air Hose Chuck
• Rubber Tipped Blow Gun
• Air Source Relocation Kit
• (2) Air Filter Housing w/ Replacement Air Filter Elements
• VIAIR Storage Bag

PLEASE NOTE:

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

TIRE FILL RATE
