20185 | VIAIR Dual Gen 2 485C Onboard Air System, 200 PSI, 3.82 CFM, 40 Amp, 12V, 2.5 Gallon Air Tank | Stealth Black

Dual Gen 2 485C Onboard Air System | 200 PSI, 3.82 CFM, 40 Amp, 12V, 2.5 Gallon Air Tank | Stealth Black

20185
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $1,641.50
Qty:

Description

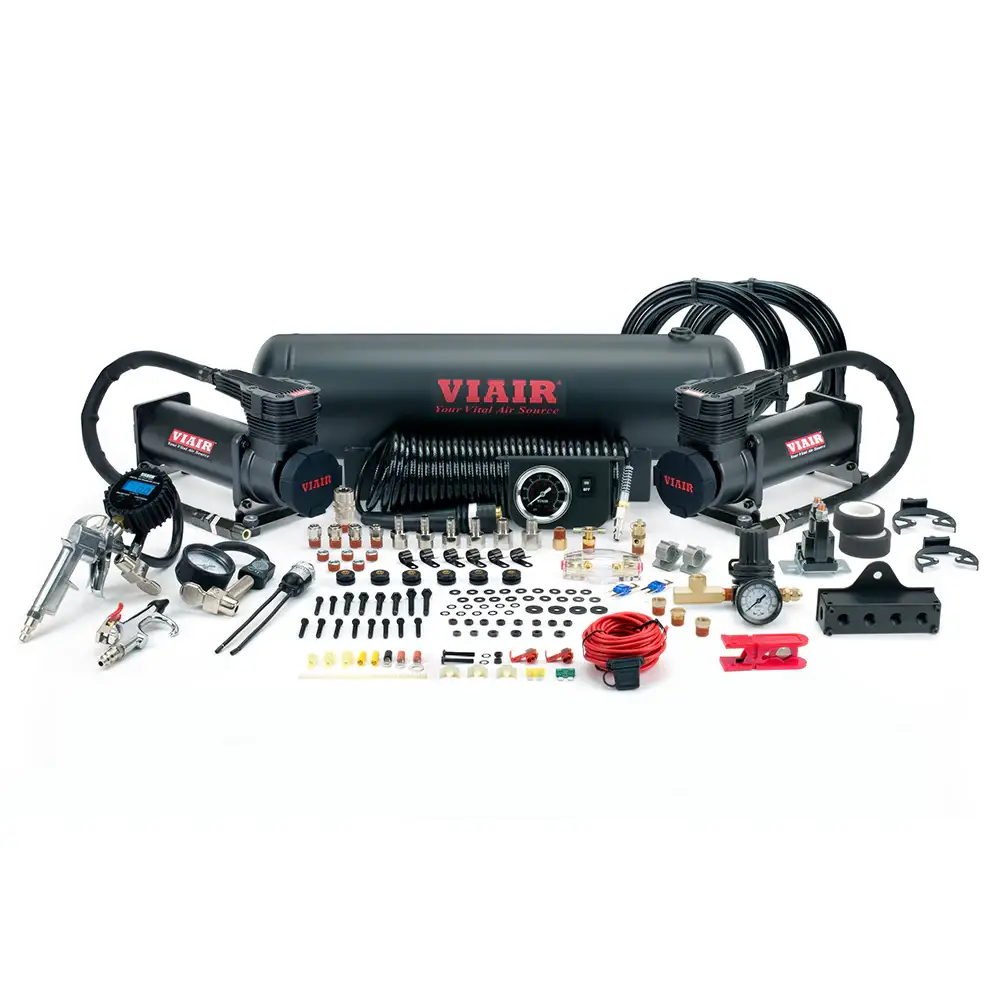

VIAIR’s Dual Gen2 485C Onboard Air System (OBA) is our first OBA with new 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 485C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.

The Gen2 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.

Specifications

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
  • Net Weight: 22.10 lbs.

Features

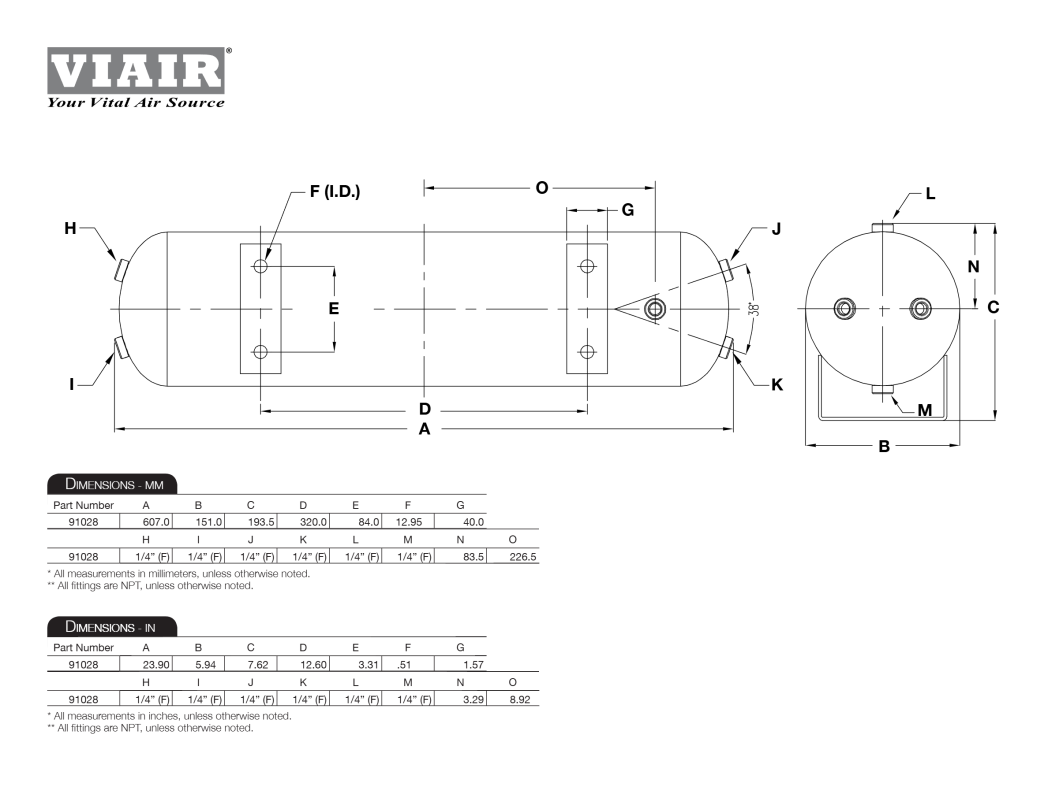

  • 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)

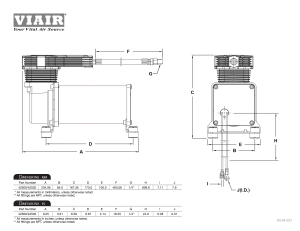

  • (2) 485C VIAIR (Platinum or Stealth Black) Compressors
    w/Thermal Overload Protectors
  • Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
  • Digital Tire Inflation Gun (180PSI)
  • 0-220 PSI Pressure Regulator
  • Sealed Pressure Switch (165 PSI on, 200 PSI off)
  • 1/4” Drain Cock
  • Heavy Duty 80-Amp Relay
  • Mini ANL Fuse Holder with 60-Amp Fuse
  • 1/4” Quick Connect Coupler (M)
  • 1/4” 250 PSI Safety Valve
  • (4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings
  • 6-Port Billet Manifold with Mounting Bracket (1/4”)
  • (2) 20ft. 1/4” Air Line Included
  • 5pc. 1/4” NPT Plugs Kit
  • Extension Braided Black Coil Hose
  • Rubber Tip Blow Gun
  • 3-in-1 Air Down Gauge
  • Stainless Steel Air Line Cutter

TIRE FILL RATE

37″ x 12.5″ FILL RATE
0 to 30 PSI 3 min. 46 sec. (± 10 sec.)
15 to 30 PSI 1 min. 52 sec. (± 10 sec.)
40″ x 15.5″ FILL RATE
0 to 30 PSI 4 min. 39 sec. (± 15 sec.)
15 to 30 PSI 2 min. 02 sec. (± 10 sec.)



TANK FILL RATE

2.5 GALLON TANK FILL RATE
0 to 200 PSI 2 min. 20 sec. (± 10 sec.)
165 to 200 PSI 35 sec. (± 03 sec.)

Application List

Universal - Check Specification Before Ordering

Details

  • 20185
  • 20185
  • VIAIR
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 45.0 lbs.
  • W16.0000” x H24.0000” x L30.0000”
