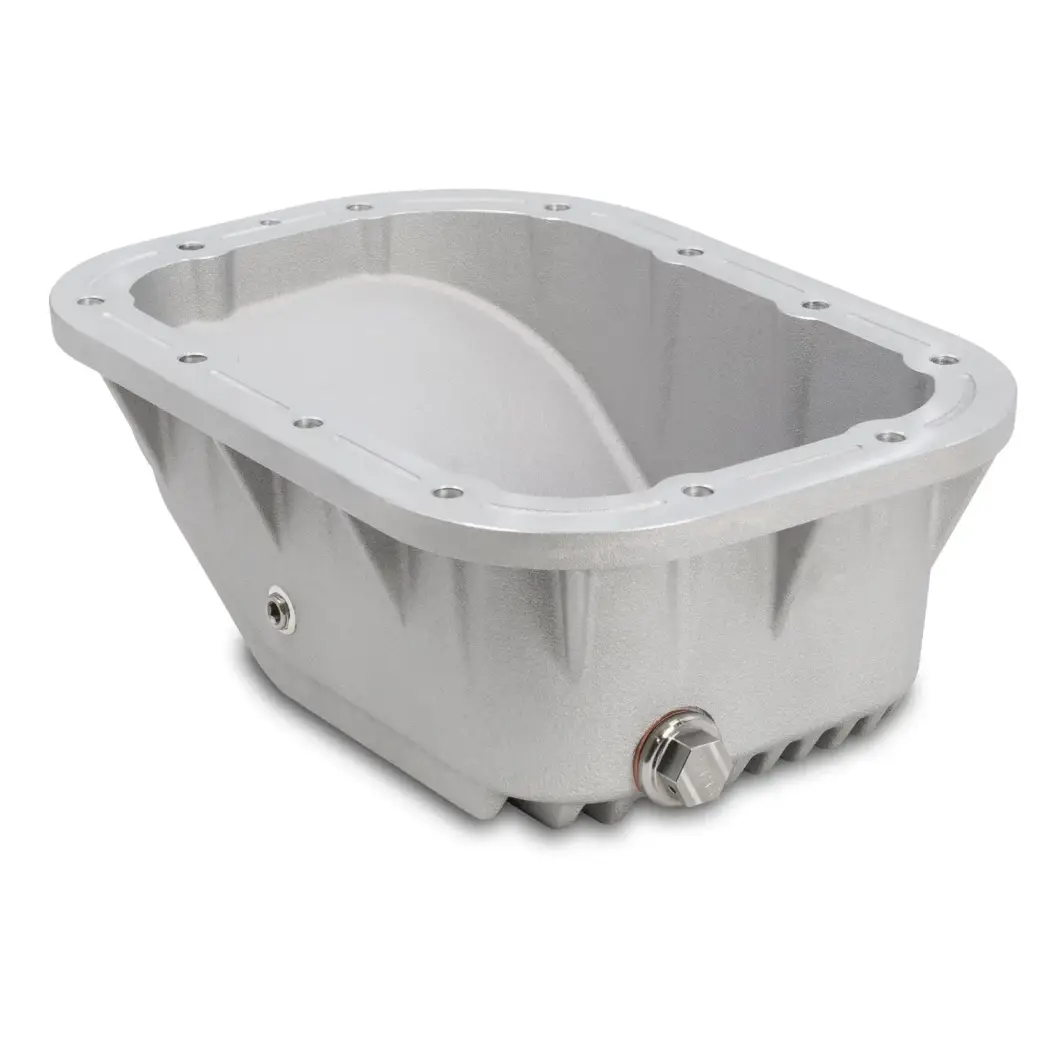

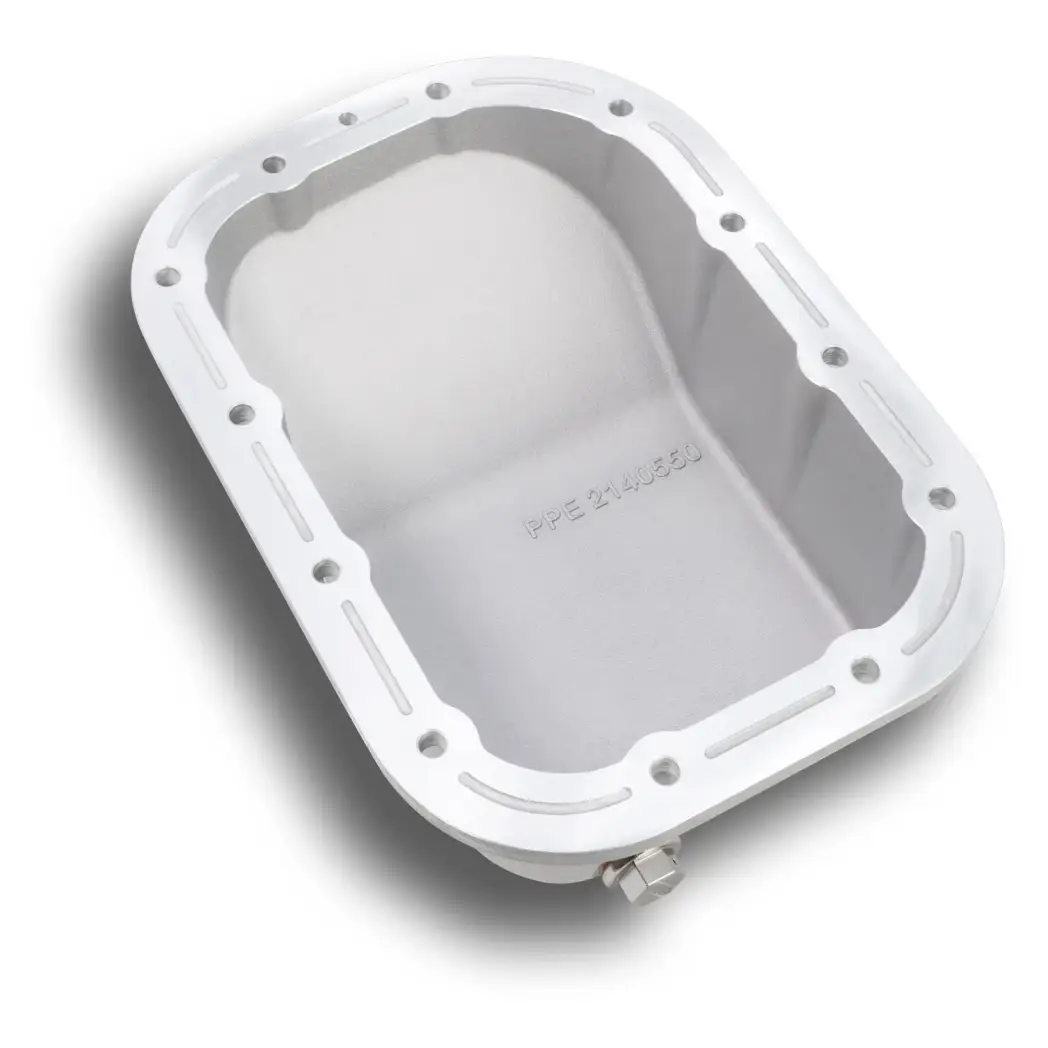

214055000 | PPE Performance Heavy-Duty Cast Aluminum Engine Oil Pan Raw Finish (2018-2025 Wrangler JL, Gladiator JT 3.6L )

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases oil capacity by a half quart for higher thermal capacity
• Half-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Cast-in gussets for additional upper oil pan flange support and increased rigidity
• Precision machined sealant grooves guide the application of RTV-style sealant for a consistent bead and a reliable seal
• Stainless steel drain plug with built-in high temperature rated neodymium magnet
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug

Engine Oil Pan for 2018-2025 Jeep Wrangler/Gladiator JL/JT 3.6L

Whether your factory-stamped steel oil pan has become damaged, or rusted, or you want an easy bolt-on upgrade with better performance, the PPE Cast Aluminum (Jeep 3.6L) Engine Oil Pan is your best choice for increased strength and lower oil temps.

Thick, cast A356.0T-6 aluminum is superior to stamped steel for cooling performance. PPE has engineered deep exterior fins that increase surface area and use underside airflow to lower oil temperatures. Gussets and a 3/8" flange provide strength and rigidity to the housing. The high-power Neodymium magnet equipped, hardened billet stainless steel drain plug attracts and holds damaging ferrous metals. The factory plug has no magnet and provides no protection. The location of the factory drain plug also results in at least 1/4 quart of viscous dirty oil remaining during an oil change. The PPE pan promotes complete oil drainage and you will have zero contamination from the old oil ever after.

Upgrade performance looks, and quality with this easy install.

Recommendation Disclaimer
If using a copper washer SKU 114052002 on the drain plug, replace it with a new washer during each service.
If using a compound washer SKU 114052004, inspect the washer during each service and replace as needed.

OEM P/N for Reference: Jeep 68313584AD
