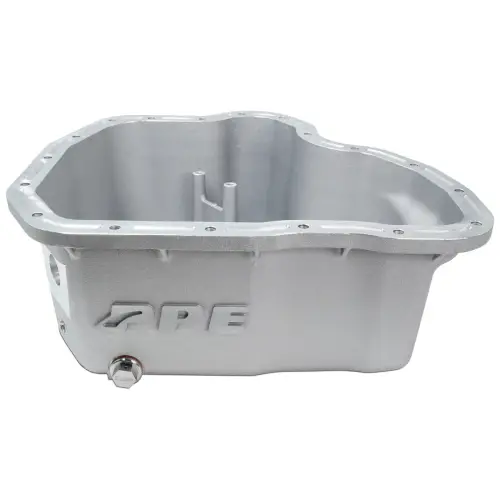

114052100 | PPE Performance Heavy-Duty Cast Aluminum Engine Oil Pan Raw Finish (2011-2016 Silverado, Sierra 2500 HD, 3500 HD 6.6L td)

2011-2016 Silverado, Sierra 2500 HD, 3500 HD 6.6L td

114052100
Pricing: $403.19
Qty:
Free Ground Shipping | Exclusions Apply*

Description

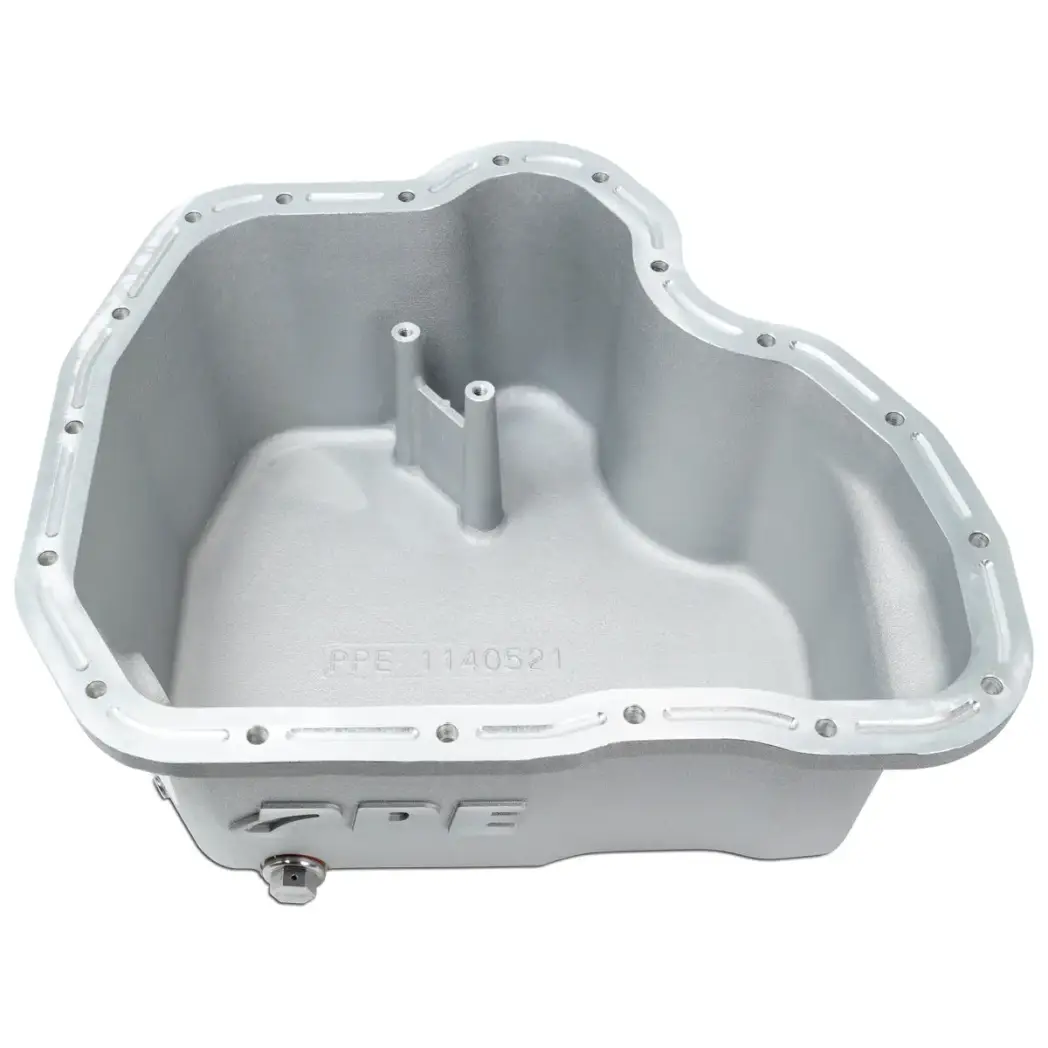

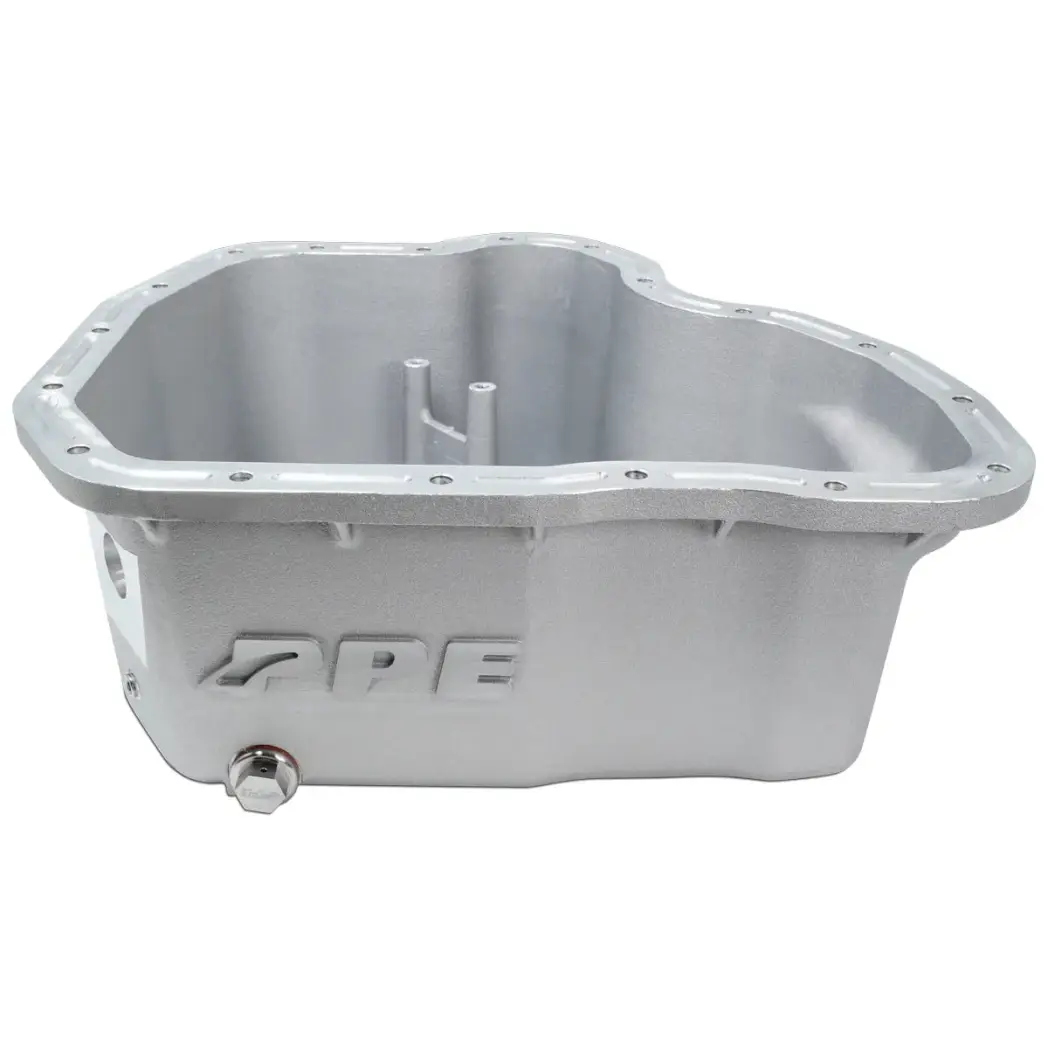

2011-2016 GM 6.6L Duramax Heavy-Duty Cast Aluminum Engine Oil Pan

PART NUMBER: 114052100
GTIN: 840171206517

OEM P/N REFERENCE:

Features

  • Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
  • Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy

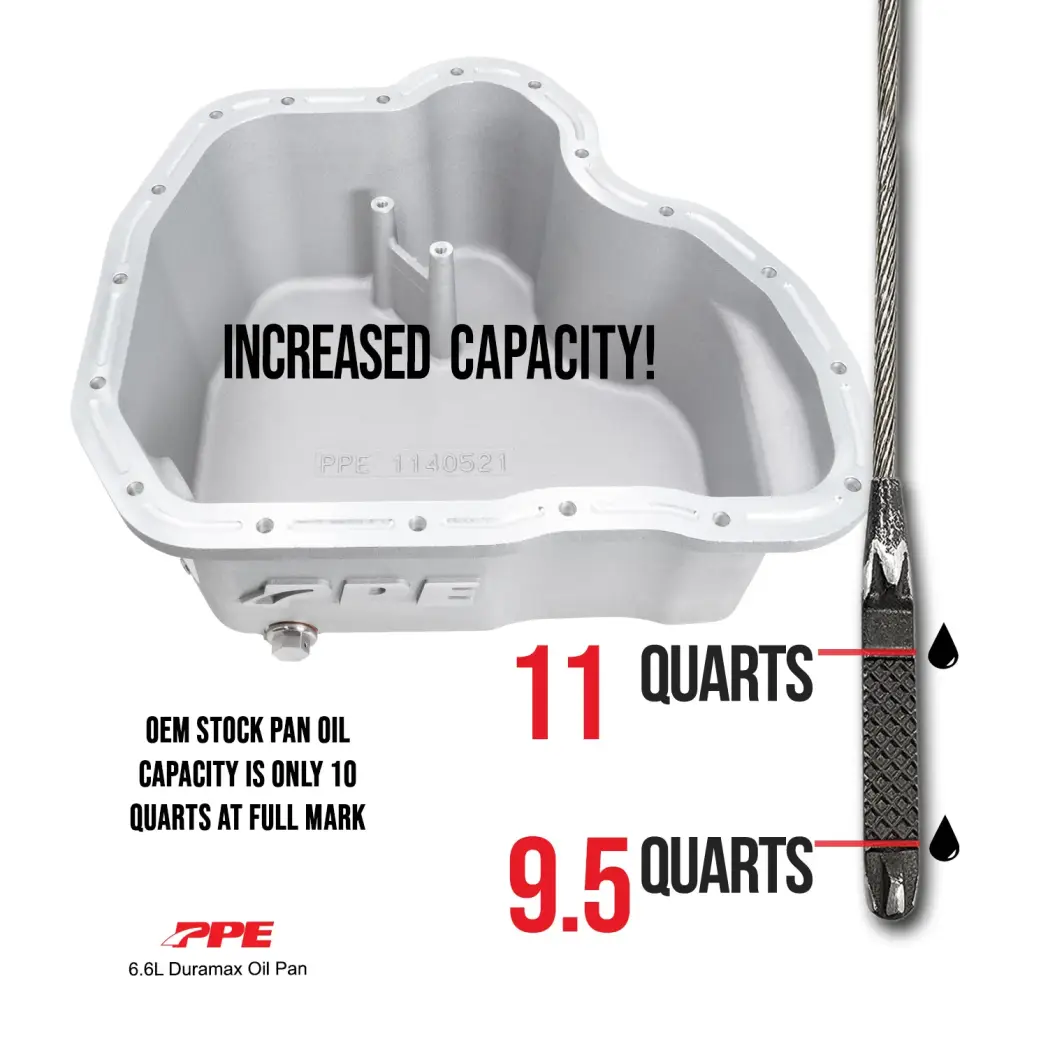

  • Increases oil capacity by one quart for higher thermal capacity
  • Longitudinal cooling channels along the bottom of the pan, increasing external surface area and enhancing heat dissipation
  • Cast-in gussets for additional upper oil pan flange support and increased rigidity
  • Precision machined sealant grooves guide the application of RTV-style sealant for a consistent bead and a reliable seal
  • Stainless steel drain plug with built-in high temperature rated neodymium magnet
  • Equipped with a 1/8-inch NPT port with pre-installed NPT plug

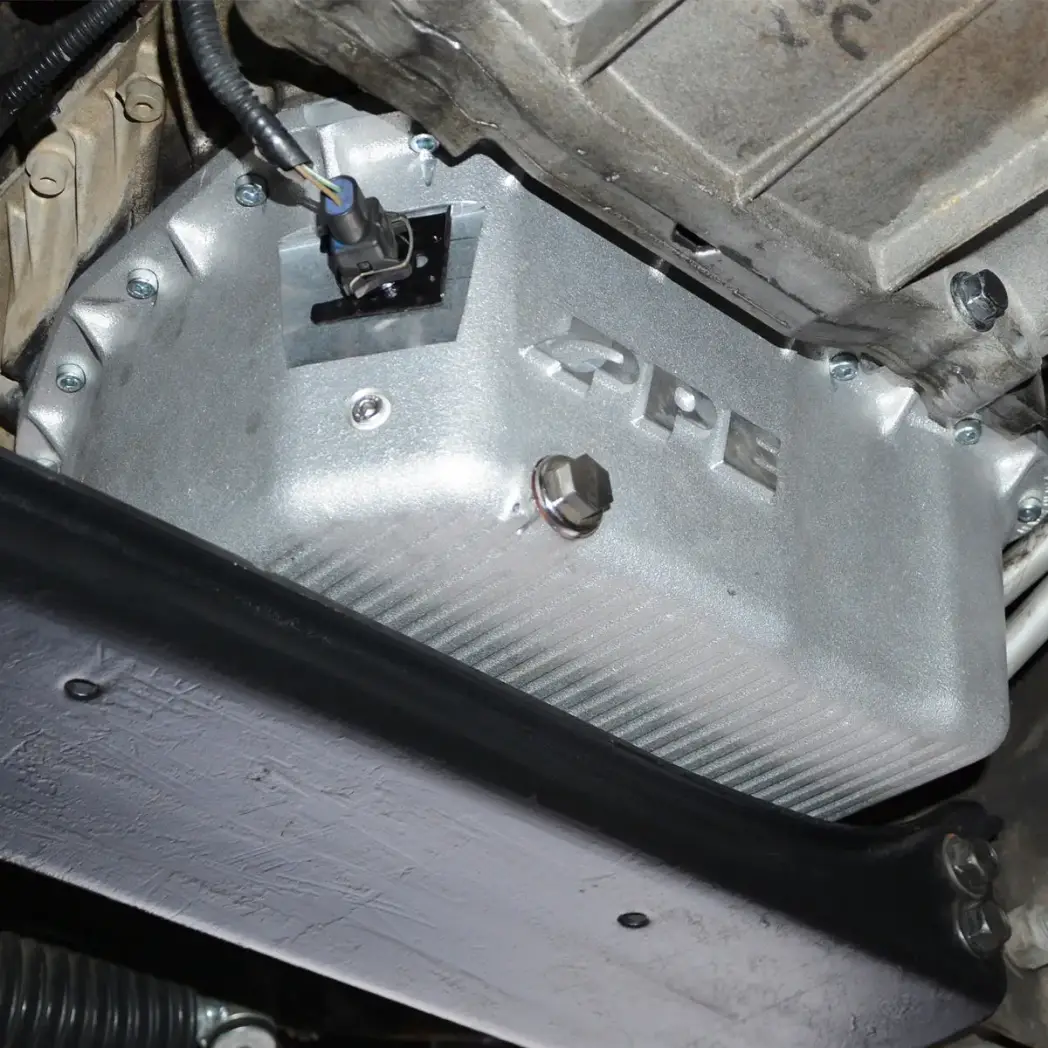

  • Compatible with the OEM oil level sensor

PPE High-Capacity Cast Aluminum Engine Oil Pan

Ditch the grit. Get rid of the dirtiest oil left in the valley of your stock pan from all your previous oil changes.

The stock Duramax engine oil pan is stamped steel (very poor heat dissipation) and there is a valley in the pan that prevents your old oil from being completely drained on each oil change. This leaves behind nearly a quart of the dirtiest oil, which immediately contaminates your fresh oil.

PPE solves these problems. First, this deep pan is engineered with a flat bottom. This feature allows you to drain all of your oil pan’s dirty engine oil. Second, it’s made from cast A356.0-T6 aluminum using permanent steel molds for strength and optimum heat dissipation. Third, PPE’s new deep oil pan holds an extra quart of oil so you will see reduced oil temperature, higher oil pressure, and better lubrication to your engine’s vital components.

Another feature is the unshrouded oil pickup. The engine then has less restriction near the oil pickup, resulting in higher oil pressure. Higher oil pressure equals better lubrication.

Cast Aluminum Deep Engine Oil Pan Kit

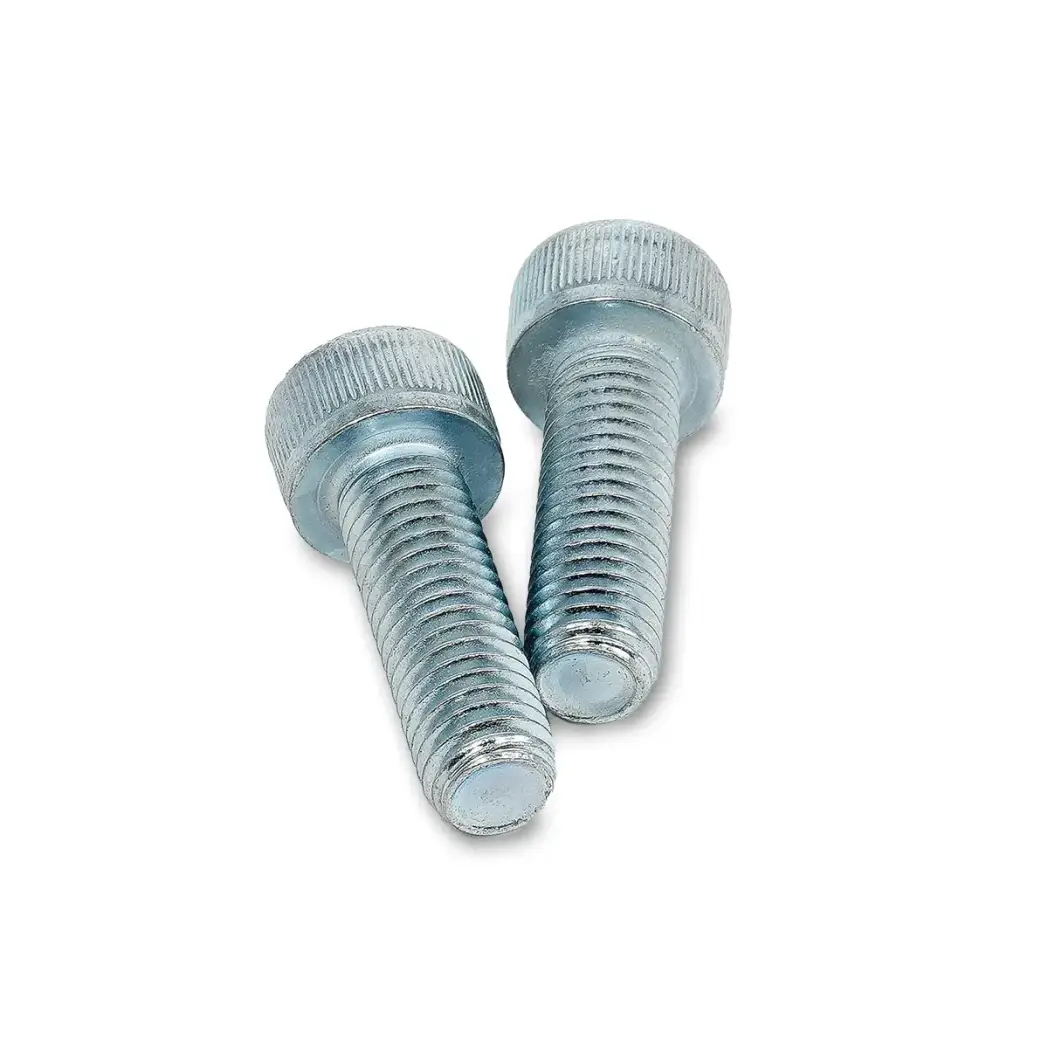

PPE High-Capacity Cast Aluminum Deep Engine Oil Pan Kit comes complete with fasteners, pan, NPT plug, and billet stainless steel Neodymium drain plug. All you add is oil and RTV sealant.

Learn more about the 2011-2016 GM 6.6L Duramax PPE High-Capacity Cast Aluminum Engine Oil Pan from Truck Trend!

Learn more about the 2011-2016 GM 6.6L Duramax PPE High-Capacity Cast Aluminum Engine Oil Pan from Truck Tech's SuperMax Project!

Recommendation Disclaimer
If using a copper washer SKU 114052002 on the drain plug, replace it with a new washer during each service.
If using a compound washer SKU 114052004, inspect the washer during each service and replace as needed.

Replaces GM P/N 12669869, 12627247, 12638438, 12647331, 12650979

PPE High-Capacity Cast Aluminum Engine Oil Pan

Application List

2016 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2016 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2016 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2016 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
2016 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
2016 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2016 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2016 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2016 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2016 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2015 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2015 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2015 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2015 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
2015 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
2015 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2015 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2015 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2015 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2015 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2014 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2014 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2014 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2014 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
2014 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
2014 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2014 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2014 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2014 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2014 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2013 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2013 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2013 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2013 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
2013 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2013 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2013 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2013 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2013 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2012 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2012 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2012 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2012 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
2012 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2012 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2012 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2012 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2012 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2011 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2011 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2011 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2011 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
2011 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
2011 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2011 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2011 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2011 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2011 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 8.7 lbs.
  • W12.7500” x H6.7500” x L14.5000”
  • Free Ground Shipping | Exclusions Apply*
