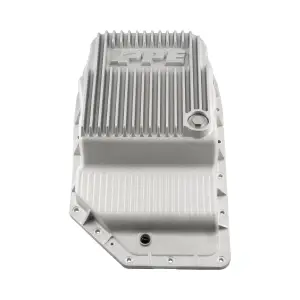

128051900 | PPE Performance Heavy-Duty Cast Aluminum Transmission Pan Raw Finish (2007-2023 GM 6L90)

2007-2023 GM 6L90

128051900
Pricing: $415.79
Qty:
Free Ground Shipping | Exclusions Apply*

Description

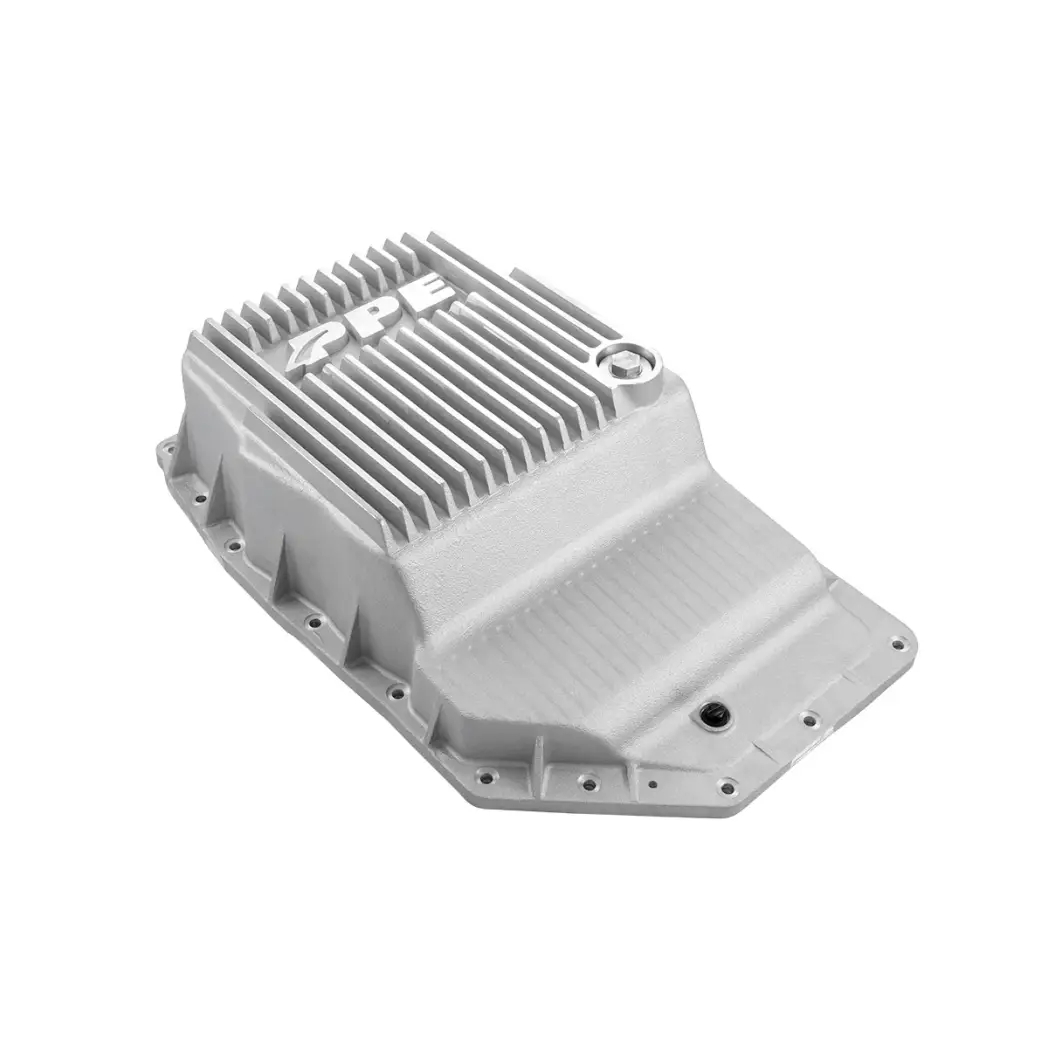

2007-2023 GM 6L90 Heavy-Duty Cast Aluminum Transmission Pan

      PART NUMBER: 128051900GTIN: 840171229585

OEM P/N REFERENCE: GM 24226851, 24248164, 24297102, FILTER: 24258269, GASKET: 24226850

Features

  • Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
  • Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
  • Increases fluid capacity by 1.5 quarts for higher thermal capacity

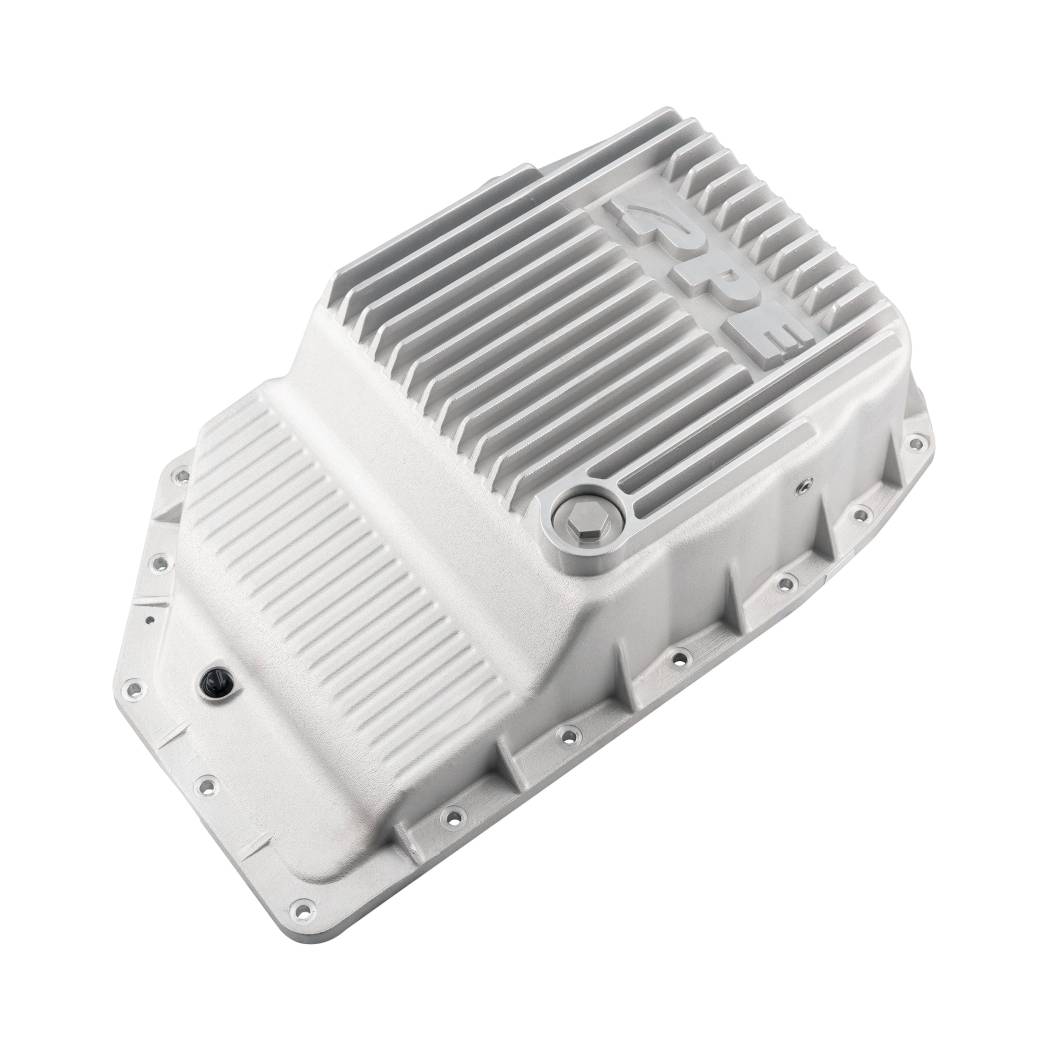

  • Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
  • Half-inch Internal baffles enhance heat absorption and minimize fluid sloshing
  • External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
  • Cast-in gussets for additional transmission housing flange support and increased rigidity
  • 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
  • Fluid level check plug included for easy services
  • Equipped with a 1/8-inch NPT port with pre-installed NPT plug
  • Integrated filter supports ensure proper filter placement

GM 6L90 Cast Aluminum Transmission Pan, Heavy-Duty

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 1.5 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

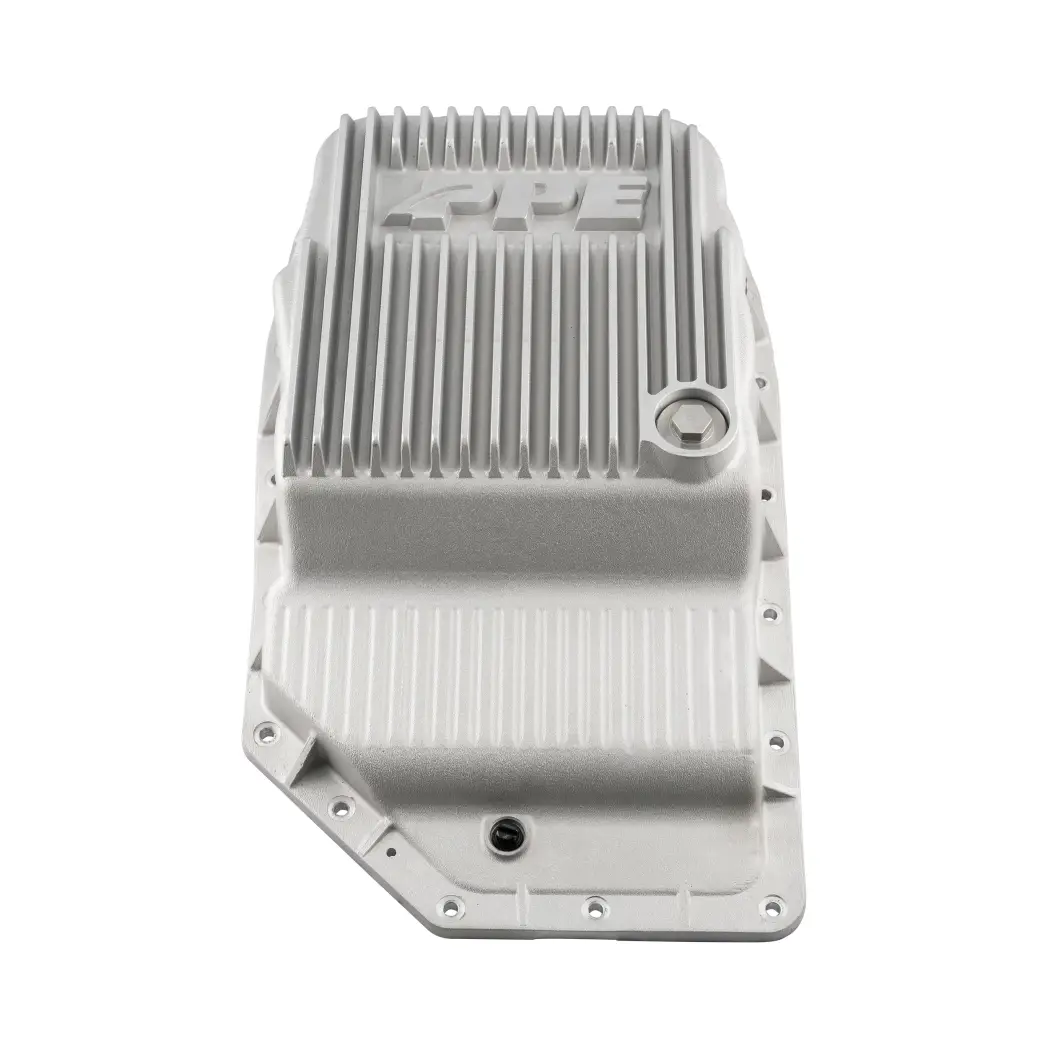

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

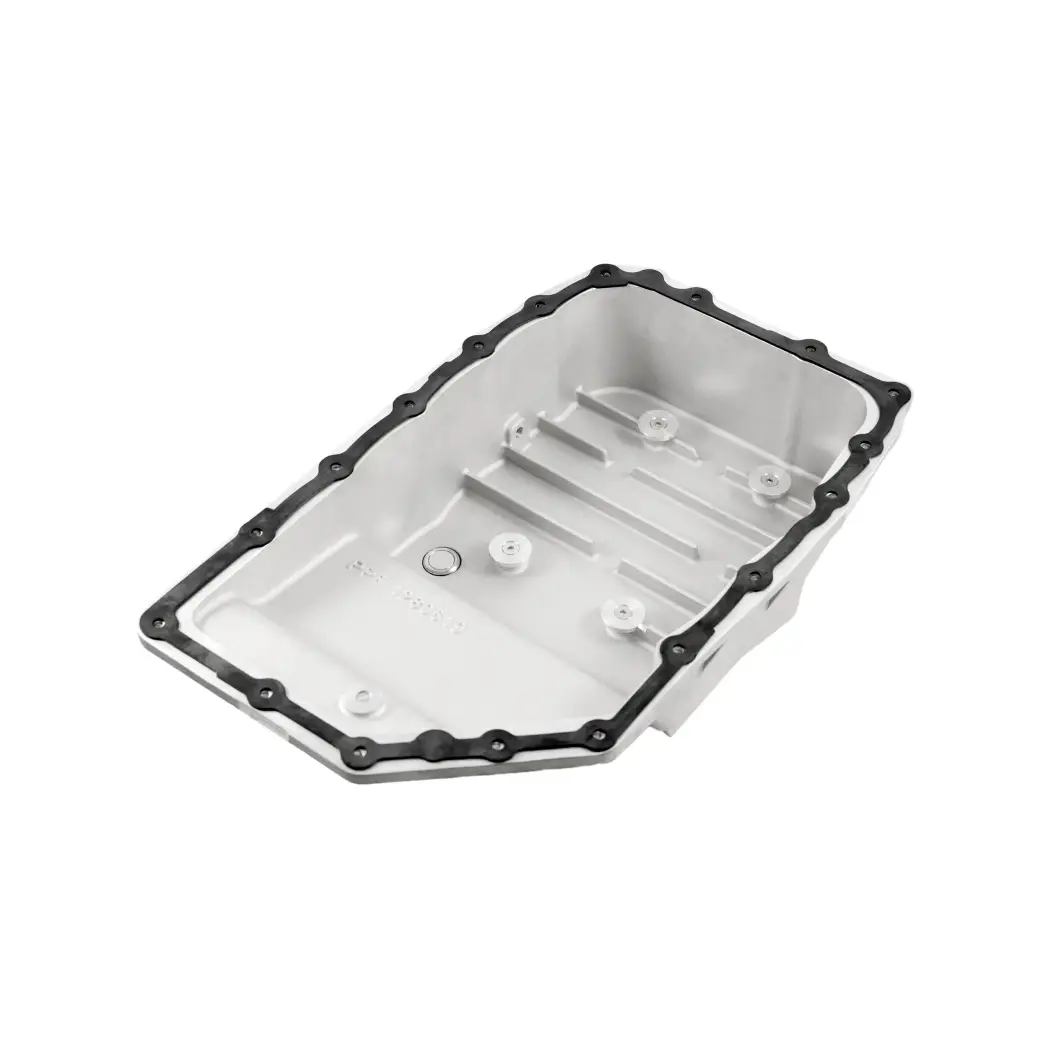

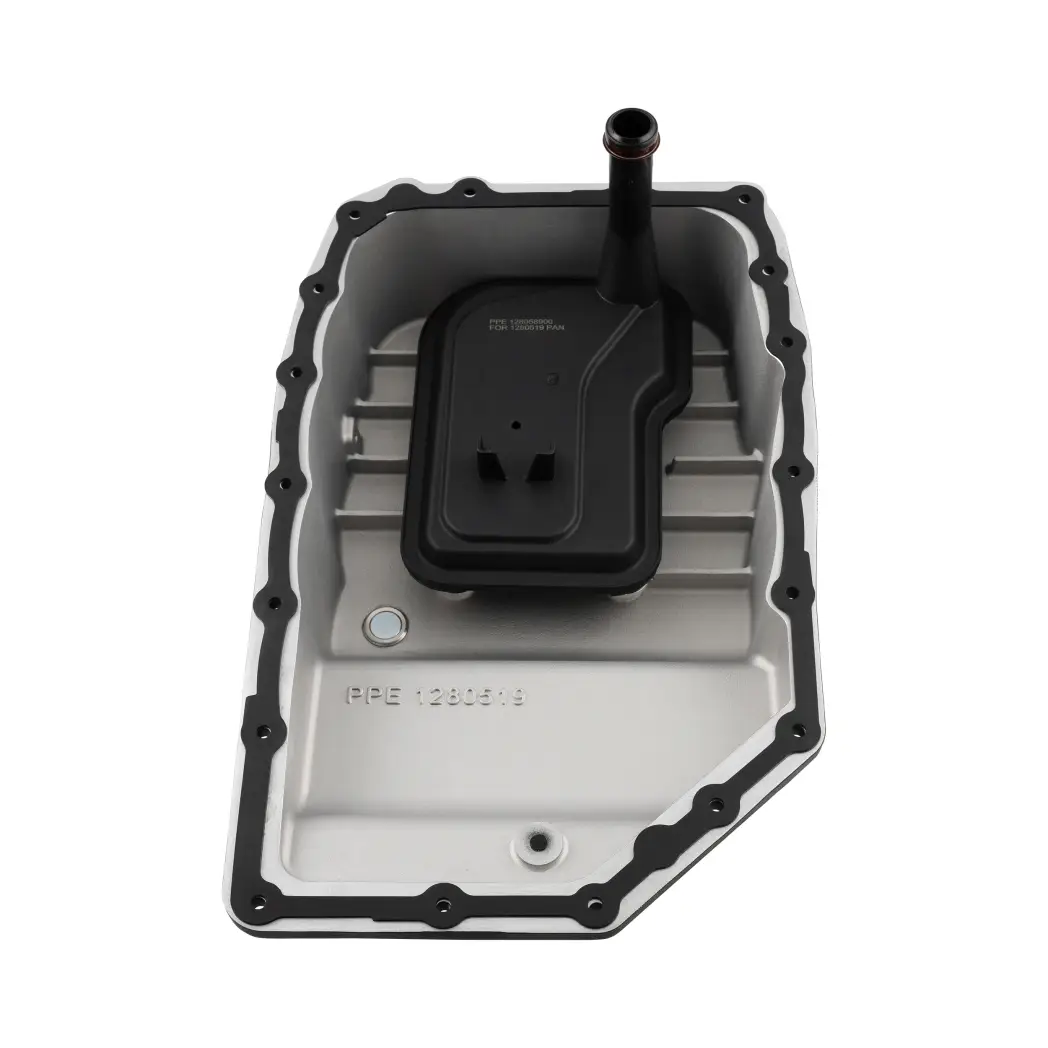

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

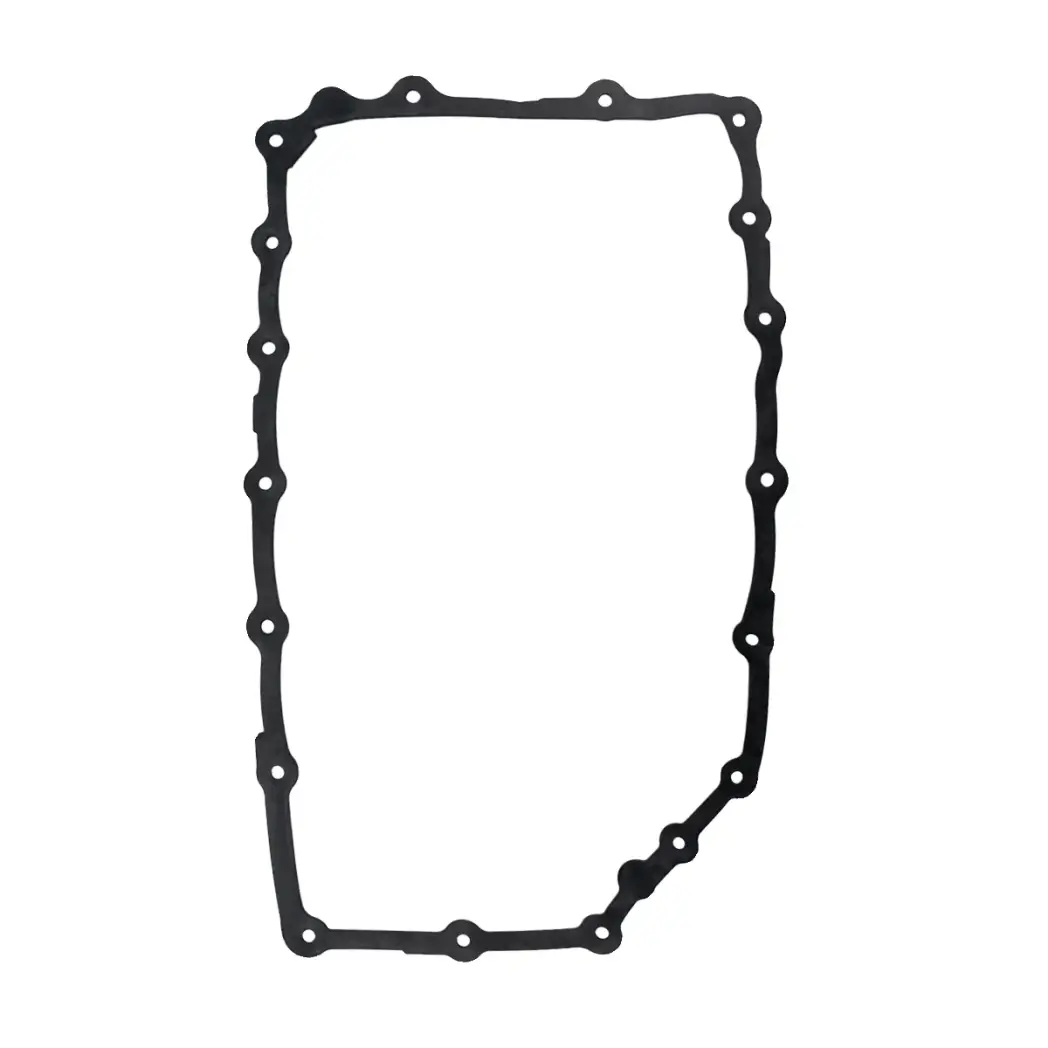

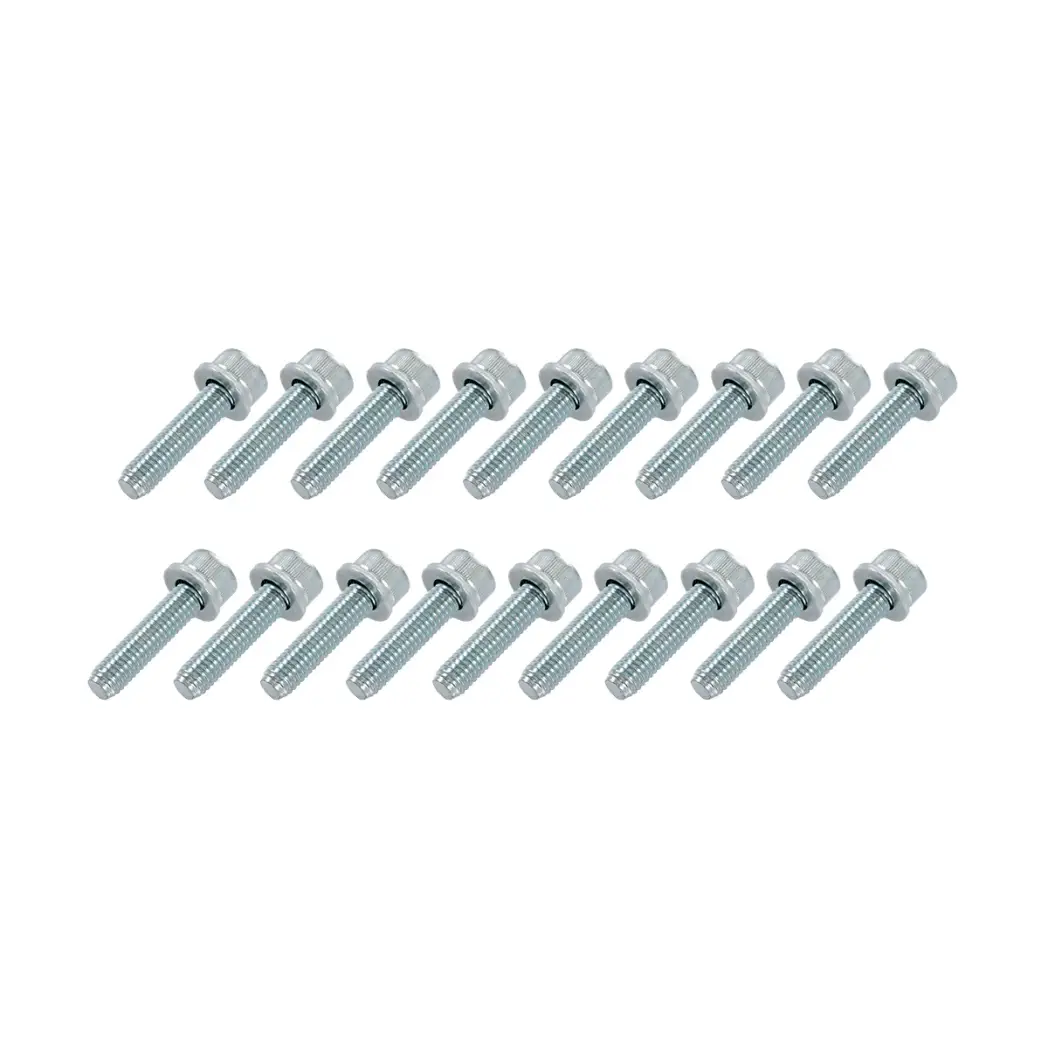

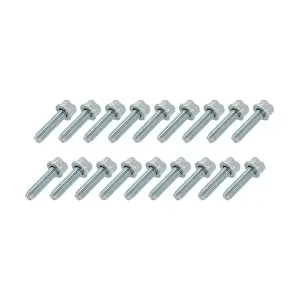

The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission. The built-in filter supports ensure proper filter placement. The fluid level check port ensures proper fluid level during each filling process. Installation hardware, rubber gasket and transmission filter are included.

Keep your 6-speed transmission running longer, healthier, and cooler with PPE.

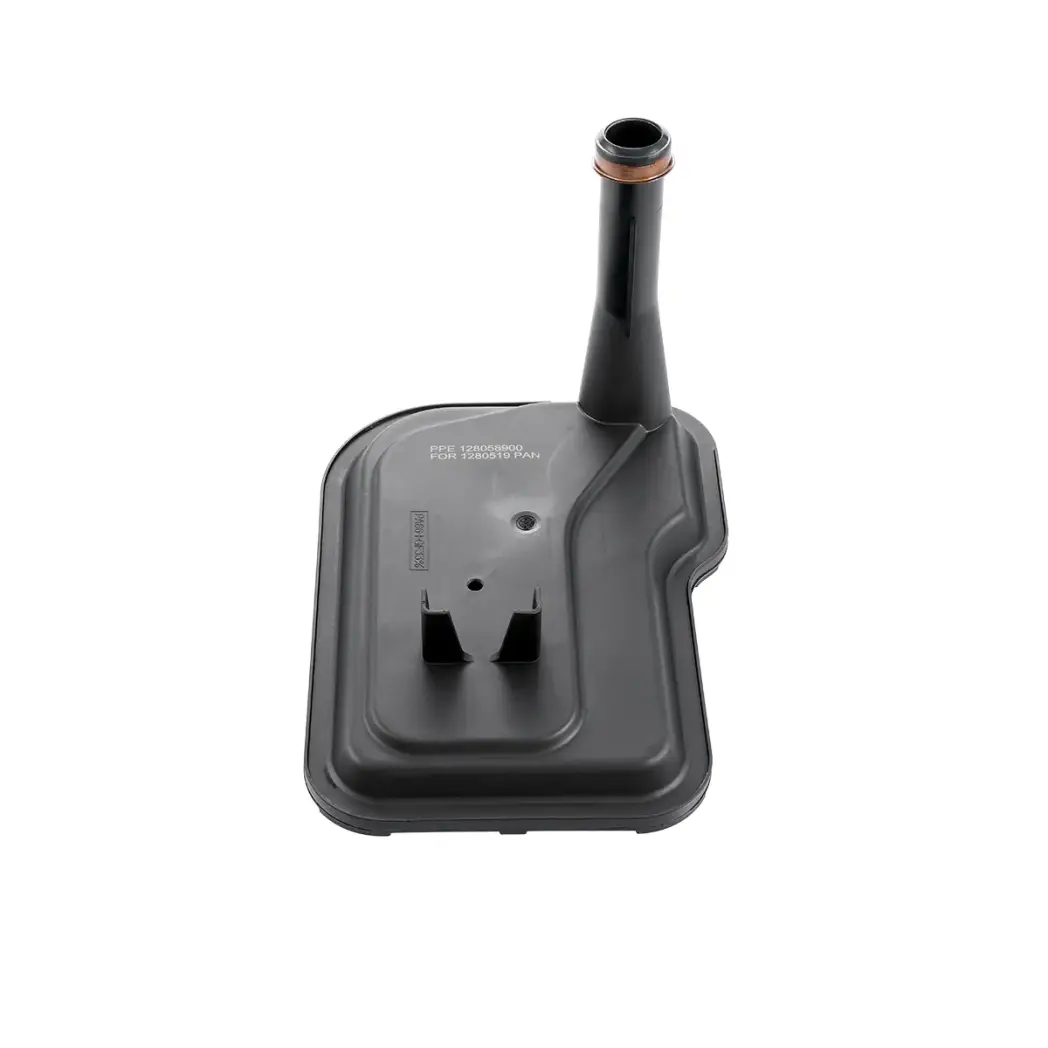

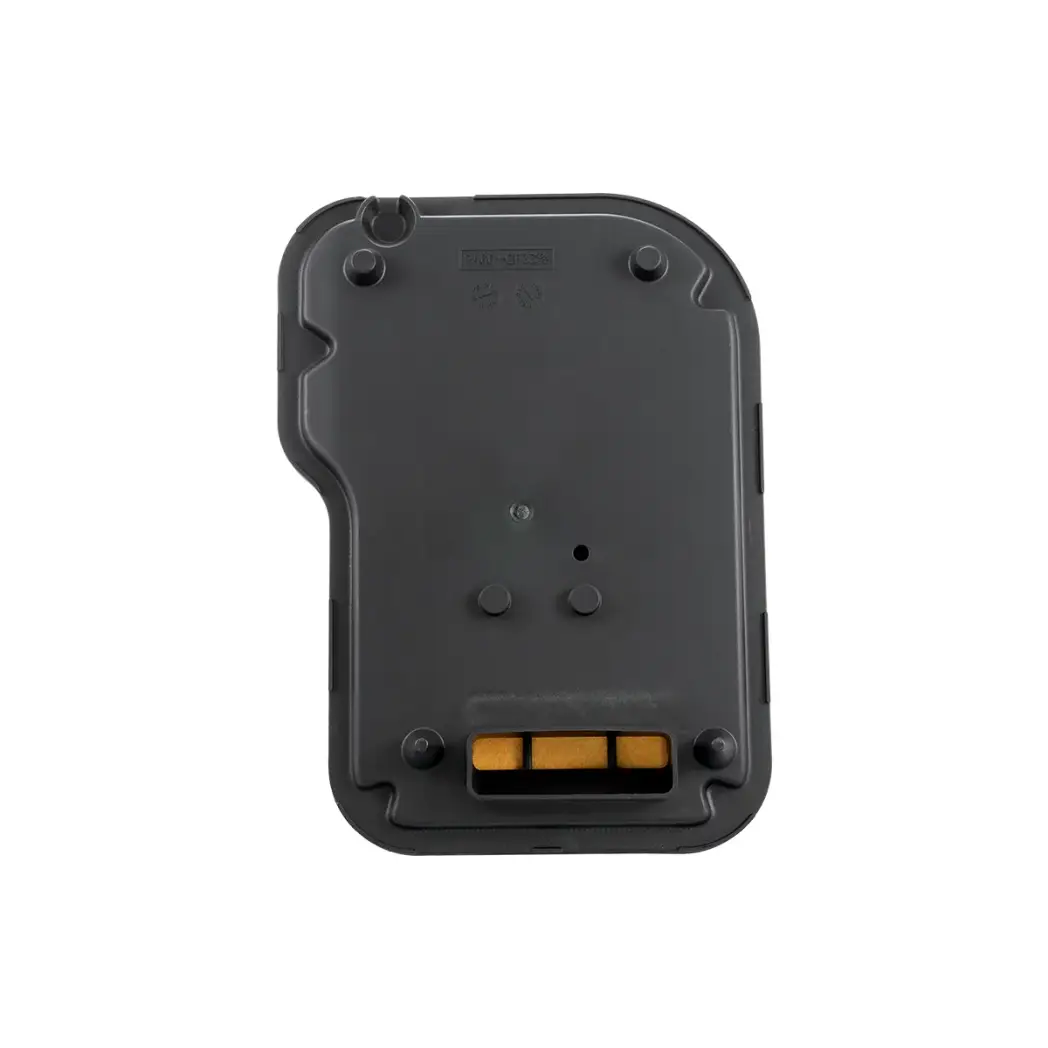

Check your vehicle for clearance issues with the exhaust, drive shaft, and frame cross members. For filter replacement, use PPE Transmission Filter SKU 128058900.

Application List

2010 Chevrolet Express 1500 4.3L V6 Gas
2011 Chevrolet Express 1500 4.3L V6 Gas
2012 Chevrolet Express 1500 4.3L V6 Gas
2013 Chevrolet Express 1500 4.3L V6 Gas
2014 Chevrolet Express 1500 4.3L V6 Gas
2010 Chevrolet Express 2500 4.8L V8 Gas
2011 Chevrolet Express 2500 4.8L V8 Gas
2012 Chevrolet Express 2500 4.8L V8 Gas
2013 Chevrolet Express 2500 4.8L V8 Gas
2014 Chevrolet Express 2500 4.8L V8 Gas
2015 Chevrolet Express 2500 4.8L V8 Gas
2016 Chevrolet Express 2500 4.8L V8 Gas
2017 Chevrolet Express 2500 4.8L V8 Gas
2010 Chevrolet Express 2500 6.0L V8 Gas
2011 Chevrolet Express 2500 6.0L V8 Gas
2012 Chevrolet Express 2500 6.0L V8 Gas
2013 Chevrolet Express 2500 6.0L V8 Gas
2014 Chevrolet Express 2500 6.0L V8 Gas
2015 Chevrolet Express 2500 6.0L V8 Gas
2016 Chevrolet Express 2500 6.0L V8 Gas
2017 Chevrolet Express 2500 6.0L V8 Gas
2018 Chevrolet Express 2500 6.0L V8 Gas
2019 Chevrolet Express 2500 6.0L V8 Gas
2020 Chevrolet Express 2500 6.0L V8 Gas
2010 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2011 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2012 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2013 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2014 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2015 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2016 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
2021 Chevrolet Express 2500 6.6L V8 Gas
2022 Chevrolet Express 2500 6.6L V8 Gas
2023 Chevrolet Express 2500 6.6L V8 Gas
2010 Chevrolet Express 3500 4.8L V8 Gas
2011 Chevrolet Express 3500 4.8L V8 Gas
2012 Chevrolet Express 3500 4.8L V8 Gas
2013 Chevrolet Express 3500 4.8L V8 Gas
2014 Chevrolet Express 3500 4.8L V8 Gas
2015 Chevrolet Express 3500 4.8L V8 Gas
2016 Chevrolet Express 3500 4.8L V8 Gas
2017 Chevrolet Express 3500 4.8L V8 Gas
2010 Chevrolet Express 3500 6.0L V8 Gas
2011 Chevrolet Express 3500 6.0L V8 Gas
2012 Chevrolet Express 3500 6.0L V8 Gas
2013 Chevrolet Express 3500 6.0L V8 Gas
2014 Chevrolet Express 3500 6.0L V8 Gas
2015 Chevrolet Express 3500 6.0L V8 Gas
2016 Chevrolet Express 3500 6.0L V8 Gas
2017 Chevrolet Express 3500 6.0L V8 Gas
2018 Chevrolet Express 3500 6.0L V8 Gas
2019 Chevrolet Express 3500 6.0L V8 Gas
2020 Chevrolet Express 3500 6.0L V8 Gas
2010 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2011 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2012 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2013 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2014 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2015 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2016 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
2021 Chevrolet Express 3500 6.6L V8 Gas
2022 Chevrolet Express 3500 6.6L V8 Gas
2023 Chevrolet Express 3500 6.6L V8 Gas
2010 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2011 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2012 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2013 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2014 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2015 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2016 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
2007 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2008 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2009 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2010 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2011 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2012 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2013 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2014 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2015 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2016 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2017 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2018 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2019 Chevrolet Silverado 2500 HD 6.0L V8 Gas
2020 Chevrolet Silverado 2500 HD 6.6L V8 Gas
2021 Chevrolet Silverado 2500 HD 6.6L V8 Gas
2022 Chevrolet Silverado 2500 HD 6.6L V8 Gas
2023 Chevrolet Silverado 2500 HD 6.6L V8 Gas
2007 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2008 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2009 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2010 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2011 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2012 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2013 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2014 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2015 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2016 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2017 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2018 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2019 Chevrolet Silverado 3500 HD 6.0L V8 Gas
2020 Chevrolet Silverado 3500 HD 6.6L V8 Gas
2021 Chevrolet Silverado 3500 HD 6.6L V8 Gas
2022 Chevrolet Silverado 3500 HD 6.6L V8 Gas
2023 Chevrolet Silverado 3500 HD 6.6L V8 Gas
2007 Chevrolet Suburban 6.0L V8 Gas
2008 Chevrolet Suburban 6.0L V8 Gas
2009 Chevrolet Suburban 6.0L V8 Gas
2010 Chevrolet Suburban 6.0L V8 Gas
2011 Chevrolet Suburban 6.0L V8 Gas
2012 Chevrolet Suburban 6.0L V8 Gas
2013 Chevrolet Suburban 6.0L V8 Gas
2010 GMC Savana 2500 6.0L V8 Gas
2011 GMC Savana 2500 6.0L V8 Gas
2012 GMC Savana 2500 6.0L V8 Gas
2013 GMC Savana 2500 6.0L V8 Gas
2014 GMC Savana 2500 6.0L V8 Gas
2015 GMC Savana 2500 6.0L V8 Gas
2016 GMC Savana 2500 6.0L V8 Gas
2017 GMC Savana 2500 6.0L V8 Gas
2018 GMC Savana 2500 6.0L V8 Gas
2019 GMC Savana 2500 6.0L V8 Gas
2020 GMC Savana 2500 6.0L V8 Gas
2010 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
2011 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
2021 GMC Savana 2500 6.6L V8 Gas
2022 GMC Savana 2500 6.6L V8 Gas
2023 GMC Savana 2500 6.6L V8 Gas
2010 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
2011 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
2021 GMC Savana 3500 6.6L V8 Gas
2022 GMC Savana 3500 6.6L V8 Gas
2023 GMC Savana 3500 6.6L V8 Gas
2010 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2011 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2012 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2013 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2014 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2015 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2016 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
2007 GMC Sierra 2500 HD 6.0L V8 Gas
2008 GMC Sierra 2500 HD 6.0L V8 Gas
2009 GMC Sierra 2500 HD 6.0L V8 Gas
2010 GMC Sierra 2500 HD 6.0L V8 Gas
2011 GMC Sierra 2500 HD 6.0L V8 Gas
2012 GMC Sierra 2500 HD 6.0L V8 Gas
2013 GMC Sierra 2500 HD 6.0L V8 Gas
2014 GMC Sierra 2500 HD 6.0L V8 Gas
2015 GMC Sierra 2500 HD 6.0L V8 Gas
2016 GMC Sierra 2500 HD 6.0L V8 Gas
2017 GMC Sierra 2500 HD 6.0L V8 Gas
2018 GMC Sierra 2500 HD 6.0L V8 Gas
2019 GMC Sierra 2500 HD 6.0L V8 Gas
2020 GMC Sierra 2500 HD 6.6L V8 Gas
2021 GMC Sierra 2500 HD 6.6L V8 Gas
2022 GMC Sierra 2500 HD 6.6L V8 Gas
2023 GMC Sierra 2500 HD 6.6L V8 Gas
2007 GMC Sierra 3500 HD 6.0L V8 Gas
2008 GMC Sierra 3500 HD 6.0L V8 Gas
2009 GMC Sierra 3500 HD 6.0L V8 Gas
2010 GMC Sierra 3500 HD 6.0L V8 Gas
2011 GMC Sierra 3500 HD 6.0L V8 Gas
2012 GMC Sierra 3500 HD 6.0L V8 Gas
2013 GMC Sierra 3500 HD 6.0L V8 Gas
2014 GMC Sierra 3500 HD 6.0L V8 Gas
2015 GMC Sierra 3500 HD 6.0L V8 Gas
2016 GMC Sierra 3500 HD 6.0L V8 Gas
2017 GMC Sierra 3500 HD 6.0L V8 Gas
2018 GMC Sierra 3500 HD 6.0L V8 Gas
2019 GMC Sierra 3500 HD 6.0L V8 Gas
2020 GMC Sierra 3500 HD 6.6L V8 Gas
2021 GMC Sierra 3500 HD 6.6L V8 Gas
2022 GMC Sierra 3500 HD 6.6L V8 Gas
2023 GMC Sierra 3500 HD 6.6L V8 Gas
2007 GMC Yukon XL 6.0L V8 Gas
2008 GMC Yukon XL 6.0L V8 Gas
2009 GMC Yukon XL 6.0L V8 Gas
2010 GMC Yukon XL 6.0L V8 Gas
2011 GMC Yukon XL 6.0L V8 Gas
2012 GMC Yukon XL 6.0L V8 Gas
2013 GMC Yukon XL 6.0L V8 Gas

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 13.8 lbs.
  • W12.0000” x H7.7500” x L19.7500”
