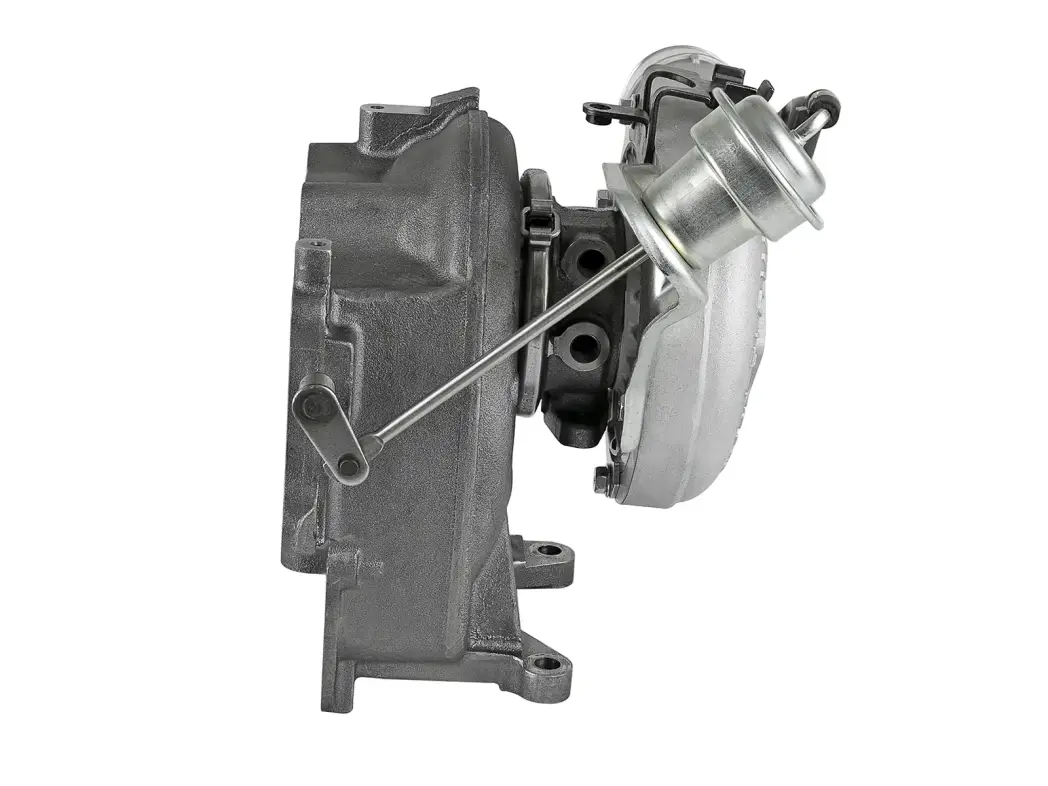

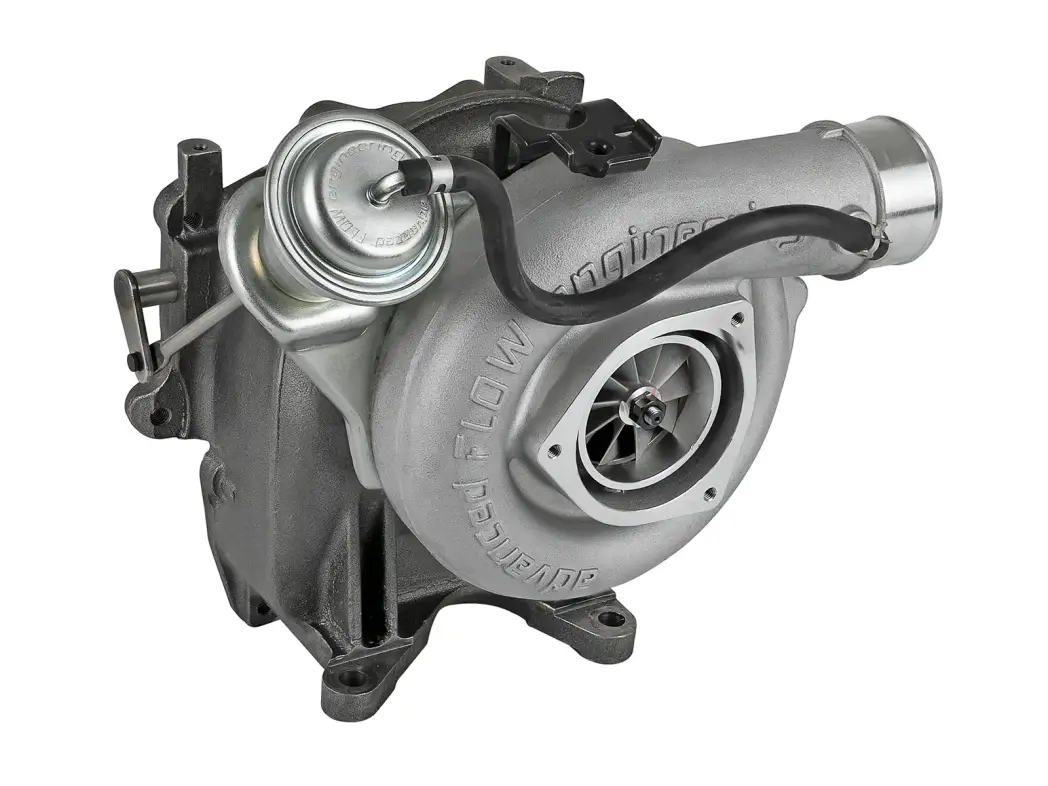

46-60100 | aFe Power BladeRunner Street Series Turbocharger (2001-2004 Silverado, Sierra 2500 HD, 3500 HD V8-6.6L (td) LB7)

• In house testing produced a max gain of +14 horsepower and +36 lbs. x ft. of torque, verified by our in house dyno
• Stock Replacement with no core charge

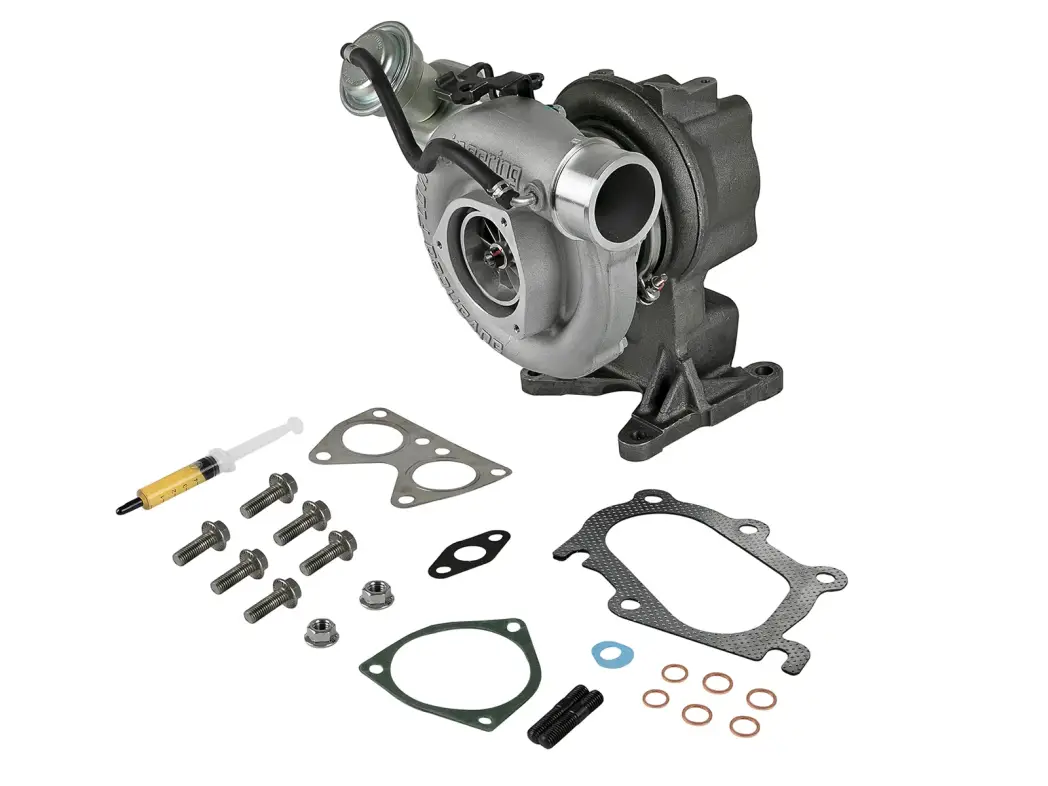

• A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
• Additional fueling is not required
• Wastegate actuator is included, comes preset to factory specifications
• 2-Year Warranty

Specifications:

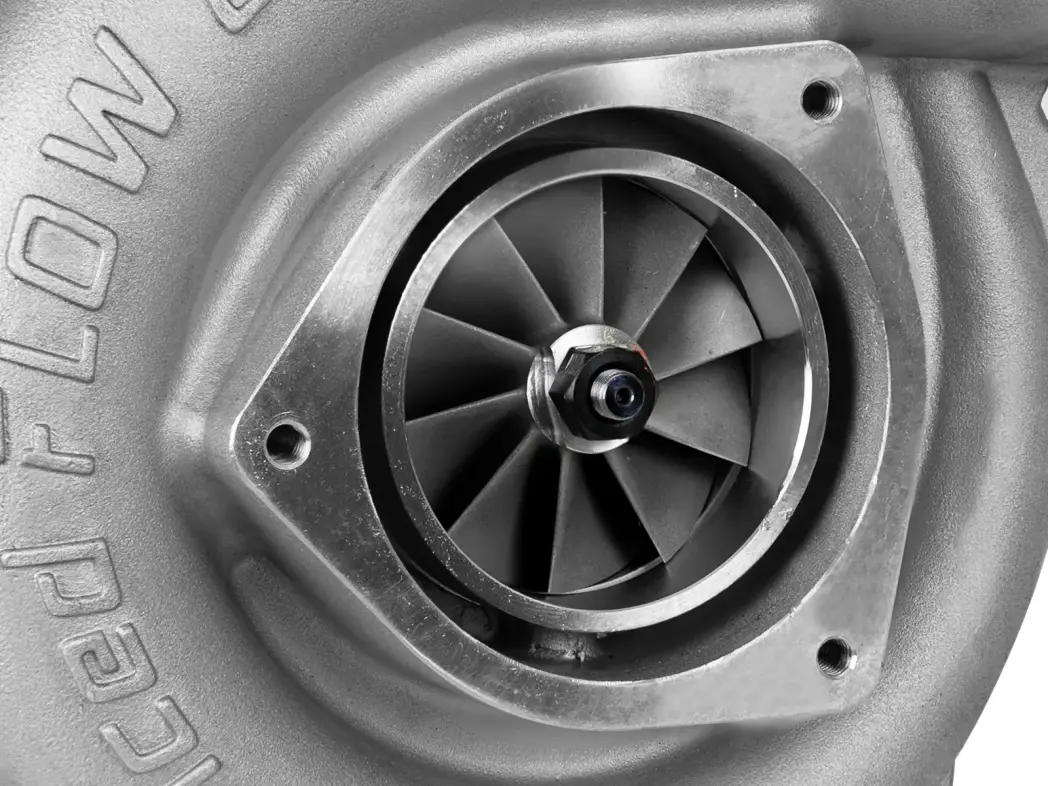

Compressor Inducer - 60.6mm
Compressor Exducer - 81.9mm
Compressor Blades - 10
Turbine Inducer - 67.8mm
Turbine Exducer - 62.0mm
Turbine Blades - 11

Compressor:
The A356 aluminum housing utilizes OE inlet and outlet connections.

Turbine:

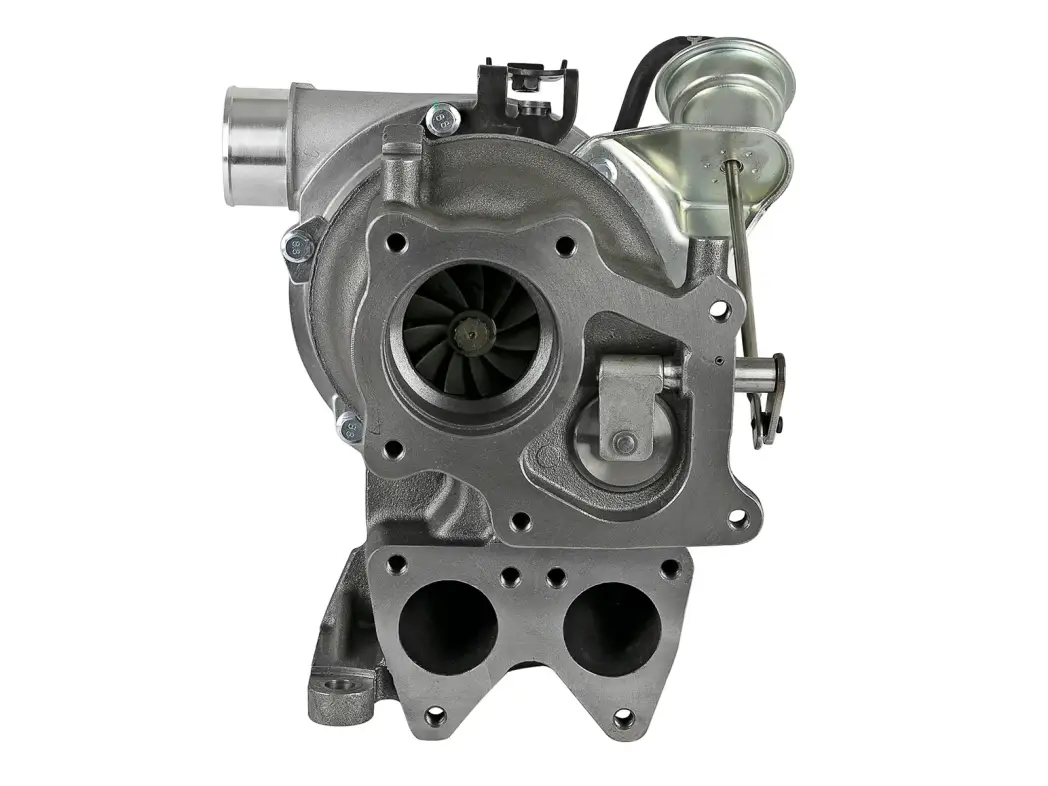

The one-piece ductile iron turbine housing will bolt to OE and aftermarket inlet and outlet connections.

Direct Replacement:
This turbo can be installed on 2001-2004 V8-6.6L (td) LB7 and is a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Additional fueling is not required for improved performance over OE, but maximum gains are achieved with fuel system upgrades.
