9401-4-B | PML Covers As GM 7.5/7.6 Patterned Fins 10 Bolt Differential Cover For Chevrolet Astro Van, Camaro & S10 / GMC Jimmy, S15, Safari Van, Sonoma & Typhoon | Black Powder Coated, Stock Bolt Size 5/16 Inch - 18x5/8 (-4)

Cover includes magnetic drain plug and mounting hardware.

Stock Bolt Size 5/16 Inch - 18x5/8 (-4)

Volume:

0.5 qt. over stock, approximately

Number of Bolts:

 10 bolts

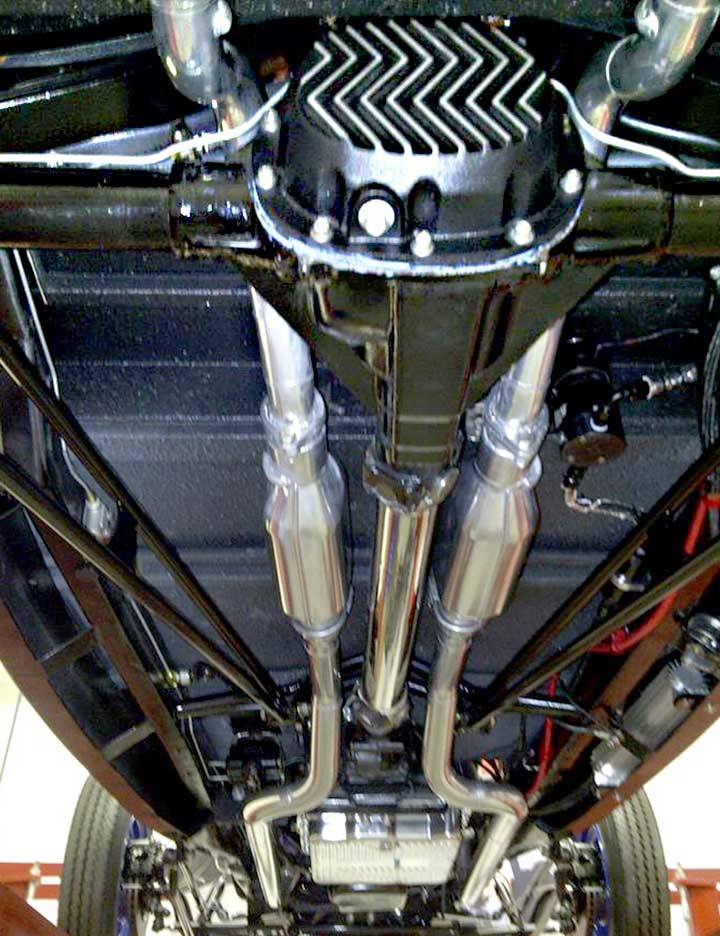

PML makes two covers for the GM 7.5, 7.625 inch ring gear differential, 10 bolts. This cover has patterned fins. For the other cover, see PML GM 7.5, 7.625, Straight Fins differential cover.

Benefits:

• Extra capacity
• Drain hole and magnetic drain plug to simplify maintenance
• Patterned fins for heat dissipation and a custom look
• Sand cast aluminum construction for thick walls

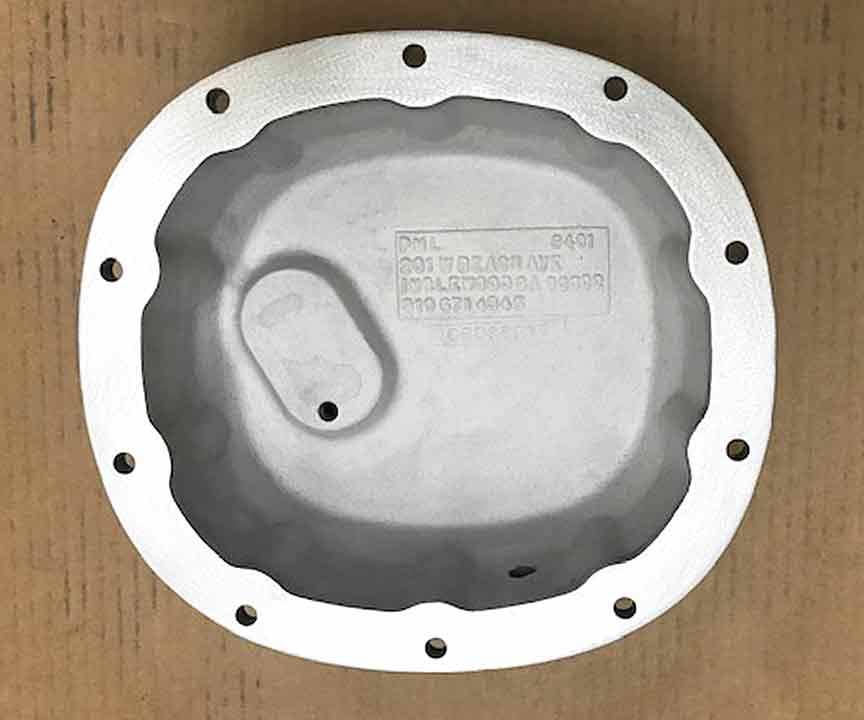

• Machined gasket flange for a secure seal

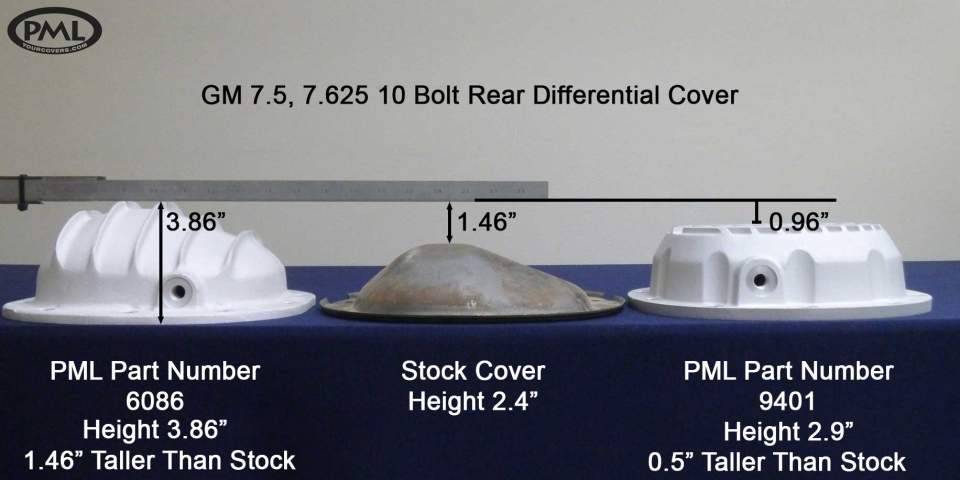

• Only 5/8 inch deeeper than stock cover

This PML diff cover fits the GM with 7.5 or 7.625 inch (7 1/2 or 7 5/8) ring gear 10 bolt differential. Configurations vary. Typical applications that may be able to use this cover include the following.

• Chevy Astro Van, 1982 to 2005
• Chevy Camaro, 1993 to 2002
• Chevy S10, 1983 to 2004
• Chevy S10 Blazer, 1983 to 2004

• GMC Jimmy, 1984 to 2004
• GMC S15, 1983 to 1994
• GMC Safari Van, 1982 to 2005
• GMC Sonoma, 1991 to 2004
• GMC Typhoon

• Pontiac Firebird, 1993 to 2002

Some Mazda trucks

Configurations vary. Always check your vehicle to verify the differential and clearance.

Bolt Information: GM has used four different bolts on these differentials.

Brackets and Cables: Some vehicles have brackets or cables on or near the stock cover. PML does not have any information on modifying these to work with our larger cover. Such modifications are the responsibility of the installation.

Optional Machining For Temperature Sending Unit

This cover has thick pad that allows for machining for an aftermarket temperature sensor sending unit. This would be on the face of the cover. There is a machining charge for PML to drill and tap the hole.
