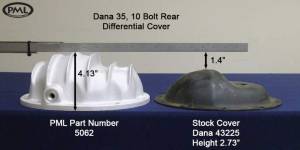

5062-AC | PML Covers DANA 35 Differential Cover For Jeep YJ Wrangler, TJ Wrangler, XJ Cherokee & Wagoneer, ZJ Grand Cherokee & WJ Grand Cherokee | Natural As Cast Finish

Cover includes magnetic drain plug, fill/level check hole plug and mounting hardware.

Volume:

0.5 quarts over stock

Dimensions:

Depth is 3.5 inches inside.

Number of Bolts:

10

The design of the PML Dana 35 differential cover works with a variety of applications.

Benefits:

• Extra capacity
• Fins and cast aluminum construction for cooling
• Thick walls
• Drain hole and magnetic plug to simplify maintenance

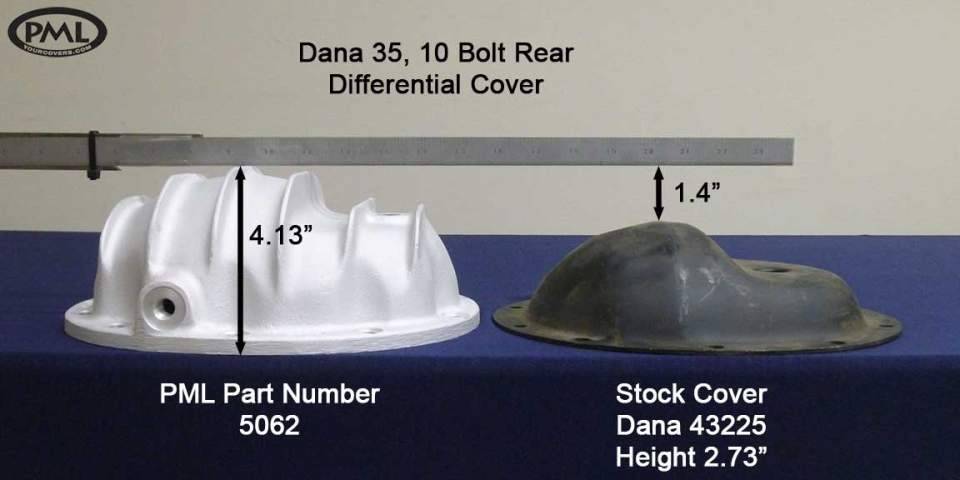

• Follows stock cover profile

Installation

This PML differential cover for the Dana 35 was installed on a 1999 Grand Cherokee 4.0 4x4 WJ. The sway bar was a bit too close to the larger PML cover, so the mechanic fabricated and installed a 0.125 (1/8 inch) spacer on the sides where the sway bar connects.

Also installed on this WJ: PML transmission pan part number 9862 and front differential cover part number 5058

Spacers for Sway Bars

Some sway bars do not allow enough space for a larger, aftermarket differential cover. It may be possible to use a spacer for the sway bar to increase clearance.

If you need spacers, one of our customers with a Grand Cherokee has recommended these: Iron Rock Offroad 1 Inch Sway Bar Spacers. (Thanks Ross!)

Installer must verify fit and function. Information for reference only.

Drain and Fill/Level Check

This PML differential cover has a drain hole on the bottom and a fill hole on the front. A magnetic drain plug, a plug for the fill hole, and mounting bolts are included.

This cover does not have a location for machining for a temperature sending unit.

Inside of PML Cover

PML Dana 35 rear differential cover has an open interior and the shape is simlar to the shape of the OEM cover. The flange sealing surface is large and machined flat for a secure seal to the housing.
