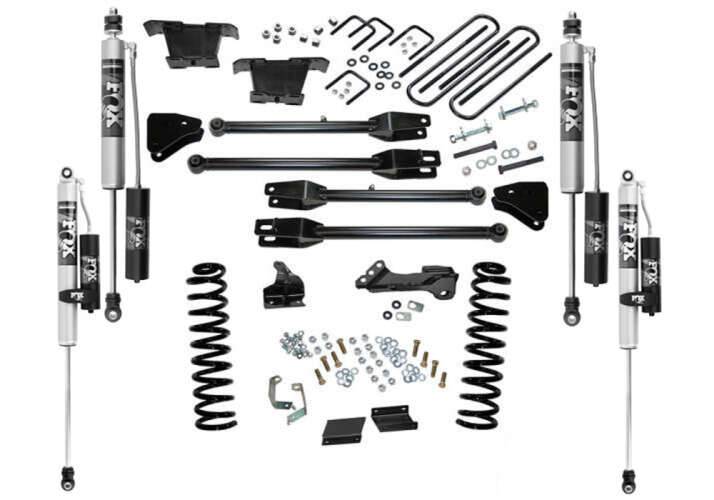

K236FX | Superlift 4 Inch Lift Kit with 4 Link Conversion and Fox Reservoir Shocks (F250, F350 Super Duty 4WD - Diesel Engine)

4" Lift Kit w/ FOX 2.0 Reservoir Shocks - 2011-2016 F250/350 4WD Dsl w/ 4-Link Arms

Superlift Suspension Systems now available with Superlift Shocks OR Bilstein Shocks OR Fox® Shocks:

This 4” Lift for the 2011-2016 Ford Super Duty F-250 | F-350 4WD features Superlift’s precision engineered, heavy-duty tubular 4-LINK arms designed to give your ride a truly custom look and easy install.  These heavy-duty 4-LINK arms utilize a press-fit REFLEX bushing for superior vibration dampening, flexibility, and durability.

The 4-LINK design optimizes the F-250 and F-350’s suspension control and tire wear by limiting caster change through the cycle of suspension.  The 4” lift also contains new, diesel specific rate front coil springs.  A new track bar relocation bracket to ensure proper steering geometry and track bar phasing.

The rear lift is achieved with a new designed fabricated rear block that allows the removal of the stock block.  This fabricated block also allows for proper pinion and axle angle all while reducing axle wrap. Complete your 4-inch Ford F-250 | F-350 with the best variety of shocks on the market.  Shocks for this kit are available in the following: Superlift Shocks OR Bilstein Shocks OR Fox Performance Series 2.0 IFP Shocks.

Features:

• Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
• Replacement Heavy-Duty Tubular 4-LINK arms with Reflex bushings
• Track bar relocation bracket prevents stud bind and steering wheel kick
• Front and Rear – Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks
• Backed by our limited lifetime warranty

Benefits:

• Retains OEM caster and camber alignment specifications
• Maintains ride quality and handling characteristics
• Designed using Original Equipment (OE) CAD data for accuracy

NOTES:

• If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required.  Part # 9649
• For Super duty’s equipped with the 1-7/8” blocks and top overloads, Part # 11724 will need to be purchased in addition to the lift kit
