K1068F | Superlift 4 Inch 4-Link Lift Kit with Fox 2.0 Shocks (F250, F350 Super Duty 4WD Diesel Engine)

4in Ford Lift Kit | 4-Link Kit - Diesel

This 4” 4-Link Lift for the 2023-24 Ford Super Duty F-250 and F-350 4WD is achieved via engine specific coil springs to ensure the proper lift height and maintain factory ride quality. On-vehicle adjustable 4 link conversion allows fine tuning of the Superduty’s caster angle/alignment.  Other Components included with the 4” system is: front compression travel-stop relocation brackets, track bar relocation bracket, and a steering stabilizer bracket.  The rear lift is achieved with an HD fabricated rear block that allows the removal of the stock block.  This fabricated block also allows for proper pinion and axle angle all while reducing axle wrap. Complete your 4-inch Ford F-250 | F-350 with the best variety of shocks on the market.  Shocks for this kit are Fox Performance Series 2.0 IFP Shocks

Features:

• HD ¼ wall DOM tubing 4 Link Conversion
• On-Vehicle adjustable link arms
• Engine specific coil springs
• Multiple shock options to choose from
• Front and Rear – FOX 2.0 Shocks

Benefits:

• 4 Link Conversion allows caster adjustment
• Specifically tuned coil springs provide better than stock ride quality
• Clears 37” tall tires

NOTES: Additional Fitments

• If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9649
• If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11724

What does it include?

• This is a complete coil spring suspension Lift Kit for the 2023-2024 Ford F-250/F-350 4WD – diesel engine
• Provides 4” lift height

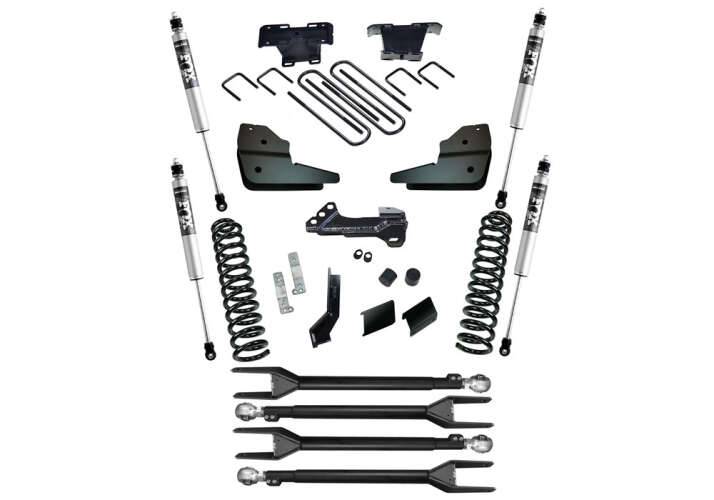

• Includes coil springs, track bar bracket, sway bar brackets, 4 Link Conversion, rear blocks, and front and rear Superlift, Bilstein, FOX, or King shocks.
