K1029 | Superlift 5 Inch Lift Kit (2021-2024 Bronco 4 Door with Sasquatch)

2021-2024 Ford Bronco 4 Door With Sasquatch Package

K1029
Pricing: $2,309.99
Qty:
Free Ground Shipping | Exclusions Apply*

Description

5 in Ford Lift Kit - 21-24 Bronco 4Dr w/ Sasquach Package

Superlift’s 5 Inch Lift kit for the 2021-2024 Ford Bronco is intentionally over-built to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others kits do not offer.

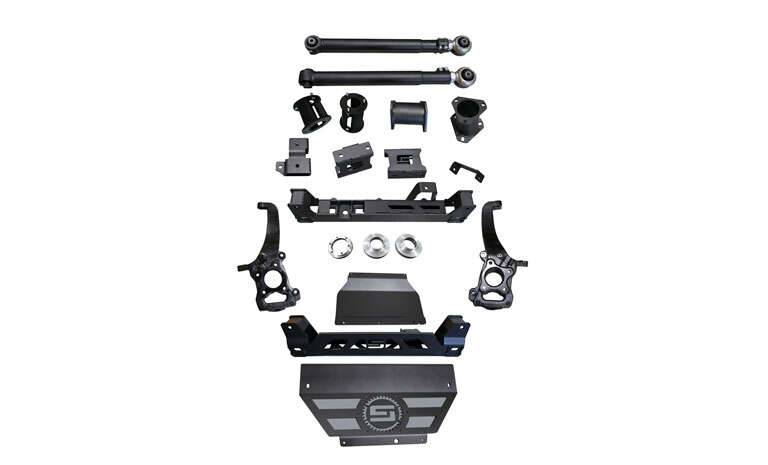

This kit features CNC machined steering knuckles, HD ¼” plate crossmembers, and a front skid plate with the Superlift “S” logo laser cut into the material for a modern look.   Another unique feature are the adjustable rear lower control arms. These control arms are on-vehicle adjustable and feature our dual durometer REFLEX bushing for quiet and maintenance free operation. Diff drops, strut spacers, sway bar correction, track bar bracket, and all other required parts are included to make sure your Bronco handles and performs just like a stock.

Like all Superlift kits, this 2021-2024 Ford Bronco 2 Door 5” lift kit come with our Limited Lifetime Warranty.

Features:

  • CNC Machines Steering Knuckles
  • HD, high clearance lower control arm crossmembers
  • Front skid plate and belly pan for complete differential protection
  • On-Vehicle Adjustable rear lower control arms
  • Lift achieved via strut spacers
  • Rear track bar bracket, optional adjustable track bar available.
  • Level Stance

Benefits:

  • Stock ride quality
  • Maintains OEM alignment specs
  • Allows for 37” tires
  • OEM Beadlock wheels will work.

NOTES: Additional Fitments

  • Does not fit Wildtrak and First Edition

Application List

Start End Make Model Sub Model Doors
2021 2024 Ford Bronco Badlands 4 Door
2021 2023 Ford Bronco Base 4 Door
2021 2024 Ford Bronco Big Bend 4 Door
2021 2024 Ford Bronco Black Dimaond 4 Door
2022 2024 Ford Bronco Everglades 4 Door
2023 2024 Ford Bronco Heritage Edition 4 Door
2023 2024 Ford Bronco Heritage Limited Edition 4 Door
2021 2024 Ford Bronco Outer Banks 4 Door

Tires & Wheels

Tire Wheel Offset (MM)
37x12.50R17 17x8.5 0 to -12
37x12.50R17 17x9 0 to -12
40x12.50R17 17x9 0 to -12
40x13.50R17 17x9 0 to -12


IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 274.0 lbs.
  • W40.0000” x H24.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
