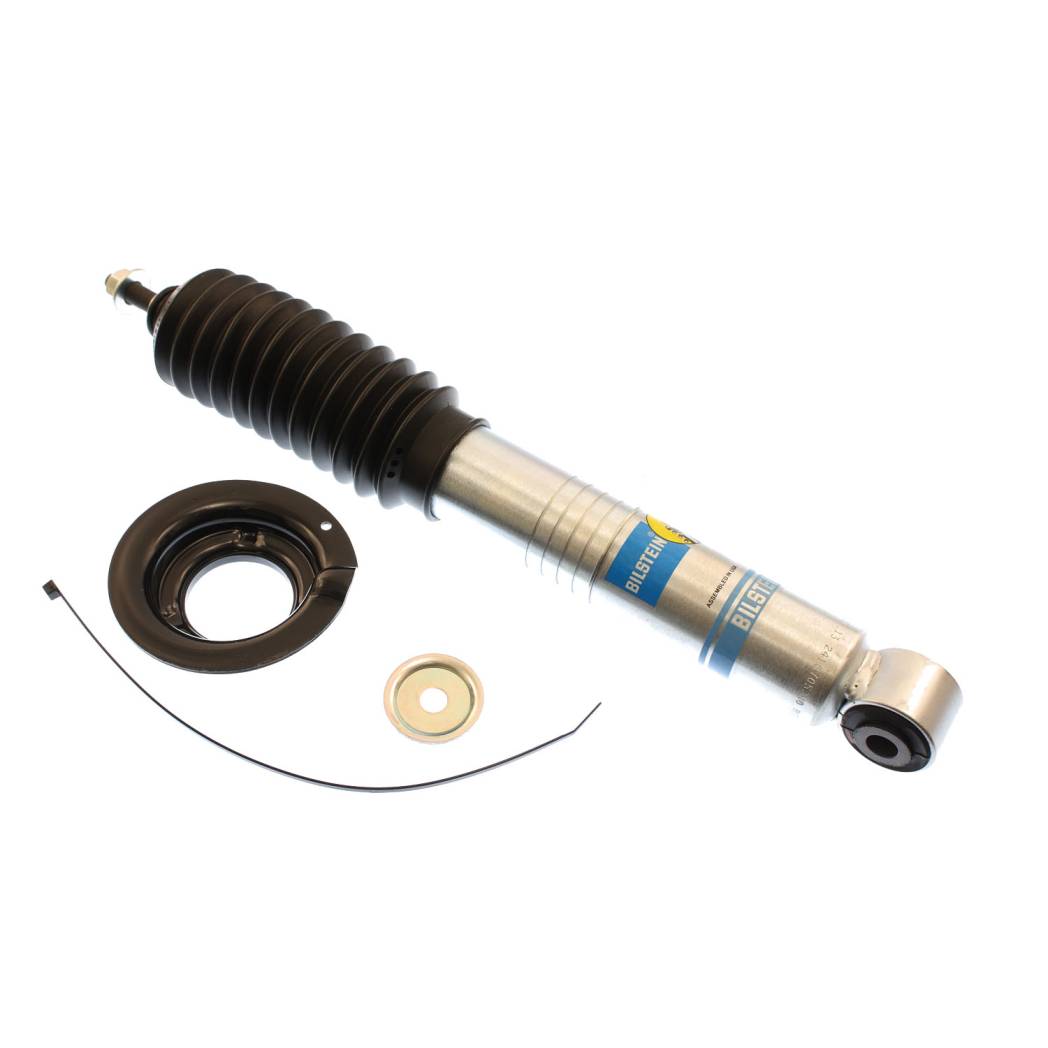

24-336888 | Bilstein B8 5100 Front 0-2.1 Inch Ride Height Adjustable Strut (Ford F150 2WD)

2014 Ford F150 Pickup 2WD

24-336888
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $235.20
Qty:

Description

24-336888 | Bilstein B8 5100 Front 0-2.1 Inch Ride Height Adjustable Strut (Ford F150 2WD)

The perfect height.
Designed to level out the front of half-ton trucks and SUVs, the
BILSTEIN B8 5100 (Ride Height Adjustable) is the perfect alternative to coil spring spacers. Lose no time on the trail — these shock
absorbers use your vehicle’s OEM coilover springs and mounting
hardware for an easy, direct-fit installation.

Features & benefits:
• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of

BILSTEIN monotube technology:
• Adjustable spring perch for vehicle lift up to 2.1in
• Increases suspension travel
• Utilizes vehicle’s stock front coil springs and OEM upper mount
• Vehicle specifc tuning
• Made in the USA
• Limited Lifetime Warranty

Specifications:
  • Collapsed Length (in) :16.05
  • Extended Length (in) :21.34
  • Collapsed Length (mm) :407.6
  • Extended Length (mm) :542.1
  • Stroke/travel Length (in) :5.29
  • Lower Mount Type :Crossbar
  • Upper Mount Type :Stem
  • Internal Design :Monotube
  • Finish :Zinc Plated
  • Reservoir :No
  • Body Design :Snap Ring Grooved Body (Coilover)
  • Body Diameter (od) :2.0 in.
  • Piston Diameter :46mm
  • Boot Included :No
  • Spring Seat Included :Yes
  • Shaft Diameter :18mm
  • Adjustable Damping :Non-Adjustable

Application List

2014 Ford F150 Pickup 2WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 15.0 lbs.
  • W4.1500” x H4.1500” x L26.8000”
  • Free Ground Shipping Unavailable | This Product Does Not Qualify*
