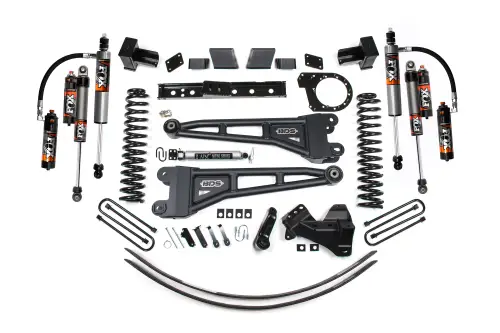

BDS2217FPE | BDS Suspension 7 Inch Lift Kit With Radius Arms For Ford F-350 Super Duty DRW 4WD Diesel | Fox 2.5 Performance Elite Shocks

For 2020-2022 Ford F-350 Super Duty 4WD Diesel

BDS2217FPE
Pricing: $7,383.83
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Take your Ford F350 Dually "DRW" Super Duty diesel truck to the next level with this 7-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 38 x 13.5 with 20 x 9 and 5 in. Backspace
  • 38 x 13.5 with 20 x 10 and 5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Important Notes

  1. Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final right height will be the same as standard models.
  2. Dually Models Only
  3. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  4. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
  5. 38 x 13.50 tires may require minor trimming.
  6. The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.

Installation

Est. Install Time :

6-8 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

30mm Socket, Basic Hand Tools, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller, Reciprocating Saw

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 6
  • Rear Lift Method : Block
  • Rear Lift Height : 5"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2020FordF-350 Super DutyLimited4WDDIESEL
2020FordF-250 Super DutyALL4WDDIESEL
2020FordF-350 Super DutyXL4WDDIESEL
2020FordF-350 Super DutyKing Ranch4WDDIESEL
2020FordF-350 Super DutyPlatinum4WDDIESEL
2020FordF-350 Super DutyXLT4WDDIESEL
2020FordF-350 Super DutyLariat4WDDIESEL
2021FordF-250 Super DutyALL4WDDIESEL
2021FordF-350 Super DutyXLT4WDDIESEL
2021FordF-350 Super DutyPlatinum4WDDIESEL
2021FordF-350 Super DutyLimited4WDDIESEL
2021FordF-350 Super DutyKing Ranch4WDDIESEL
2021FordF-350 Super DutyLariat4WDDIESEL
2021FordF-350 Super DutyXL4WDDIESEL
2022FordF-350 Super DutyXLT4WDDIESEL
2022FordF-350 Super DutyLimited4WDDIESEL
2022FordF-250 Super DutyALL4WDDIESEL
2022FordF-350 Super DutyKing Ranch4WDDIESEL
2022FordF-350 Super DutyLariat4WDDIESEL
2022FordF-350 Super DutyPlatinum4WDDIESEL
2022FordF-350 Super DutyXL4WDDIESEL

Components List

1 BDS013526 17-20 F350 Dually 5" Block Kit
1 BDS013603 2020-2022 F250/F350 6in RA Front Box Suspension System
1 BDS033611 Coil Springs | 6 Inch Lift | Ford F250/F350 Super Duty (05-25) 4WD | Diesel
1 BDS123251 Radius Arm Upgrade | Ford F250 / F350 Super Duty (05-22) 4WD
1 BDS123605 Transfer Case Indexing Ring | Fits 6 Inch Lift | Ford F250/F350 Super Duty (17-25) 4WD
1 BDS85431 NX2 Steering Stabilizer Shock - Single | Ford F250/F350 Super Duty (17-25) 4WD
1 FOX88326099 FOX 2.5 Reservoir Front Shocks Adjustable | Performance Elite | 4-6 Inch Lift | Ford F250/F350 Superduty (17-25)
1 FOX88326100 FOX 2.5 Remote Reservoir Rear Shocks - DSC | 4-6 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-25) 4WD

Tires & Wheels

(Trimming may be required)
38 x 13.5 with 20 x 9 and 5 in. Backspace
38 x 13.5 with 20 x 10 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
