BDS2114PSS | BDS Suspension 6 Inch Lift Kit For Ram 1500 4WD | Fox 2.5 Performance Elite Coil-Over, Rear Fox 2.0 Performance Series Shocks, OE Knuckle Type Standard
For 2025-2026 Ram 1500
Description
Hit the trails in your 2025-2026 RAM 1500 truck after installing our coil-over suspension lift kit featuring FOX 2.5 Performance Elite Coil-over shocks by BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with a set of FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Features & Benefits
- Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
- The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
- High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance.
- HD skid plate system improved offroad protection Multipoint differential relocation brackets to secure the front axle and improve CV angles.
- FOX performance series IFP gas rear shocks to improved ride and offroad performance.
- Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Rear Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
OE Knuckle Type
RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
Important Notes
- Fits 4WD models only.
- Fits models with 3.0L Hurricane I6 engines and models with 3.6L V6 engines.
- RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
- Will NOT fit adjustable "air ride" suspension equipped models.
- Stock 18" wheels cannot be reinstalled due to steering interference.
- Stock 20s and 22s can be reinstalled with factory tire size.
- Will NOT work on diesel models.
- Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines mounted as circled in image below.
- Disconnect BOTH batteries (if equipped), Main and Auxilary before performing install, more detail in instructions.
- Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance. Sold separately.
- IF USING 18IN AFTERMARKET WHEELS WITH 4.5IN BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE
Installation
Est. Install Time :
8-10 hrsDifficulty Level :
ModerateSpecialty Tools Needed :
Reciprocating Saw
Specification
- Front Lift Method : Coil-Over
- Front Lift Height : 6
- Rear Lift Method : Coil Spring
- Rear Lift Height : 5"
- Shocks Included : Yes
- Lift Height : 6-7.5"
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2025 | Ram | 1500 | Limited | 4WD | GAS | Front and Rear | 6" |
| 2025 | Ram | 1500 | Big Horn | 4WD | ALL | Front and Rear | 6" |
| 2025 | Ram | 1500 | Tradesman | 4WD | ALL | Front and Rear | 6" |
| 2025 | Ram | 1500 | Lone Star | 4WD | ALL | Front and Rear | 6" |
| 2025 | Ram | 1500 | Limited Longhorn | 4WD | GAS | Front and Rear | 6" |
| 2025 | Ram | 1500 | Laramie | 4WD | GAS | Front and Rear | 6" |
| 2025 | Ram | 1500 | Laramie Sport | 4WD | GAS | Front and Rear | 6" |
| 2025 | Ram | 1500 | RHO | 4WD | GAS | Front and Rear | 6" |
| 2025 | Ram | 1500 | Warlock | 4WD | GAS | Front and Rear | 6" |
| 2025 | Ram | 1500 | Special Service | 4WD | ALL | Front and Rear | 6" |
| 2025 | Ram | 1500 | Tungsten | 4WD | GAS | Front and Rear | 6" |
| 2025 | Ram | 1500 | Big Horn OffRoad | 4WD | MILD HYBRID EV-GAS (MHEV) | Front and Rear | 6" |
| 2025 | Ram | 1500 | Sport | 4WD | ALL | Front and Rear | 6" |

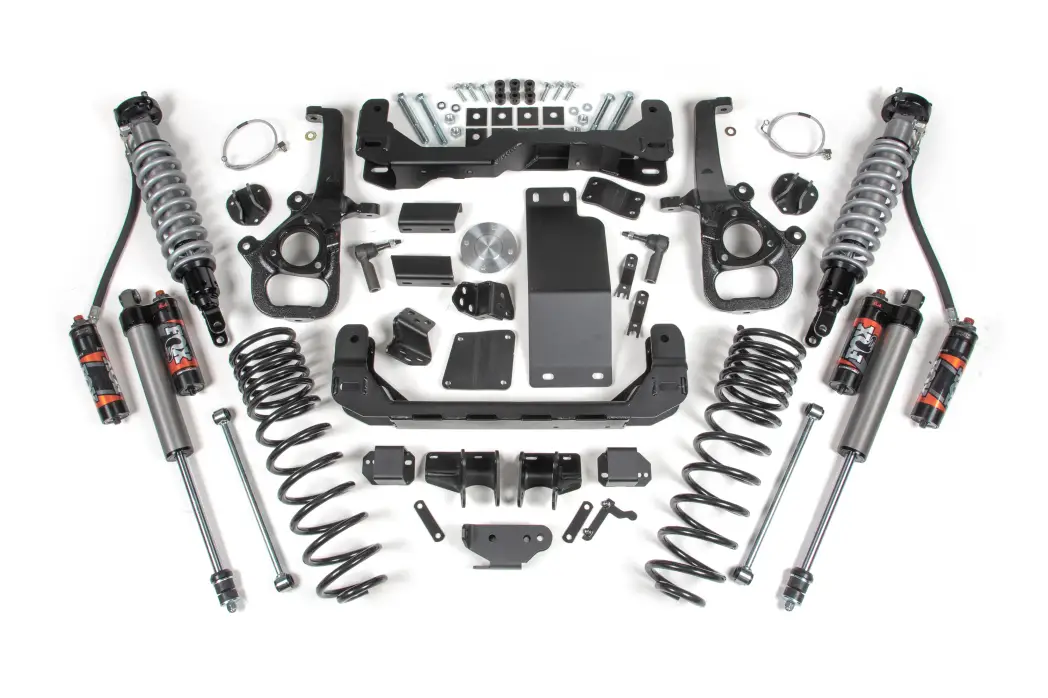

Component List
1 BDS022661 2025 Ram 1500 Knuckle Box Kit - PASS - Standard Bore
1 BDS022642 2019-2022 Ram Front Box Kit 1 of 2
1 BDS022644 2025-2026 Ram 1500 Front Box Kit 2 of 2
1 BDS022508 2019-2022 Ram 1500 Rear Box Kit
1 BDS032508 2019-2026 Ram 1500 5" Rear Coil Box Kit
1 FOX88406335 FOX 2.5 Coil-Over Shocks w/ DSC Reservoir Adjuster | 6 Inch Lift | Performance Elite Series | Ram 1500 (19-26) 4WD
2 FOX98224751 FOX 2.0 IFP Shock | Performance Series | 29.85 x 18.25 x 2- S50/EB1
1 BDS122633 2025-2026 Ram 1500 - 6" PES Coil over Mounting Kit
Tires & Wheels
37 x 12.5 with 18 x 9 and 4.5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace
