42-14012 | AFE Power DFS780 Fuel System - Boost Activated (GM Diesel V8-6.6L td)

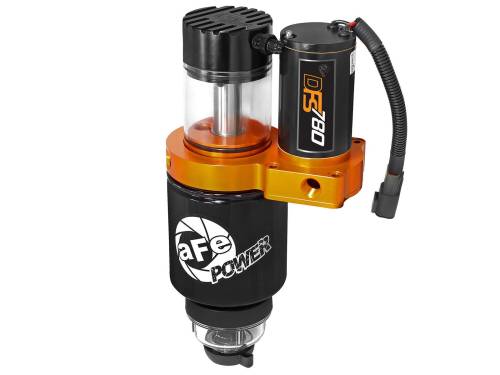

DFS780 Fuel System - Boost Activated

Allows vehicle to bypass the DFS780 pump under light loads, reducing wear & tear on the DFS780. Also allows engine to run even if the DFS780 unit were to fail.

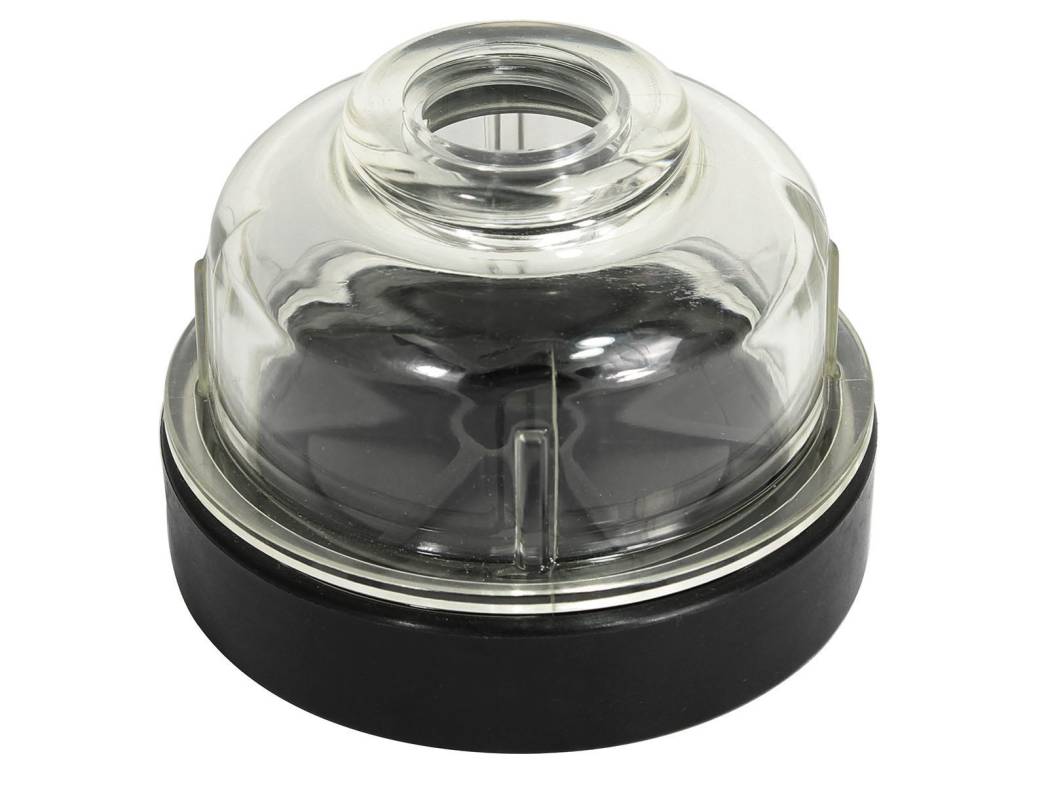

Clear High-Impact Polycarbonate Sight Glass:
Allows visual inspection of fuel.

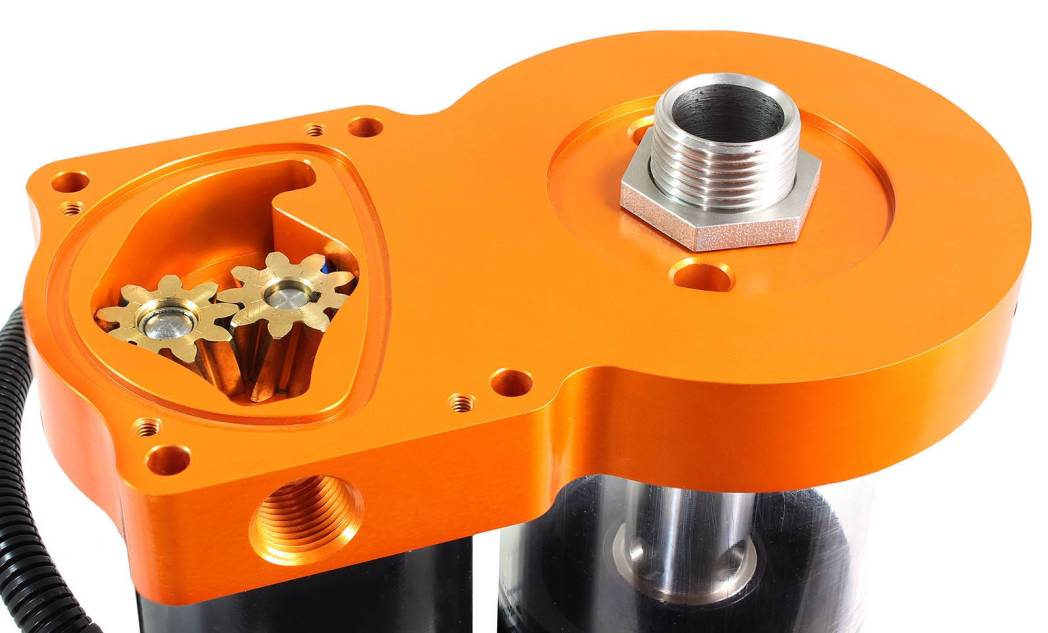

Helical Bronze Spur Gears:
Bronze gears more forgiving of contaminants than steel gears. The helical spur gear design runs quieter than straight cut gears.

Billet 6061-T6 Aluminum Manifold:
Eliminates porosity concerns with cast aluminum.

"Marine Grade" Motor:
Protected against dust intrusion and powerful water jets.

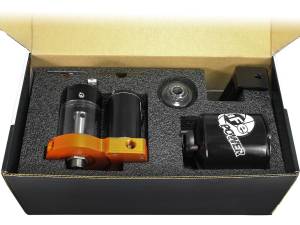

Plug & Play Installation:
Supplied harness attaches directly to battery and utilizes Deutsch weather-proof connectors. No cutting or modifications of the stock fuel lines required.  Vehicle can easily be returned to stock.

Boost Activated Pump Engagement:
Supplied preset boost switch activates pump only under load, reducing wear & tear on the DFS780.

PEEK Bearing Wear Surfaces:
The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear.

Contoured CNC Machining Of Manifold Passages:
Enhances flow through the manifold to reduce pressure drop due to flow restrictions.

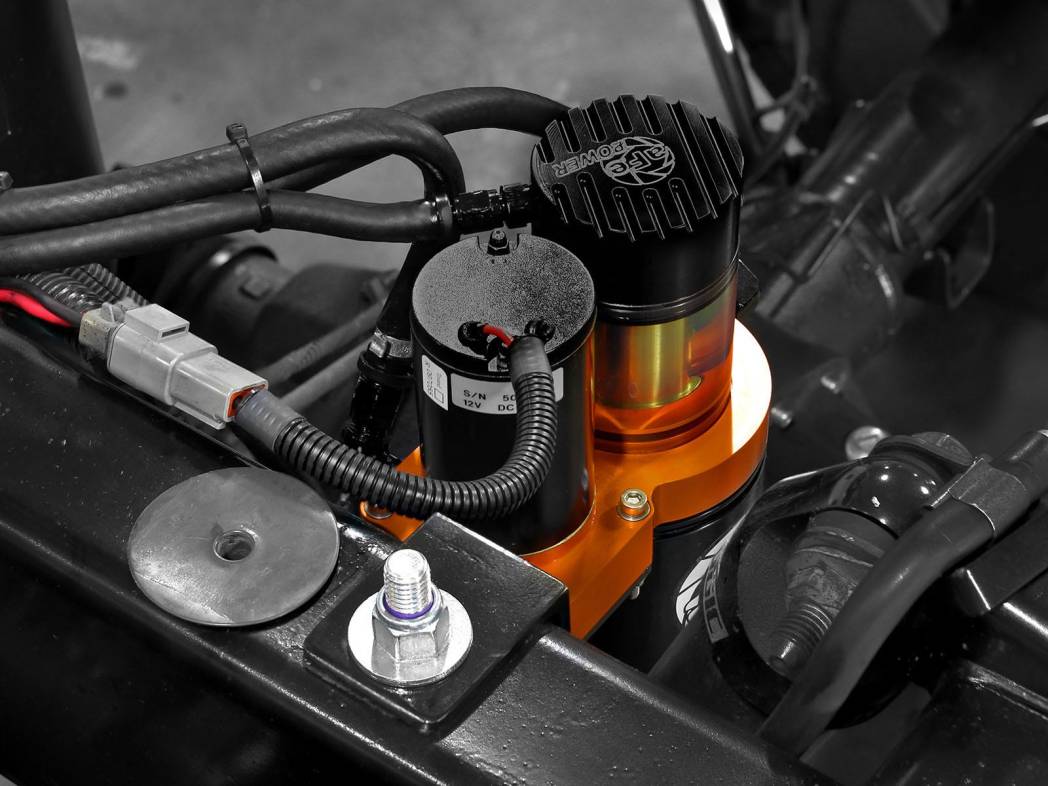

Direct Bolt-on Steel Mounting Bracket:
Heavy duty bracket mounts to the frame and utilizes existing hole to secure.

Fuel Pressure Gauge Port:
1/8" NPT port allows customer to attach an external pressure gauge to monitor fuel pressure.

O.E Quality Viton Seals:
Compatible with diesel and biodiesel fuels.

Emissions Disclaimer:
Some or all of the applications listed are 50-state exempt, please see CARB EO# D-550-37 for details.
